Belle Compact X - Water Bottle Kit

Name: Belle Compact X - Water Bottle Kit
SKU: CompactXWaterBottleKit-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

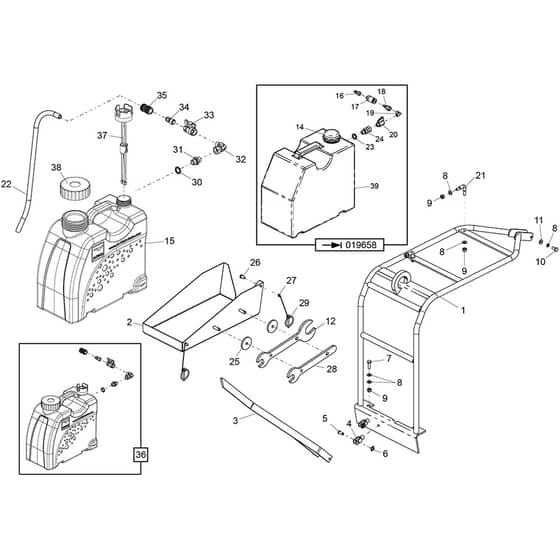

Belle Compact X - Water Bottle Kit - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	BE135/02100 Available to backorder	[1] - Engine Frame Wa	£274.92 £229.10
2	BE135/01800 Available to backorder	[2] - Bottle Carrier Wa	£182.04 £151.70
3	BE88.0.033 Available to backorder	[3] - Pointer Guide	£143.38 £119.48
4	BE21.0.108 Available to backorder	[4] - Clevis	£6.82 £5.68
5	BE21.0.109 Available to backorder	[5] - Pin	£3.76 £3.13
6	BE21.0.110 Available to backorder	[6] - Clip	£1.96 £1.63
7	BE7/8012 Available to backorder	[7] - Screw	£0.48 £0.40
8	BE4/8003 Available to backorder	[8] - Washer M8	£0.71 £0.59
9	BE8/8008 Available to backorder	[9] - Nut	£0.48 £0.40
10	BE7/8008 Available to backorder	[10] - Screw	£0.48 £0.40
11	BE4/8006 Available to backorder	[11] - Washer M8	£0.48 £0.40
12	BE135/01500 Available to backorder	[12] - Compact Spanner	£59.28 £49.40
14	BE87.2.074 Available to backorder	[14] - Cap - 64mm Black Te Vented	£7.96 £6.63
15	BE135.0.035BL Available to backorder	[15] - Compact/Duo Water Tank Black Black From 83980	£172.38 £143.65
15	BE135.0.035S Available to backorder	[15] - Bare Bottle 25Ltr Errut Orange Orange From 83980	£172.38 £143.65

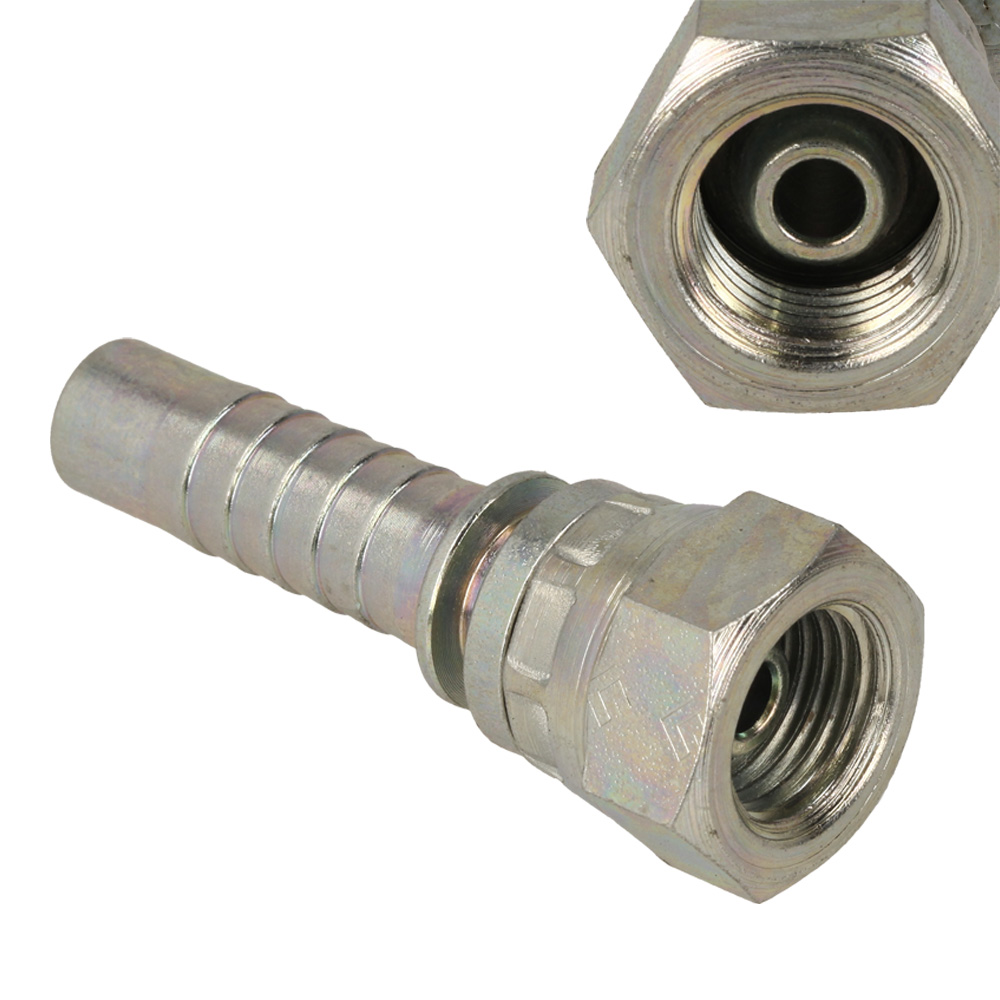

16	BE14.0.589 Available to backorder	[16] - Hosetail 1/4"Bsp F/3/8" Hose B	£11.64 £9.70
17	BE14.0.590 Available to backorder	[17] - 1/4"Bsp Quick Coupling Body	£48.20 £40.17
18	BE14.0.591 Available to backorder	[18] - Female Nipple	£22.92 £19.10
19	BE14.0.228 Available to backorder	[19] - Elbow	£10.86 £9.05
20	BE15.9.025 Available to backorder	[20] - Ball Valve 1/4"Bsp M/F	£15.72 £13.10
21	BE135.0.025 Available to backorder	[21] - Pivot Pin	£66.02 £55.02
22	BE14.0.841 Available to backorder	[22] - Hose 3/8" Blck Reinforced Pvc	£6.82 £5.68
23	BE5/0011 Available to backorder	[23] - Seal Bonded 1/4" Bsp	£1.34 £1.12
24	BE6/0196 Available to backorder	[24] - Adapter 1/4M x1/4F Bsp	£8.08 £6.73
25	BE135/01804 Available to backorder	[25] - Rubber Washer	£4.12 £3.43
26	BE7/8049 Available to backorder	[26] - Screw	£0.48 £0.40
27	BE914/25303 Available to backorder	[27] - Cable Retaining	£22.08 £18.40
28	BE135.0.145 Available to backorder	[28] - Arbor Shaft Spanner	£37.62 £31.35
29	BE3/1018 Available to backorder	[29] - Lynch Pin ( 4 x 45 )	£2.38 £1.98
30	BE5/0002 Available to backorder	[30] - Seal Bonded 1/2" Bsp	£0.48 £0.40
31	BE6/0020 Available to backorder	[31] - Adaptor-1/2 x 1/2 Bsp M/M.	£2.06 £1.72
32	BE6/0263 Available to backorder	[32] - 1/2"Bsp F Hose Tap Connector	£32.46 £27.05
33	BE6/0238 Available to backorder	[33] - 1/2" Bsp Fxf Mini Ball Valve	£12.36 £10.30
34	BE6/0264 Available to backorder	[34] - 1/2"Bsp F Brass	£32.46 £27.05
35	BE6/0262 Available to backorder	[35] - Quick Release Hose Coupling	£61.74 £51.45
36	BE135.3.006 Available to backorder	[36] - Water Bottle Assembly New Style Orange Two Cap Tank & Fittings	£328.80 £274.00
36	BE135.3.004 Available to backorder	[36] - Water Bottle + Spray Assy Comp Now Use - 135.3.006	£265.80 £221.50
37	BE41/00020 Available to backorder	[37] - Gauge Water Level Indicator From 83980	£63.82 £53.18
38	BE72/0028 Available to backorder	[38] - Water Bottle Cap + Chain Assy From 83980	£33.80 £28.17
39	BE135/03300 Available to backorder	[39] - Water Tank Spares Kit Up To 83979	£264.36 £220.30
