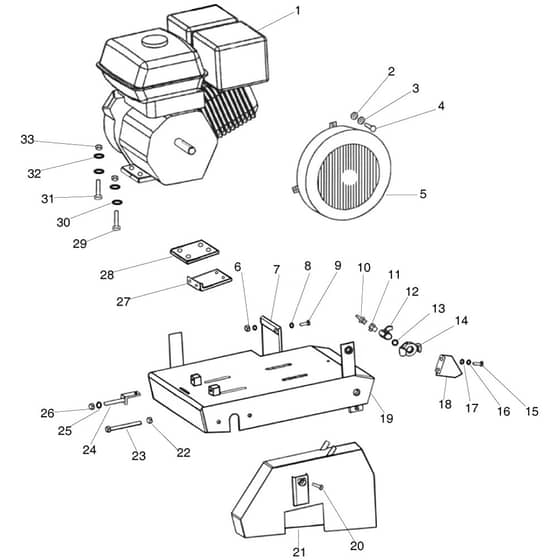

Belle Compact Saw - Main Assembly - Parts Diagram

	Part No.	Details
0	BE19.0.366 Available to backorder	[-] - Label Speed 3600 R.P.M	£2.03 £1.69
0	BE135.0.086 Available to backorder	[-] - Decal - Compact	£13.91 £11.59
0	BE19.0.373 Available to backorder	[-] - 4 In 1 Label	£0.40 £0.33
0	BE800/99867 Available to backorder	[-] - Warning Label Dry Cut Dust	£24.48 £20.40
0	BE19.2.016 Available to backorder	[-] - Serial Number Plate	£3.35 £2.79
1	BE29.1.427 Available to backorder	[1] - 15 Hp Kohler Engine Command 15	£2,457.22 £2,047.68
1	BE29.0.603 Available to backorder	[1] - 7.0Hp Yanmar L70 Aed	£2,877.70 £2,398.08
1	BE29.1.402 Available to backorder	[1] - 11 Hp Kohler Engine Command 11	£1,681.92 £1,401.60
1	BE29.1.244 Available to backorder	[1] - 8.5 Hp Robin Diesel Dy42 Dur	£3,527.42 £2,939.52
6	BE8/8008 Available to backorder	[6] - Nut	£0.48 £0.40
7	BE135.0.019 Available to backorder	[7] - Water Flap	£58.40 £48.67
9	BE7/8012 Available to backorder	[9] - Screw	£0.48 £0.40
10	BE14.0.591 Available to backorder	[10] - Female Nipple	£23.81 £19.84
11	BE14.0.503 Available to backorder	[11] - Brass Nipple 3/8" To 1/4" M/M	£13.80 £11.50
12	BE15.0.027 Available to backorder	[12] - Ball Valve 3/8"Bsp F/F - Lever	£43.60 £36.33
13	BE15.0.101 Available to backorder	[13] - Washer	£0.43 £0.36
14	BE19.1.019 Available to backorder	[14] - Coupling 3/8" Bsp Male Qdl	£24.02 £20.02
15	BE7/8011 Available to backorder	[15] - Screw	£0.48 £0.40
16	BE4/8006 Available to backorder	[16] - Washer M8	£0.48 £0.40
17	BE4/8003 Available to backorder	[17] - Washer M8	£0.71 £0.59
18	BE135.0.036 Available to backorder	[18] - Tilt Stop	£27.04 £22.53
19	BE135.0.062 Available to backorder	[19] - Main Body Petrol Honda	£405.95 £338.29
19	BE135.0.067 Available to backorder	[19] - Main Body Robin Diesel Robin	£698.11 £581.76
20	BE02.0.058 Available to backorder	[20] - Setscrew M16 x 25 Ht Bzp	£1.49 £1.24
21	BE135.0.001 Available to backorder	[21] - Blade Guard - Self Colour	£323.48 £269.57
24	BE02.0.089 Available to backorder	[24] - Setscrew M10 x 100 Ht Bzp Kohler & Robin	£1.16 £0.97
24	BE135.0.014 Available to backorder	[24] - Engine Puller Honda & Yanmar	£82.80 £69.00
26	BE8/10006 Available to backorder	[26] - Nut	£0.48 £0.40
27	BE135.0.071 Available to backorder	[27] - Pusher / Bedplate R/Diesel Robin	£49.39 £41.16
27	BE135.0.051 Available to backorder	[27] - Bedplate Kohler Kohler	£97.44 £81.20
28	BE135.0.072 Available to backorder	[28] - Vibration Pad Robin Diesel Robin	£104.64 £87.20
29	BE9/10007 Available to backorder	[29] - Bolt	£0.62 £0.52
30	BE4/1005 Available to backorder	[30] - Washer M10	£0.48 £0.40
31	BE00.0.034 Available to backorder	[31] - Bolt M10 x 45 Ht Bzp	£0.48 £0.40
32	BE4/1003 Available to backorder	[32] - Washer M10	£0.48 £0.40
33	BE8/10003 Available to backorder	[33] - Nut	£0.48 £0.40
