Belle Compact Saw - Lifting Assembly

Name: Belle Compact Saw - Lifting Assembly
SKU: CompactSawLifting-group
Price: 0.36 GBP
Availability: InStock

Part No. CompactSawLifting-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

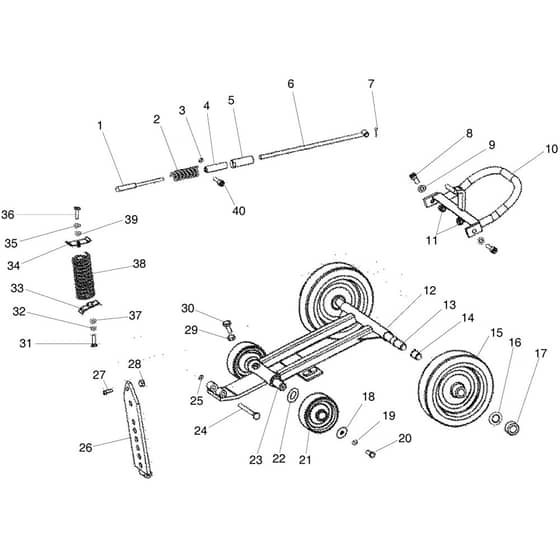

Belle Compact Saw - Lifting Assembly - Parts Diagram

	Part No.	Details
1	BE135.0.023 Available to backorder	[1] - Plunger	£28.60 £23.83
2	BE19.0.079 Available to backorder	[2] - Spring - Entex 83	£13.16 £10.97
3	BE8/4005 Available to backorder	[3] - Nut	£0.48 £0.40
4	BE135.0.040 Available to backorder	[4] - Adjusting Bar-Painted	£32.26 £26.88
5	BE135.0.041 Available to backorder	[5] - Thread Cover - Painted	£21.79 £18.16
6	BE135.0.039 Available to backorder	[6] - Connecting Rod	£38.81 £32.34
7	BE06.5.001 Available to backorder	[7] - Split Pin 1/8" x 3/4"	£0.89 £0.74
8	BE7/1004 Available to backorder	[8] - Screw	£0.58 £0.48
9	BE4/1005 Available to backorder	[9] - Washer M10	£0.48 £0.40
10	BE135.0.007 Available to backorder	[10] - Foot Treadle	£145.32 £121.10
12	BE135.0.061 Available to backorder	[12] - Subframe	£244.56 £203.80
13	BE135.0.015 Available to backorder	[13] - Rear Axle	£25.74 £21.45
14	BE12.1.261 Available to backorder	[14] - Glacier Bush Mb 2020 Du	£4.55 £3.79
15	BE19.0.565 Available to backorder	[15] - Wheel-200 Od x 20mm Bore	£136.56 £113.80
17	BE21.0.092 Available to backorder	[17] - Shaft Collar 20mm	£8.94 £7.45
18	BE05.3.062 Available to backorder	[18] - Washer	£2.14 £1.78
20	BE7/8011 Available to backorder	[20] - Screw	£0.48 £0.40
21	BE19.0.581 Available to backorder	[21] - Wheel 100mm	£123.84 £103.20
22	BE05.0.030 Available to backorder	[22] - Washer M20 Form A Bzp M20	£0.48 £0.40
23	BE135.0.013 Available to backorder	[23] - Eccentric Front Axle	£54.56 £45.47
24	BE00.0.042 Available to backorder	[24] - Bolt M10 x 90 Ht Bzp	£0.85 £0.71
25	BE8/10006 Available to backorder	[25] - Nut	£0.48 £0.40
26	BE135.0.060 Available to backorder	[26] - Depth Control Plate	£130.56 £108.80
27	BE7/6003 Available to backorder	[27] - Screw	£0.48 £0.40
28	BE01.0.003 Available to backorder	[28] - Nut M6 Ht Bzp	£0.48 £0.40
29	BE8/10003 Available to backorder	[29] - Nut	£0.48 £0.40
30	BE7/10005 Available to backorder	[30] - Screw	£0.43 £0.36
31	BE7/8012 Available to backorder	[31] - Screw	£0.48 £0.40
33	BE135.0.018 Available to backorder	[33] - Spring Clamp (Bottom)	£28.57 £23.81
34	BE135.0.017 Available to backorder	[34] - Spring Clamp (Top)	£17.15 £14.29
35	BE4/8003 Available to backorder	[35] - Washer M8	£0.71 £0.59
36	BE7/8008 Available to backorder	[36] - Screw	£0.48 £0.40
38	BE19.0.078 Available to backorder	[38] - Spring - Comp Entex 239	£35.75 £29.79
39	BE4/8006 Available to backorder	[39] - Washer M8	£0.48 £0.40
40	BE00.0.163 Available to backorder	[40] - Bolt M4 x 25 Ht Bzp	£0.48 £0.40
