Belle CFS 600 - Main Assembly (Honda & Robin)

Name: Belle CFS 600 - Main Assembly (Honda & Robin)
SKU: CFS600MainRobin-group
Price: 19.14 GBP
Availability: InStock

Part No. CFS600MainRobin-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Belle CFS 600 - Main Assembly (Honda & Robin)

Description

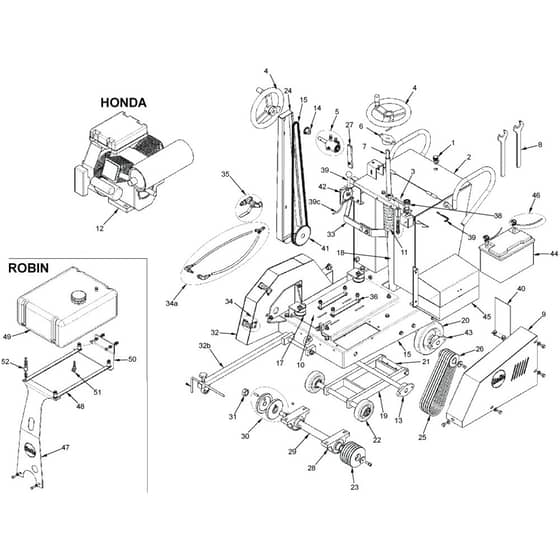

Belle CFS 600 - Main Assembly (Honda & Robin) - Parts Diagram

	Part No.	Details
1	BE173/99500 Available to backorder	[1] - Water Tank Lid Lock	£60.84 £50.70
2	BE173/99518 Available to backorder	[2] - Water Tank (Honda + Robin)	£2,097.79 £1,748.16
3	BE173/00100 Available to backorder	[3] - Depth Control Wheel Lock	£96.00 £80.00
4	BE173/99501 Available to backorder	[4] - Depth Control Wheel 250mm Dia	£272.52 £227.10
5	BE173/99520 Available to backorder	[5] - Bearing Bracket + Shaft	£204.84 £170.70
6	BE173/00102 Available to backorder	[6] - Depth Screw Support Bracket	£91.08 £75.90
7	BE173/99521 Available to backorder	[7] - Shaft	£214.56 £178.80
8	BE173/99503 Available to backorder	[8] - Flat Hexagonal Spanner	£101.28 £84.40
9	BE173/99522 Available to backorder	[9] - Belt Guard Honda 13Hp	£482.69 £402.24
9	BE173/99523 Available to backorder	[9] - Belt Guard Honda 20Hp & Robin	£372.67 £310.56
10	BE173/99526 Available to backorder	[10] - Bedplate(Honda 20Hp+Robin22Hp) Honda 20Hp & Robin 22Hp	£315.94 £263.28
10	BE173/99527 Available to backorder	[10] - Bedplate (Robin 13Hp +Hatz) Robin 13Hp & Hatz	£416.83 £347.36
10	BE173/99525 Available to backorder	[10] - Bedplate (Honda 13Hp) Honda 13Hp	£481.54 £401.28
11	BE173/99505 Available to backorder	[11] - Black Rubber Bellow	£91.20 £76.00
12	BE29.1.247 Available to backorder	[12] - 13 Hp Robin Engine Eh41 Duoa	£1,430.78 £1,192.32
13	BE173/00107 Available to backorder	[13] - Bracket With Bearing 25 Dia	£63.72 £53.10
14	BE173/99528 Available to backorder	[14] - Pinion	£126.72 £105.60
15	BE173/99530 Available to backorder	[15] - Chassis Honda 20Hp Rob +Hatz Honda 20Hp & Robin	£1,278.72 £1,065.60
15	BE173/99529 Available to backorder	[15] - Steel Chassis Honda 13Hp Honda 13Hp	£1,367.42 £1,139.52
16	BE173/99531 Available to backorder	[16] - Transmission Chain	£136.80 £114.00
17	BE173/99504 Available to backorder	[17] - Silent Bloc ( Rubber Av Mount)	£60.72 £50.60
18	BE173/99532 Available to backorder	[18] - Shaft	£315.12 £262.60
19	BE173/99533 Available to backorder	[19] - Sub-Frame	£424.45 £353.71
20	BE173/99534 Available to backorder	[20] - Rear Axle+ Wheels	£320.64 £267.20
21	BE173/99535 Available to backorder	[21] - Shaft	£129.24 £107.70
22	BE173/99110 Available to backorder	[22] - Front Wheel With Bearing	£98.88 £82.40
23	BE173/99536 Available to backorder	[23] - Pulley	£337.54 £281.28
24	BE173/99537 Available to backorder	[24] - Chain Guard	£233.88 £194.90
25	BE173/99538 Available to backorder	[25] - Belt Kit	£147.72 £123.10
26	BE173/99539 Available to backorder	[26] - Pulley (Honda + Robin)	£295.68 £246.40
27	BE173/99541 Available to backorder	[27] - Depth Gauge	£97.20 £81.00
28	BE173/99513 Available to backorder	[28] - Bracket With Bearing 40mm Dia	£374.52 £312.10
29	BE173/99542 Available to backorder	[29] - Shaft	£322.97 £269.14
30	BE173/99514 Available to backorder	[30] - Flanges Kit	£200.76 £167.30
31	BE173/99515 Available to backorder	[31] - Blade Fixing Nut	£22.97 £19.14
32	BE173/99508 Available to backorder	[32b] - Pointer Rod	£70.92 £59.10
32	BE173/99543 Available to backorder	[32] - Pointer Guide	£200.88 £167.40
33	BE173/99544 Available to backorder	[33] - 90 Degree Depth Guage	£126.72 £105.60
34	BE173/99545 Available to backorder	[34] - Blade Guard 500	£1,070.21 £891.84
34	BE173/99516 Available to backorder	[34] - Blade Guard Door Lock	£162.12 £135.10
34	BE173/00111 Available to backorder	[34] - Cooling System Kit	£216.00 £180.00
34	BE173/99546 Available to backorder	[34] - Blade Guard 600	£1,210.75 £1,008.96
58	BE173/99567 Available to backorder	[58] - Clip Kit	£65.40 £54.50
