Belle Cable Cutter - Main Assembly

Name: Belle Cable Cutter - Main Assembly
SKU: CableCutterMain-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

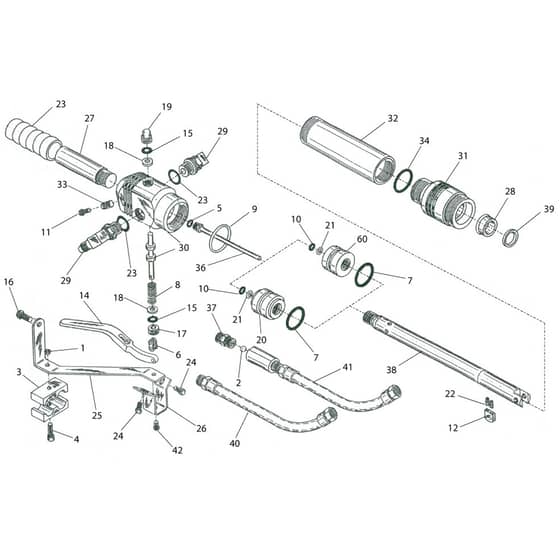

Belle Cable Cutter - Main Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
0	BE952/99560 Available to backorder	[-] - Seal Kit	£166.32 £138.60
0	BE952/99559 Available to backorder	[-] - Pipe Plug	£12.94 £10.78
1	BE952/99500 Available to backorder	[1] - Locknut	£3.12 £2.60
2	BE952/99501 Available to backorder	[2] - Ball Bearing	£3.78 £3.15
3	BE952/99502 Available to backorder	[3] - Bottom Clamp	£104.74 £87.28
4	BE952/99503 Available to backorder	[4] - Bolt	£3.78 £3.15
5	BE952/99504 Available to backorder	[5] - O-Ring	£1.96 £1.63
6	BE952/99505 Available to backorder	[6] - Connecting Link	£16.08 £13.40
7	BE952/99506 Available to backorder	[7] - Seal	£57.84 £48.20
8	BE952/99507 Available to backorder	[8] - Compression Spring	£16.08 £13.40
9	BE952/99508 Available to backorder	[9] - O-Ring	£3.78 £3.15
10	BE952/99509 Available to backorder	[10] - O-Ring	£1.96 £1.63
11	BE952/99510 Available to backorder	[11] - Screw	£5.08 £4.23
12	BE952/99511 Available to backorder	[12] - Stop Button	£188.22 £156.85
13	BE952/99512 Available to backorder	[13] - O-Ring	£2.82 £2.35
14	BE952/99513 Available to backorder	[14] - Trigger	£165.26 £137.72
15	BE952/99514 Available to backorder	[15] - O-Ring	£1.98 £1.65
16	BE952/99515 Available to backorder	[16] - Screw	£5.68 £4.73
17	BE952/99516 Available to backorder	[17] - Bottom Plug	£73.46 £61.22
18	BE952/99517 Available to backorder	[18] - Guide Washer	£18.66 £15.55
19	BE952/99518 Available to backorder	[19] - Valve Cap	£85.14 £70.95
20	BE952/99519 Available to backorder	[20] - Piston Weldment	£303.12 £252.60
21	BE952/99520 Available to backorder	[21] - Backup Ring	£2.98 £2.48
22	BE952/99521 Available to backorder	[22] - Comprssion Spring	£17.38 £14.48
23	BE952/99522 Available to backorder	[23] - Hand Grip	£23.86 £19.88
24	BE952/99523 Available to backorder	[24] - Screw	£5.08 £4.23
25	BE952/99524 Available to backorder	[25] - Trigger Guard	£143.82 £119.85
26	BE952/99525 Available to backorder	[26] - Guard Mount	£117.24 £97.70
27	BE952/99526 Available to backorder	[27] - Valve Handle	£137.24 £114.37
28	BE952/99527 Available to backorder	[28] - Rod Seal	£56.20 £46.83
29	BE952/99528 Available to backorder	[29] - Fitting	£81.98 £68.32
30	BE952/99529 Available to backorder	[30] - Housing +Spool Assembly	£1,003.20 £836.00
31	BE952/99530 Available to backorder	[31] - Cylinder End Plug	£459.60 £383.00
32	BE952/99566 Available to backorder	[32] - Cylinder ( 4" )	£322.92 £269.10
32	BE952/99531 Available to backorder	[32] - Cylinder ( 2" )	£267.48 £222.90
33	BE952/99532 Available to backorder	[33] - Trigger Pivot	£118.28 £98.57
34	BE952/99533 Available to backorder	[34] - O-Ring	£10.38 £8.65
35	BE952/99534 Available to backorder	[35] - Flow Check Valve	£188.16 £156.80
36	BE952/99535 Available to backorder	[36] - Cylinder Tube Assembly ( 4" )	£102.14 £85.12
36	BE952/99567 Available to backorder	[36] - Cylinder Tube Assembly ( 2" )	£89.12 £74.27
37	BE952/99536 Available to backorder	[37] - Check Fitting Assembly	£52.54 £43.78
38	BE952/99568 Available to backorder	[38] - Piston Rod Assembly ( 2" )	£340.08 £283.40
38	BE952/99537 Available to backorder	[38] - Piston Rod Assembly ( 4" )	£333.60 £278.00
39	BE952/99538 Available to backorder	[39] - Spacer	£34.26 £28.55
40	BE952/99539 Available to backorder	[40] - Pressure Inlet Hose Assy	£149.00 £124.17
41	BE952/99540 Available to backorder	[41] - Return Outlet Hose Assy	£155.28 £129.40
42	BE952/99541 Available to backorder	[42] - Screw	£2.98 £2.48
43	BE952/99561 Available to backorder	[43] - Locknut ( 2" )	£2.98 £2.48
43	BE952/99542 Available to backorder	[43] - Locknut ( 4" )	£2.98 £2.48
44	BE952/99543 Available to backorder	[44] - Pin	£10.76 £8.97
45	BE952/99544 Available to backorder	[45] - Bolt	£8.96 £7.47
46	BE952/99545 Available to backorder	[46] - Nut	£9.76 £8.13
47	BE952/99546 Available to backorder	[47] - Bolt	£32.98 £27.48
48	BE952/99547 Available to backorder	[48] - Screw	£2.98 £2.48
49	BE952/99548 Available to backorder	[49] - Washer	£2.54 £2.12
50	BE952/99563 Available to backorder	[50] - Cam ( 2" )	£217.08 £180.90
50	BE952/99549 Available to backorder	[50] - Cam ( 4" )	£226.68 £188.90
51	BE952/99562 Available to backorder	[51] - Blade (2" )	£736.80 £614.00
51	BE952/99550 Available to backorder	[51] - Blade (4" )	£910.80 £759.00
52	BE952/99551 Available to backorder	[52] - Screw	£5.08 £4.23
53	BE952/99552 Available to backorder	[53] - Release Button	£165.26 £137.72
54	BE952/99553 Available to backorder	[54] - Release Trigger	£188.14 £156.78
55	BE952/99554 Available to backorder	[55] - Wiper	£55.68 £46.40
56	BE952/99555 Available to backorder	[56] - Dual Control Handle	£560.40 £467.00
57	BE952/99556 Available to backorder	[57] - Screw	£5.08 £4.23
58	BE952/99557 Available to backorder	[58] - Outer Tube Assembly ( 4" )	£1,077.60 £898.00
58	BE952/99565 Available to backorder	[58] - Outer Tube Assembly ( 2" )	£994.80 £829.00
59	BE952/99558 Available to backorder	[59] - Cylinder End Cap	£357.60 £298.00
60	BE10-330-0640 Available to backorder	[60] - Cap Screw M6 x 40 Long	£1.26 £1.05
61	BE10-410-0600 Available to backorder	[61] - Spring Washer M6	£0.48 £0.40
62	BE02027 Available to backorder	[62] - Hand Guard (Large Boss)	£83.40 £69.50
