Belle BWX 15-250 - Trailer Assembly 2

Name: Belle BWX 15-250 - Trailer Assembly 2
SKU: BWX15250Trailer2-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

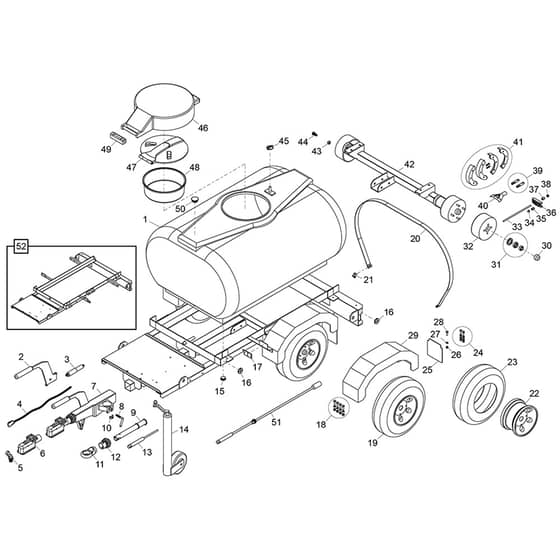

Belle BWX 15-250 - Trailer Assembly 2 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	BE995/99985 Available to backorder	[2] - Posibrake Type Handbrake Lever	£208.20 £173.50
3	BE995/99986 Available to backorder	[3] - Plastic Energy Store	£264.96 £220.80
4	BE995/99956 Available to backorder	[4] - Safety Break Away Cable	£45.86 £38.22
5	BE995/99973 Available to backorder	[5] - Replacement Lock Kit For 50mm	£74.42 £62.02
6	BE995/99945 Available to backorder	[6] - 50mm Ball Hitch 2000Kg Lockabl	£230.16 £191.80
7	BE995/99952 Available to backorder	[7] - Krv20 Coupling	£486.00 £405.00
8	BE995/99998 Available to backorder	[8] - Locking Handle Short	£29.98 £24.98
9	BE995/99953 Available to backorder	[9] - 2000 Kg Drawtube	£175.96 £146.63
10	BE995/99999 Available to backorder	[10] - Handle Block (Locking Pad)	£22.22 £18.52
11	BE995/99946 Available to backorder	[11] - Ring Hitch 200Kg Lockable	£267.12 £222.60
12	BE995/99955 Available to backorder	[12] - Bellows/Gater	£45.86 £38.22
13	BE995/99954 Available to backorder	[13] - 2000Kg Damper	£194.38 £161.98
14	BE995/99957 Available to backorder	[14] - Tj15 48mm Serrated Jockey Whe	£273.85 £228.21
15	BE995/99984 Available to backorder	[15] - 2" Black Tank Plug	£17.28 £14.40
16	BE73/0060 Available to backorder	[16] - Amber Round Refelctor Bolt On	£3.50 £2.92
17	BE73/0059 Available to backorder	[17] - Clear Oblong Reflector Bolt On	£3.24 £2.70
18	BE995/99899 Available to backorder	[18] - Fittings For Mudguard	£7.78 £6.48
19	BE995/99962 Available to backorder	[19] - 175 x 13 x 6Ply Wheel & Tyre Up To Jan 2021	£338.77 £282.31
19	BE995/99002 Available to backorder	[19] - Wheel - 185/13 From Jan 2021	£332.40 £277.00
20	BE995/99981 Available to backorder	[20] - 1125 Litre Stainless Strap	£179.38 £149.48
21	BE995/99983 Available to backorder	[21] - Retaining Bar Only	£22.42 £18.68
22	BE995/99988 Available to backorder	[22] - 450x13 Wheel Rim Only	£138.92 £115.77
23	BE995/99001 Available to backorder	[23] - Tyre 185 R13 C 97/95 R From Jan 2021	£332.41 £277.01
23	BE995/99987 Available to backorder	[23] - 175x13x6 Ply Tyre Only Up To Jan 2021	£239.28 £199.40
24	BE995/99898 Available to backorder	[24] - Fittings For Mudflap	£4.82 £4.02
25	BE995/99979 Available to backorder	[25] - Mudflap	£28.72 £23.93
26	BE995/99996 Available to backorder	[26] - M6 T Nylock Nut	£0.60 £0.50
27	BE995/99997 Available to backorder	[27] - M6 Washer	£0.48 £0.40
28	BE995/99995 Available to backorder	[28] - M6 Ht Set Screw	£0.92 £0.77
29	BE995/99961 Available to backorder	[29] - 13" Plastic Mudguard	£54.76 £45.63
30	BE995/99976 Available to backorder	[30] - Small Grease Cap	£30.24 £25.20
31	BE995/99972 Available to backorder	[31] - 200x50 Wheel Bearings	£81.96 £68.30
32	BE995/99970 Available to backorder	[32] - 200x50 Hub	£332.76 £277.30
33	BE995/99974 Available to backorder	[33] - Brake Rod	£42.94 £35.78
34	BE995/99991 Available to backorder	[34] - M8 Dome Nut	£3.72 £3.10
35	BE995/99992 Available to backorder	[35] - M8 Locking Nut	£0.92 £0.77
36	BE995/99977 Available to backorder	[36] - Compensator Pronto Balance Bar	£54.20 £45.17
37	BE995/99994 Available to backorder	[37] - M10 Locking Nut	£1.40 £1.17
38	BE995/99993 Available to backorder	[38] - M10 Dome Extended Nut	£5.10 £4.25
39	BE995/99978 Available to backorder	[39] - Eyelets 200x50	£47.96 £39.97
40	BE995/99975 Available to backorder	[40] - Shroud/Fishtail 200x50	£12.60 £10.50
41	BE995/99971 Available to backorder	[41] - 200x50 Auto Reverse Brake Shoe	£265.44 £221.20
42	BE995/99969 Available to backorder	[42] - Complete New Axle	£1,165.20 £971.00
43	BE995/99990 Available to backorder	[43] - M12 1/2" Wheel Nuts	£7.58 £6.32
44	BE995/99989 Available to backorder	[44] - M12 1/2" Wheel Stud	£16.84 £14.03

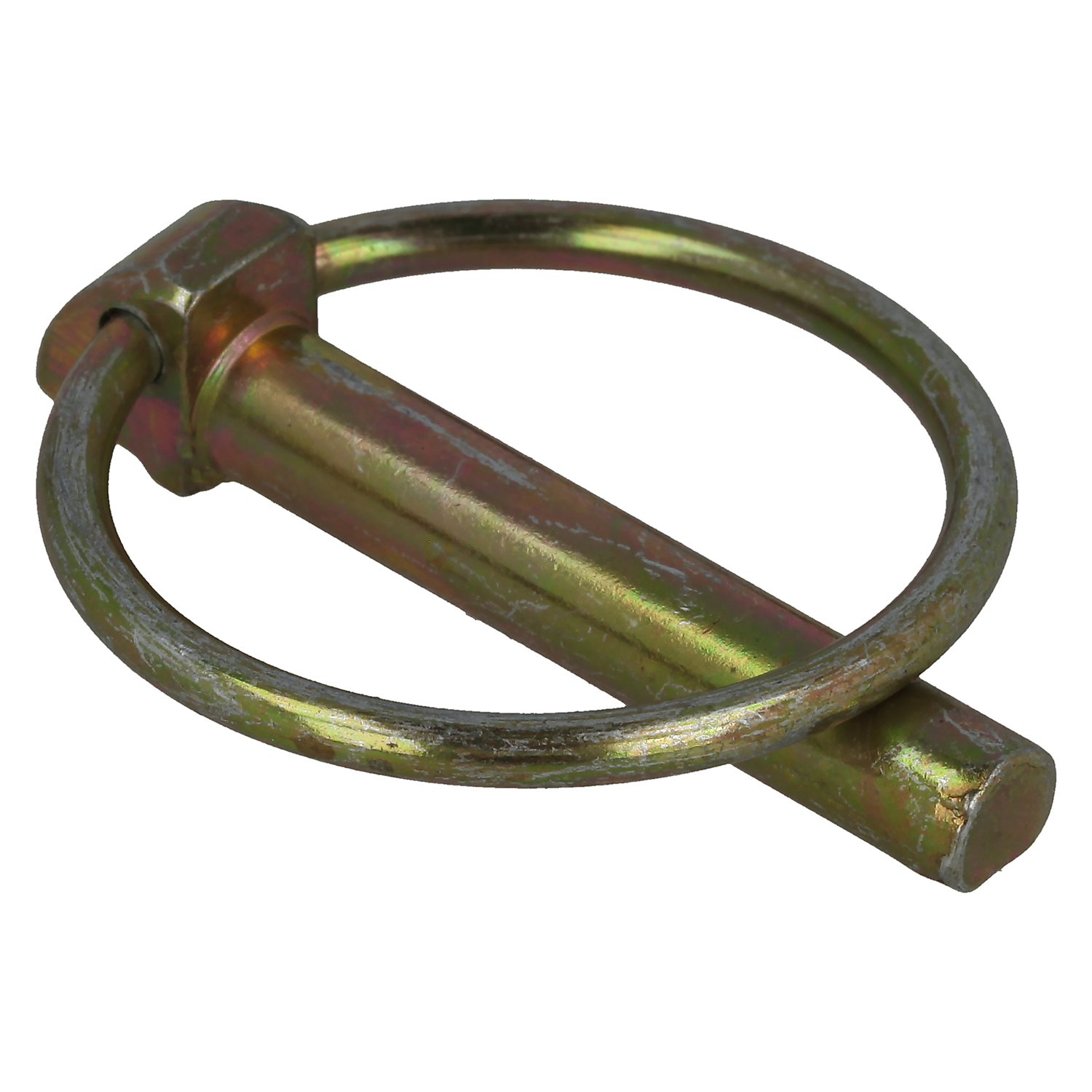

45	3956 In stock	[45] - Linch Pin Kit x 4	£0.48 £0.40
46	BE995/02600G Available to backorder	[46] - Lid - 1125Ltr Bowser Green	£320.52 £267.10
46	BE995/02600Y Available to backorder	[46] - Lid - 1125Ltr Bowser Yellow	£321.96 £268.30
46	BE995/02600R1 Available to backorder	[46] - Lid - 1125Ltr Bowser Red	£320.52 £267.10
46	BE995/02600B Available to backorder	[46] - Blue Bowser Lid Blue	£320.52 £267.10
46	BE995/02600S Available to backorder	[46] - Lid - 1125Ltr Bowser Orange	£225.23 £187.69
47	BE995/99950 Available to backorder	[47] - Black Inner Lid	£258.59 £215.49
48	BE995/99980 Available to backorder	[48] - Basket Filter	£106.04 £88.37
49	BE995/99951 Available to backorder	[49] - Hinge Block C/W Tek Screws	£42.62 £35.52
50	BE995/99982 Available to backorder	[50] - 1 1/2" Red Tank Plug	£8.34 £6.95
51	BE995/99963 Available to backorder	[51] - Bowden Cable Ext Long	£102.82 £85.68
