Belle BWR 750 - Roller Unit

Name: Belle BWR 750 - Roller Unit
SKU: BWR750RollerUnit-group
Price: 0.4 GBP
Availability: InStock

Part No. BWR750RollerUnit-group

Description

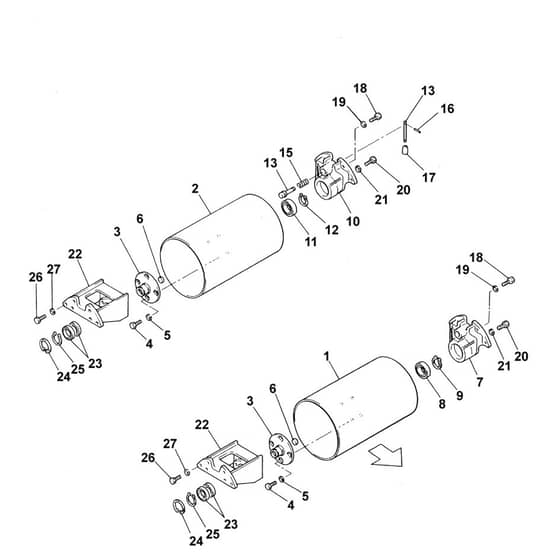

Belle BWR 750 - Roller Unit - Parts Diagram

	Part No.	Details
1	BE919/99921 Available to backorder	[1] - Front Drum Bwr750	£2,168.06 £1,806.72
2	BE919/99923 Available to backorder	[2] - Rear Drum Bwr750	£2,249.86 £1,874.88
3	BE919/99924 Available to backorder	[3] - Flange Shaft	£420.19 £350.16
6	BE6/2015 Available to backorder	[6] - Plug	£2.40 £2.00
7	BE919/99925 Available to backorder	[7] - Front Left Bracket	£594.43 £495.36
10	BE919/99926 Available to backorder	[10] - Rear Lift Bracket	£411.97 £343.31
11	BE53/0023 Available to backorder	[11] - Bearing+ 6210 Llu	£96.12 £80.10
13	BE919/99843 Available to backorder	[13] - Stopper Shaft Assy Includes 919/99843_1 And 919/9	£49.00 £40.83
15	BE2/0046 Available to backorder	[15] - Return Spring From 361030	£35.05 £29.21
15	BE2/0061 Available to backorder	[15] - Spring 27.81 Od x 50.8 Lg Up To 361029	£14.83 £12.36
16	BE3/0058 Available to backorder	[16] - Spring Pin 4 x 18	£0.77 £0.64
17	BE74/0006 Available to backorder	[17] - Grip	£21.34 £17.78
20	BE9/10023 Available to backorder	[20] - Bolt	£2.40 £2.00
21	BE4/1003 Available to backorder	[21] - Washer M10	£0.48 £0.40
22	BE919/99928 Available to backorder	[22] - Right Bracket	£889.34 £741.12
23	BE53/0024 Available to backorder	[23] - Bearing+ 6010 Llu	£82.32 £68.60
24	BE3/9030 Available to backorder	[24] - Cipclip 80 Dia Internal	£4.32 £3.60
25	BE3/9019 Available to backorder	[25] - Snap Ring+ S50	£3.58 £2.98
26	BE9/12009 Available to backorder	[26] - Bolt	£0.58 £0.48
27	BE4/1202 Available to backorder	[27] - Washer M12	£0.48 £0.40
