Belle BWR 650 - Frame Unit

Name: Belle BWR 650 - Frame Unit
SKU: BWR650FrameUnit-group
Price: 0.34 GBP
Availability: InStock

Part No. BWR650FrameUnit-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

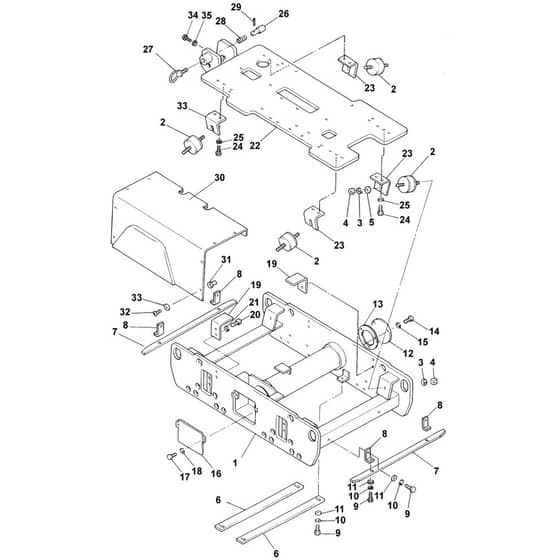

Belle BWR 650 - Frame Unit - Parts Diagram

	Part No.	Details
1	BE919/99929 Available to backorder	[1] - Main Frame	£3,049.34 £2,541.12
2	BE21.0.151 Available to backorder	[2] - Rubber Isolator	£22.63 £18.86
3	BE4/1202 Available to backorder	[3] - Washer M12	£0.48 £0.40
4	BE8/12001 Available to backorder	[4] - Nut	£2.54 £2.12
5	BE4/1212 Available to backorder	[5] - Washer	£20.69 £17.24
6	BE919/99930 Available to backorder	[6] - Inside Scraper	£39.11 £32.59
7	BE919/99931 Available to backorder	[7] - Outside Scraper	£53.32 £44.43
8	BE919/99932 Available to backorder	[8] - Scraper Stay	£26.20 £21.83
11	BE4/1010 Available to backorder	[11] - Washer	£6.00 £5.00
12	BE919/99933 Available to backorder	[12] - Case Cover	£37.40 £31.17
13	BE919/99934 Available to backorder	[13] - Case Cover Packing	£6.12 £5.10
14	BE9/6016 Available to backorder	[14] - Bolt	£1.06 £0.88
15	BE4/6005 Available to backorder	[15] - Washer M6	£0.48 £0.40
16	BE919/99935 Available to backorder	[16] - Side Cover	£52.34 £43.62
17	BE9/8034 Available to backorder	[17] - Bolt	£1.28 £1.07
18	BE4/8003 Available to backorder	[18] - Washer M8	£0.71 £0.59
19	BE919/99936 Available to backorder	[19] - Stopper	£29.94 £24.95
22	BE919/99937 Available to backorder	[22] - Base	£1,550.59 £1,292.16
23	BE919/99938 Available to backorder	[23] - Base Support	£98.88 £82.40
24	BE9/10030 Available to backorder	[24] - Bolt	£0.71 £0.59
25	BE4/1003 Available to backorder	[25] - Washer M10	£0.48 £0.40
26	BE919/99842 Available to backorder	[26] - Handle Stopper Kit	£64.68 £53.90
27	BE919/99940 Available to backorder	[27] - Eye Bolt	£5.59 £4.66
28	BE2/0061 Available to backorder	[28] - Spring 27.81 Od x 50.8 Lg	£14.83 £12.36
29	BE3/0059 Available to backorder	[29] - Spring Pin	£3.25 £2.71
30	BE919/99818 Available to backorder	[30] - Cover ( Steel ) Ea300 From 351000	£125.64 £104.70
30	BE919/99941 Available to backorder	[30] - Cover Ea300 Up To 0405017	£572.54 £477.12
31	BE8/6022 Available to backorder	[31] - Nut	£5.46 £4.55
32	BE9/6018 Available to backorder	[32] - Bolt	£0.85 £0.71
33	BE4/6003 Available to backorder	[33] - Washer M6	£0.48 £0.40
34	BE9/10001 Available to backorder	[34] - Bolt Now Use 7/10010	£0.41 £0.34
35	BE8/10001 Available to backorder	[35] - Nut	£1.69 £1.41
