Belle BWE 80-110-130 - Drive Kit

Description

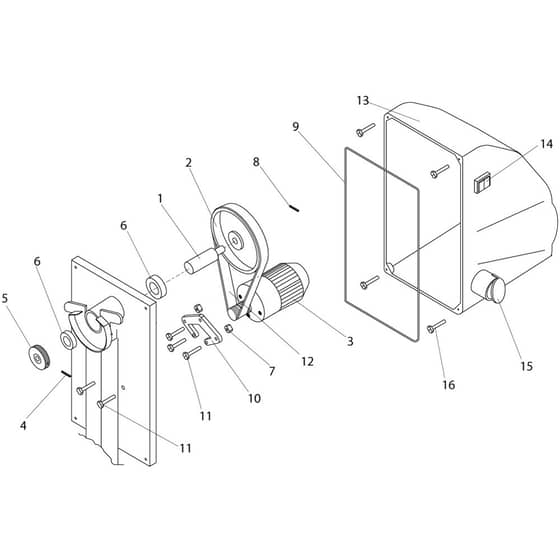

Belle BWE 80-110-130 - Drive Kit - Parts Diagram

	Part No.	Details
1	BE944/99150 Available to backorder	[1] - Drive Shaft	£24.54 £20.45
2	BE901/99908 Available to backorder	[2] - Pulley Large 0130	£3.88 £3.23
3	BE901/99958 Available to backorder	[3] - Motor Mini 130 230V 50Hz Tp02	£112.34 £93.62
4	BE903/99540 Available to backorder	[4] - Spring Peg 6 x 35	£7.66 £6.38
7	BE8/8008 Available to backorder	[7] - Nut	£0.48 £0.40
8	BE3/0039 Available to backorder	[8] - Pin Spirol 6 x 25	£1.02 £0.85
9	BE901/99907 Available to backorder	[9] - Seal - Motor Cover	£2.58 £2.15
10	BE901/99910 Available to backorder	[10] - Bracket Motor Mounting	£5.16 £4.30
11	BE7/8009 Available to backorder	[11] - Screw	£0.48 £0.40
12	BE901/99912 Available to backorder	[12] - Belt Snap 6Epj503	£6.00 £5.00
13	BE901/15500 Available to backorder	[13] - Motor Cover Cee7 230V50Hz Tp02 Euro Lead	£102.56 £85.47
15	BE70/0223 Available to backorder	[15] - Socket	£34.78 £28.98
16	BE903/99533 Available to backorder	[16] - Screw F-5.5 x 22	£0.56 £0.47
