Belle BWE 150-200-250 - Drum Assembly

Part No. BWE150200250Drum-group
Belle BWE 150-200-250 - Drum Assembly
Belle BWE 150-200-250 - Drum Assembly

Description

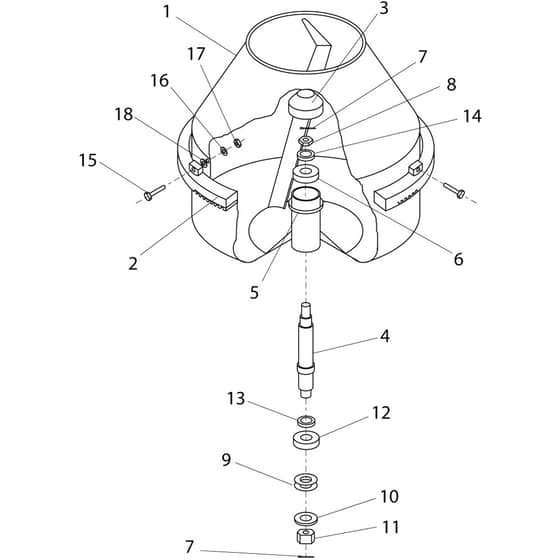

Belle BWE 150-200-250 - Drum Assembly - Parts Diagram

Ref. Img. Part No. Details
  1 [1] - Drum-150K Bwe-150Kj 150
[1] - Drum-150K Bwe-150Kj 150
BE946/99601
Available to backorder
[1] - Drum-150K Bwe-150Kj 150
£745.34 £621.12

  1 [1] - Drum-200K Bwe-200Kj 200
[1] - Drum-200K Bwe-200Kj 200
BE946/99602
Available to backorder
[1] - Drum-200K Bwe-200Kj 200
£888.19 £740.16

  1 [1] - Drum-250 ( All ) 250
[1] - Drum-250 ( All ) 250
BE946/99560
Available to backorder
[1] - Drum-250 ( All ) 250
£1,448.06 £1,206.72

  2 [2] - Sprocket Z122 150 / 200
[2] - Sprocket Z122 150 / 200
BE946/99603
Available to backorder
[2] - Sprocket Z122 150 / 200
£187.92 £156.60

  2 [2] - Sprocket Z102 250
[2] - Sprocket Z102 250
BE963/99042
Available to backorder
[2] - Sprocket Z102 250
£129.12 £107.60

  3 [3] - Shaft Cover 250
[3] - Shaft Cover 250
BE946/99563
Available to backorder
[3] - Shaft Cover 250
£23.17 £19.31

  3 [3] - Shaft Cover 150 / 200
[3] - Shaft Cover 150 / 200
BE946/99618
Available to backorder
[3] - Shaft Cover 150 / 200
£23.17 £19.31

  4 [4] - Shaft Drum 150 / 200
[4] - Shaft Drum 150 / 200
BE946/99512
Available to backorder
[4] - Shaft Drum 150 / 200
£60.12 £50.10

  4 [4] - Drum Shaft 250
[4] - Drum Shaft 250
BE946/99564
Available to backorder
[4] - Drum Shaft 250
£190.68 £158.90

  5 [5] - Circlip 80 x 3 150 / 200
[5] - Circlip 80 x 3 150 / 200
BE944/99042
Available to backorder
[5] - Circlip 80 x 3 150 / 200
£4.84 £4.03

  5 [5] - Ring 90 x 3 250
[5] - Ring 90 x 3 250
BE946/99565
Available to backorder
[5] - Ring 90 x 3 250
£5.03 £4.19

  6 [6] - Bearing 30306 ( Drum ) 150 / 200
[6] - Bearing 30306 ( Drum ) 150 / 200
BE946/99505
Available to backorder
[6] - Bearing 30306 ( Drum ) 150 / 200
£18.00 £15.00

  6 [6] - Bearing 32208 ( Drum ) 250
[6] - Bearing 32208 ( Drum ) 250
BE946/99521
Available to backorder
[6] - Bearing 32208 ( Drum ) 250
£24.00 £20.00

  7 [7] - Split Pin 4 x 45
[7] - Split Pin 4 x 45
BE946/99604
Available to backorder
[7] - Split Pin 4 x 45
£1.39 £1.16

  8 [8] - Nut M24 Castellated 150 / 200
[8] - Nut M24 Castellated 150 / 200
BE944/99040
Available to backorder
[8] - Nut M24 Castellated 150 / 200
£2.46 £2.05

  9 [9] - Spacer Drum Pivot 150 / 200
[9] - Spacer Drum Pivot 150 / 200
BE944/99038
Available to backorder
[9] - Spacer Drum Pivot 150 / 200
£1.31 £1.09

  9 [9] - Spacer Washer 250
[9] - Spacer Washer 250
BE946/99567
Available to backorder
[9] - Spacer Washer 250
£0.43 £0.36

  10 [10] - Spacer Drum Pivot 150 / 200
[10] - Spacer Drum Pivot 150 / 200
BE944/99050
Available to backorder
[10] - Spacer Drum Pivot 150 / 200
£3.72 £3.10

  10 [10] - Washer 250
[10] - Washer 250
BE946/99568
Available to backorder
[10] - Washer 250
£0.43 £0.36

  11 [11] - Nut M24 x 2
[11] - Nut M24 x 2
BE963/99039
Available to backorder
[11] - Nut M24 x 2
£3.71 £3.09

  12 [12] - Spacer 80 x 48 x 10 150 / 200
[12] - Spacer 80 x 48 x 10 150 / 200
BE944/99046
Available to backorder
[12] - Spacer 80 x 48 x 10 150 / 200
£7.45 £6.21

  12 [12] - Ring 58 x 90 x 10 250
[12] - Ring 58 x 90 x 10 250
BE946/99570
Available to backorder
[12] - Ring 58 x 90 x 10 250
£10.00 £8.33

  13 [13] - Bearing 32210 ( Drum ) 250
[13] - Bearing 32210 ( Drum ) 250
BE946/99522
Available to backorder
[13] - Bearing 32210 ( Drum ) 250
£20.96 £17.47

  13 [13] - Bearing 30208 150 / 200
[13] - Bearing 30208 150 / 200
BE944/99012
Available to backorder
[13] - Bearing 30208 150 / 200
£15.06 £12.55

  14 [14] - Washer
[14] - Washer
BE946/99571
Available to backorder
[14] - Washer
£0.95 £0.79

  15 [15] - Screw 150 / 200
[15] - Screw 150 / 200
BE7/10003
Available to backorder
[15] - Screw 150 / 200
£0.43 £0.36

  15 [15] - Screw 250
[15] - Screw 250
BE7/10009
Available to backorder
[15] - Screw 250
£0.64 £0.53

  17 [17] - Nut 250
[17] - Nut 250
BE8/10003
Available to backorder
[17] - Nut 250
£0.48 £0.40

  17 [17] - Nut 150 / 200
[17] - Nut 150 / 200
BE8/10006
Available to backorder
[17] - Nut 150 / 200
£0.48 £0.40

  18 [18] - Washer 250 M10
[18] - Washer 250 M10
BE4/1005
Available to backorder
[18] - Washer 250 M10
£0.48 £0.40

  18 [18] - Spring Washer 150 / 200
[18] - Spring Washer 150 / 200
BE946/99619
Available to backorder
[18] - Spring Washer 150 / 200
£1.06 £0.88


Description

Belle BWE 150-200-250 - Drum Assembly - Parts Diagram
