Belle Bulldog - Valve Assembly

Part No. BulldogValve-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Belle Bulldog - Valve Assembly

Belle Bulldog - Valve Assembly

Description

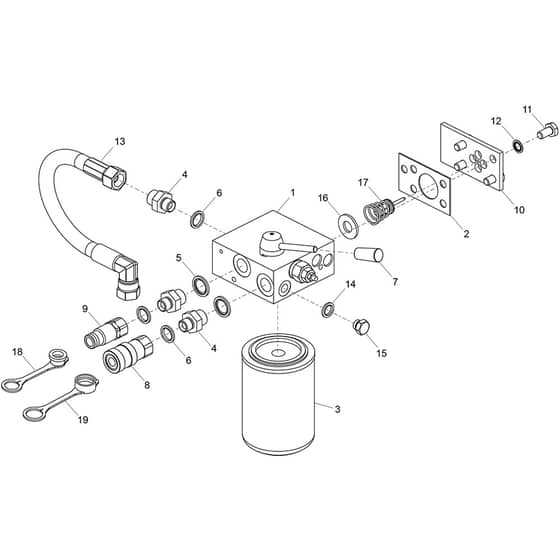

Belle Bulldog - Valve Assembly - Parts Diagram

Ref.		Img.	Part No.	Details
	1		BE01392 Available to backorder	[1] - Valve Block		£489.60 £408.00
	2		BE00803 Available to backorder	[2] - Gasket		£2.03 £1.69
	3		BE00178 Available to backorder	[3] - Hydraulic Filter		£61.68 £51.40
	4		BE6/0005 Available to backorder	[4] - Adaptor - 1/2 x 3/8 Bsp M/M		£6.66 £5.55
	5		BE5/0002 Available to backorder	[5] - Seal Bonded 1/2" Bsp		£0.48 £0.40
	6		BE5/0007 Available to backorder	[6] - Seal Bonded 3/8" Bsp		£0.48 £0.40
	7		BE72/0007 Available to backorder	[7] - Knob Bypy		£3.79 £3.16
	8		BE00546 Available to backorder	[8] - Coupling 3/8" Bsp Female		£80.76 £67.30
	9		BE00545 Available to backorder	[9] - Coupling 3/8" Bsp Male		£47.15 £39.29
	10		BE00729 Available to backorder	[10] - Clamping Plate		£21.83 £18.19
	11		BE7/10004 Available to backorder	[11] - Screw		£0.43 £0.36
	12		BE4/1002 Available to backorder	[12] - Washer M10		£0.48 £0.40
	13		BE32/0145 Available to backorder	[13] - Hyd Hose - 1/2" Bsp+ 380mm		£58.08 £48.40
	14		BE5/0011 Available to backorder	[14] - Seal Bonded 1/4" Bsp		£1.26 £1.05
	15		BE6/2018 Available to backorder	[15] - Blanking Plug 1/4" Bsp		£13.74 £11.45
	16		BE00853 Available to backorder	[16] - Washer 16 Id x 34 Od x 3 Bzp		£3.11 £2.59
	17		BE00024 Available to backorder	[17] - Now Use 00024Sp		£314.52 £262.10

Description

Belle Bulldog - Valve Assembly - Parts Diagram
