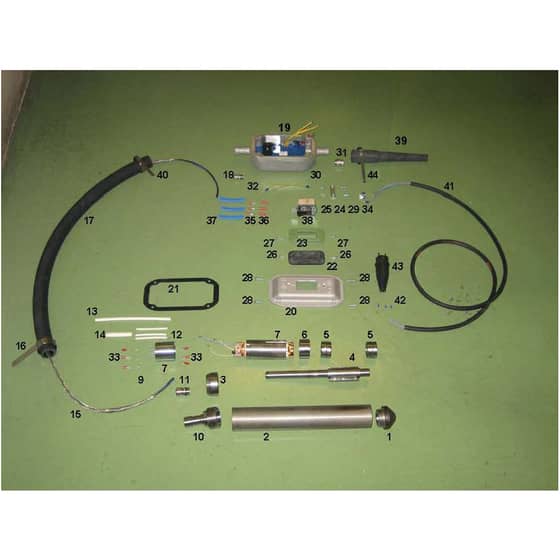

Belle BHF Pokers - BHF-GT 51 110v - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	BE972/99808 Available to backorder	[1] - 51 Vibrator Head	£198.22 £165.18
2	BE972/99809 Available to backorder	[2] - 51 Exciter Tube	£506.40 £422.00
3	BE972/99810 Available to backorder	[3] - 51 Skirted Nut	£186.44 £155.37
4	BE972/99811 Available to backorder	[4] - 51 Rotor	£644.40 £537.00
5	BE972/99812 Available to backorder	[5] - 51 Bearing Set	£269.40 £224.50
6	BE972/99813 Available to backorder	[6] - 51 Distance Sign	£85.98 £71.65
7	BE972/99814 Available to backorder	[7] - 51 Stator Assy - 200V	£741.60 £618.00
9	BE972/99968 Available to backorder	[9] - Washer M4	£8.80 £7.33
10	BE972/99816 Available to backorder	[10] - 51 Hose Nipple	£199.92 £166.60
11	BE972/99912 Available to backorder	[11] - Cable Gland Emv Pg13	£10.26 £8.55
12	BE972/99969 Available to backorder	[12] - Silicone Hose 3.5mm	£3.62 £3.02
13	BE972/99970 Available to backorder	[13] - Silicone Hose 7mm	£13.00 £10.83
14	BE972/99914 Available to backorder	[14] - Silicone Hose 10mm	£4.22 £3.52
15	BE972/99979 Available to backorder	[15A] - Cable 9M	£88.86 £74.05
15	BE972/99915 Available to backorder	[15] - Cable 6M	£58.46 £48.72
16	BE972/99916 Available to backorder	[16] - Steel Bandage 206	£7.92 £6.60
17	BE972/99947 Available to backorder	[17] - Hose 51/57	£385.20 £321.00
17	BE972/99978 Available to backorder	[17B] - 48mm O/Dia Hose x 8M	£613.20 £511.00
18	BE972/99918 Available to backorder	[18] - Cable Gland Emv Pg9	£52.60 £43.83
19	BE972/99966 Available to backorder	[19] - Switch Box Bottom	£1,692.00 £1,410.00
20	BE972/99921 Available to backorder	[20] - Cover	£97.74 £81.45
21	BE972/99922 Available to backorder	[21] - Gasket Rubber	£4.08 £3.40
22	BE972/99923 Available to backorder	[22] - Switch Cover	£7.12 £5.93
23	BE972/99924 Available to backorder	[23] - Switch Holder	£19.06 £15.88
24	BE972/99925 Available to backorder	[24] - Cable Clamp	£3.60 £3.00
25	BE972/99972 Available to backorder	[25] - Washer M6	£0.48 £0.40
26	BE972/99926 Available to backorder	[26] - Switch Screw	£0.56 £0.47
27	BE972/99927 Available to backorder	[27] - Switch Holder Screw	£0.56 £0.47
28	BE972/99928 Available to backorder	[28] - Cover Screws	£0.56 £0.47
29	BE972/99929 Available to backorder	[29] - Cable Clamp Screw	£0.56 £0.47
30	BE972/99973 Available to backorder	[30] - Screw Grounding Cover	£0.56 £0.47
31	BE972/99930 Available to backorder	[31] - Cable Gland Pg 13.5	£9.94 £8.28
32	BE972/99967 Available to backorder	[32] - Earth Strap	£7.82 £6.52
33	BE972/99936 Available to backorder	[33] - Cable Connection Plug	£0.80 £0.67
34	BE972/99935 Available to backorder	[34] - Cable Connection Box	£1.22 £1.02
35	BE972/99965 Available to backorder	[35] - Bullet Terminal Male	£1.66 £1.38
36	BE972/99975 Available to backorder	[36] - Bullet Terminal Female	£1.58 £1.32
37	BE972/99964 Available to backorder	[37] - Heat Shrink	£1.92 £1.60
38	BE972/99931 Available to backorder	[38] - Switch	£67.84 £56.53
39	BE972/99934 Available to backorder	[39] - Cable Protector	£35.78 £29.82
40	BE972/99919 Available to backorder	[40] - Steel Bandage 245	£7.92 £6.60
41	BE972/99933 Available to backorder	[41] - Cable x 10 Metres	£244.56 £203.80
42	BE972/99976 Available to backorder	[42] - Vein Final Case 2.5mm	£18.72 £15.60
43	BE972/99932 Available to backorder	[43] - 3 Pin 110V Plug	£52.76 £43.97
44	BE972/99958 Available to backorder	[44] - Steel Bandage 202	£9.28 £7.73
