Belle BHF Pokers - BHF-GT 35 230v

Name: Belle BHF Pokers - BHF-GT 35 230v
SKU: BHFPokersBHFGT35230v-group
Price: 0.47 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

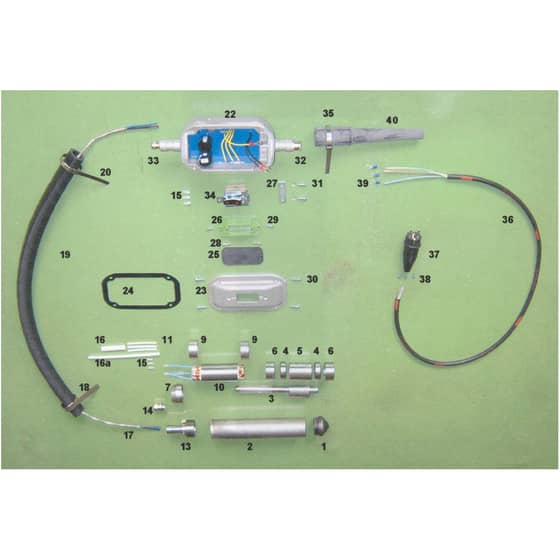

Belle BHF Pokers - BHF-GT 35 230v - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
0	BE972/99960 Available to backorder	[-] - Circlip	£0.92 £0.77
0	BE972/99959 Available to backorder	[-] - Connecting Dome 35	£76.82 £64.02
0	BE972/99967 Available to backorder	[-] - Earth Strap	£7.82 £6.52
0	BE972/00200 Available to backorder	[-] - 230V Vibratronic Control Box	£2,204.40 £1,837.00
1	BE972/99901 Available to backorder	[1] - Vibrator Head 35	£150.02 £125.02
2	BE972/99902 Available to backorder	[2] - Exciter Tube 35	£510.00 £425.00
3	BE972/99903 Available to backorder	[3] - Rotor 35	£651.60 £543.00
4	BE972/99904 Available to backorder	[4] - Bearing 35	£198.26 £165.22
5	BE972/99905 Available to backorder	[5] - Bearing Tube 35	£96.46 £80.38
6	BE972/99906 Available to backorder	[6] - Bearing Plate 35	£63.40 £52.83
7	BE972/99907 Available to backorder	[7] - Skirted Nut 35	£134.34 £111.95
9	BE972/99908 Available to backorder	[9] - Distance Tube 35	£50.84 £42.37
10	BE972/99909 Available to backorder	[10] - Stator 35	£1,248.00 £1,040.00
11	BE972/99910 Available to backorder	[11] - Silicone Hose 5mm	£9.28 £7.73
13	BE972/99911 Available to backorder	[13] - Hose Nipple 35	£157.06 £130.88
14	BE972/99912 Available to backorder	[14] - Cable Gland Emv Pg13	£10.26 £8.55
15	BE972/99913 Available to backorder	[15] - Connection	£0.92 £0.77
16	BE972/99914 Available to backorder	[16] - Silicone Hose 10mm	£4.22 £3.52
17	BE972/99915 Available to backorder	[17] - Cable 6M	£58.46 £48.72
18	BE972/99916 Available to backorder	[18] - Steel Bandage 206	£7.92 £6.60
19	BE972/99917 Available to backorder	[19] - Hose 35	£47.32 £39.43
20	BE972/99919 Available to backorder	[20] - Steel Bandage 245	£7.92 £6.60
22	BE972/99963 Available to backorder	[22] - Switch Box Bottom 230V	£2,049.60 £1,708.00
23	BE972/99921 Available to backorder	[23] - Cover	£97.74 £81.45
24	BE972/99922 Available to backorder	[24] - Gasket Rubber	£4.08 £3.40
25	BE972/99923 Available to backorder	[25] - Switch Cover	£7.12 £5.93
26	BE972/99924 Available to backorder	[26] - Switch Holder	£19.06 £15.88
27	BE972/99925 Available to backorder	[27] - Cable Clamp	£3.60 £3.00
28	BE972/99926 Available to backorder	[28] - Switch Screw	£0.56 £0.47
29	BE972/99927 Available to backorder	[29] - Switch Holder Screw	£0.56 £0.47
30	BE972/99928 Available to backorder	[30] - Cover Screws	£0.56 £0.47
31	BE972/99929 Available to backorder	[31] - Cable Clamp Screw	£0.56 £0.47
32	BE972/99930 Available to backorder	[32] - Cable Gland Pg 13.5	£9.94 £8.28
33	BE972/99918 Available to backorder	[33] - Cable Gland Emv Pg9	£52.60 £43.83
34	BE972/99931 Available to backorder	[34] - Switch	£67.84 £56.53
35	BE972/99958 Available to backorder	[35] - Steel Bandage 202	£9.28 £7.73
36	BE972/99933 Available to backorder	[36] - Cable x 10 Metres	£244.56 £203.80
37	BE972/99961 Available to backorder	[37] - 230V 3 Pin Plug	£35.88 £29.90
38	BE972/99936 Available to backorder	[38] - Cable Connection Plug	£0.80 £0.67
39	BE972/99935 Available to backorder	[39] - Cable Connection Box	£1.22 £1.02
40	BE972/99934 Available to backorder	[40] - Cable Protector	£35.78 £29.82
