Belle BHB 23 - Top Cover Assembly

Name: Belle BHB 23 - Top Cover Assembly
SKU: BHB23TopCover-group
Price: 0.48 GBP
Availability: InStock

Part No. BHB23TopCover-group

Description

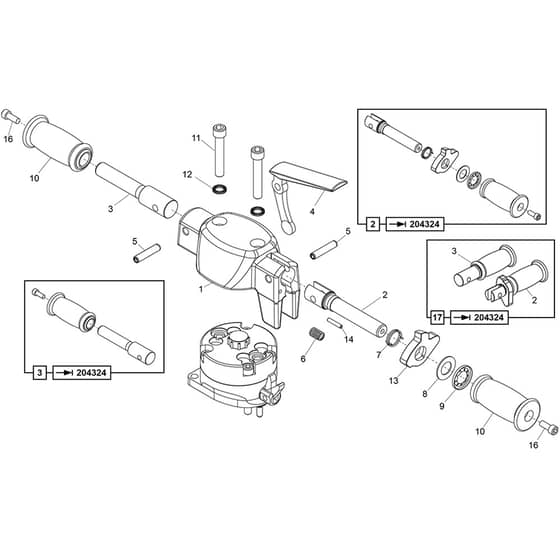

Belle BHB 23 - Top Cover Assembly - Parts Diagram

	Part No.	Details
2	BE01997 Available to backorder	[2] - Rh Handle V-Damped Now Use 971/190000	£37.94 £31.62
3	BE01998 Available to backorder	[3] - Lh Handle V-Damped	£34.46 £28.72
4	BE971/10800 Available to backorder	[4] - Kit Trigger	£73.08 £60.90
5	BE3/0074 Available to backorder	[5] - Spirol Pin 10 x 45	£2.77 £2.31
6	BE2/0062 Available to backorder	[6] - Comp Spring	£5.34 £4.45
7	BE01873 Available to backorder	[7] - Torsion Spring	£22.78 £18.98
8	BE10-404-2000 Available to backorder	[8] - Starlock Push-On Fastener	£1.06 £0.88
8	BE01931 Available to backorder	[8] - Bearing Washer	£13.63 £11.36
10	BE01999 Available to backorder	[10] - Dome Ended Handle Grip Now Use 971/20000	£11.92 £9.93
10	BE971/20000 Available to backorder	[10] - Breaker Handle Upgrade Kit	£228.84 £190.70
11	BE9/12034 Available to backorder	[11] - Bolt	£2.54 £2.12
12	BE10-406-1200 Available to backorder	[12] - Washer M12	£1.08 £0.90
13	BE971/99101 Available to backorder	[13] - Trigger Lock Lever	£61.80 £51.50
14	BE3/0075 Available to backorder	[14] - Spirol Pin 5 x 26	£0.58 £0.48
