Belle BHB 23 - Nose Assembly

Part No. BHB23Nose-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Belle BHB 23 - Nose Assembly

Belle BHB 23 - Nose Assembly

Description

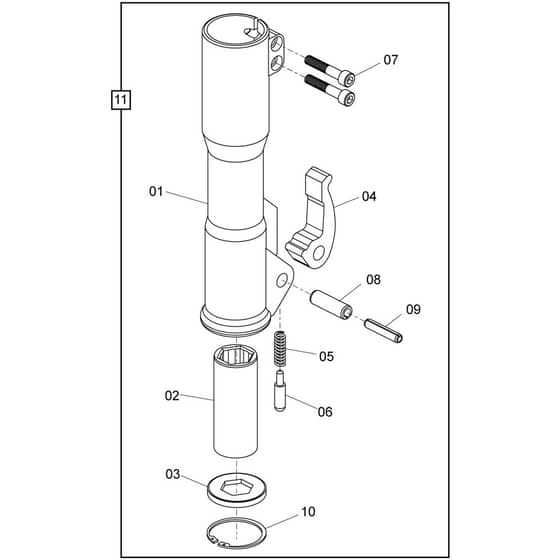

Belle BHB 23 - Nose Assembly - Parts Diagram

Ref.		Img.	Part No.	Details
	2		BE971/01503 Available to backorder	[2] - Bushing Hex 25 x 108		£216.84 £180.70
	3		BE971/01504 Available to backorder	[3] - Chisel Bellows Hex 25		£30.00 £25.00
	4		BE971/01505 Available to backorder	[4] - Latch		£236.16 £196.80
	5		BE971/00403 Available to backorder	[5] - Spring		£1.39 £1.16
	6		BE971/00404 Available to backorder	[6] - Lock Pin		£39.25 £32.71
	7		BE7/10037 Available to backorder	[7] - Screw		£1.51 £1.26
	8		BE971/00406 Available to backorder	[8] - Roll Pin 16 Dia x 50		£9.25 £7.71
	9		BE971/00407 Available to backorder	[9] - Roll Pin 10 Dia x 50		£7.03 £5.86
	10		BE971/99027 Available to backorder	[10] - Circlip 57 Dia x 2		£5.00 £4.17
	11		BE971/01500 Available to backorder	[11] - Nose Part 25 x 108 Complete		£633.60 £528.00

Description

Belle BHB 23 - Nose Assembly - Parts Diagram
