Belle BHB 19 - Top Cover Assembly

Description

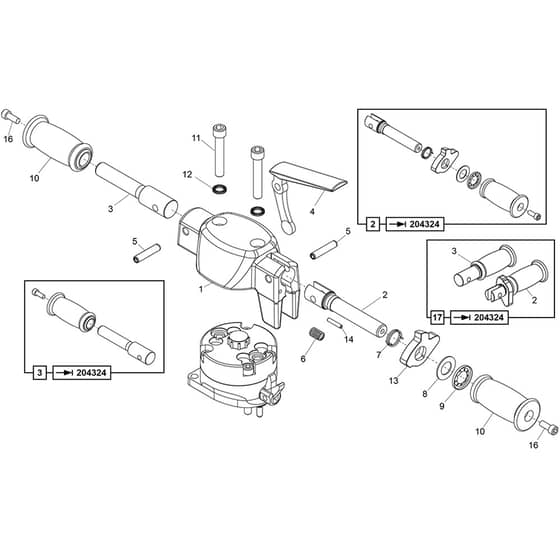

Belle BHB 19 - Top Cover Assembly - Parts Diagram

	Part No.	Details
2	BE02392 Available to backorder	[2] - Handlebar - Trigger Side From Serial No. 204325	£44.22 £36.85
3	BE02393 Available to backorder	[3] - Handlebar - Non-Trg From Serial No. 204325	£24.14 £20.12
5	BE3/0074 Available to backorder	[5] - Spirol Pin 10 x 45	£2.68 £2.23
6	BE2/0062 Available to backorder	[6] - Comp Spring	£5.16 £4.30
7	BE01873 Available to backorder	[7] - Torsion Spring	£22.02 £18.35
8	BE01931 Available to backorder	[8] - Bearing Washer	£13.18 £10.98
9	BE10-404-2000 Available to backorder	[9] - Starlock Push-On Fastener	£1.02 £0.85
10	BE01999 Available to backorder	[10] - Dome Ended Handle Grip Up To Serial No. 204324 Now Use 971/20000	£12.52 £10.43
10	BE971/99108 Available to backorder	[10] - Moulded Handle - Breaker From Serial No. 204325	£43.16 £35.97
11	BE9/12034 Available to backorder	[11] - Bolt	£2.46 £2.05
12	BE10-406-1200 Available to backorder	[12] - Washer Up To Serial No. 204324 M12	£1.04 £0.87
12	BE4/1218 Available to backorder	[12] - Washer From Serial No. 204325	£2.46 £2.05
13	BE971/99101 Available to backorder	[13] - Trigger Lock Lever	£64.42 £53.68
14	BE3/0075 Available to backorder	[14] - Spirol Pin 5 x 26	£0.56 £0.47
15	BE971/10800 Available to backorder	[15] - Kit Trigger	£76.16 £63.47
16	BE7/8015 Available to backorder	[16] - Screw From Serial No. 204325	£0.48 £0.40
17	BE971/20000 Available to backorder	[17] - Breaker Handle Upgrade Kit Up To Serial No. 204324	£214.68 £178.90
