Belle BHB 19 - Nose Assembly

Belle BHB 19 - Nose Assembly
Belle BHB 19 - Nose Assembly

Description

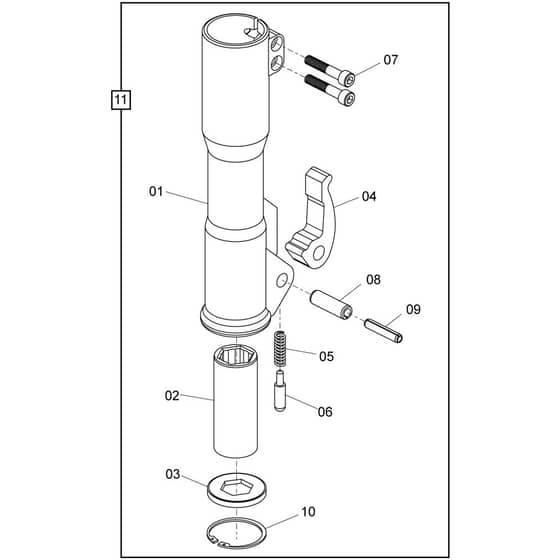

Belle BHB 19 - Nose Assembly - Parts Diagram

Ref. Img. Part No. Details
  1 [1] - Nose Part Hex 25
[1] - Nose Part Hex 25
BE971/01502
Available to backorder
[1] - Nose Part Hex 25
£263.40 £219.50

  2 [2] - Bushing Hex 25 x 108
[2] - Bushing Hex 25 x 108
BE971/01503
Available to backorder
[2] - Bushing Hex 25 x 108
£216.84 £180.70

  3 [3] - Chisel Bellows Hex 25
[3] - Chisel Bellows Hex 25
BE971/01504
Available to backorder
[3] - Chisel Bellows Hex 25
£29.00 £24.17

  4 [4] - Latch
[4] - Latch
BE971/01505
Available to backorder
[4] - Latch
£236.16 £196.80

  5 [5] - Spring
[5] - Spring
BE971/00403
Available to backorder
[5] - Spring
£1.34 £1.12

  6 [6] - Lock Pin
[6] - Lock Pin
BE971/00404
Available to backorder
[6] - Lock Pin
£37.94 £31.62

  7 [7] - Screw
[7] - Screw
BE7/10037
Available to backorder
[7] - Screw
£1.46 £1.22

  8 [8] - Roll Pin 16 Dia x 50
[8] - Roll Pin 16 Dia x 50
BE971/00406
Available to backorder
[8] - Roll Pin 16 Dia x 50
£8.94 £7.45

  9 [9] - Roll Pin 10 Dia x 50
[9] - Roll Pin 10 Dia x 50
BE971/00407
Available to backorder
[9] - Roll Pin 10 Dia x 50
£6.80 £5.67

  10 [10] - Circlip 57 Dia x 2
[10] - Circlip 57 Dia x 2
BE971/99027
Available to backorder
[10] - Circlip 57 Dia x 2
£4.84 £4.03


Description

Belle BHB 19 - Nose Assembly - Parts Diagram
