Belle BGF - BGF 34T

Name: Belle BGF - BGF 34T
SKU: BGFBGF34T-group
Price: 2.72 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

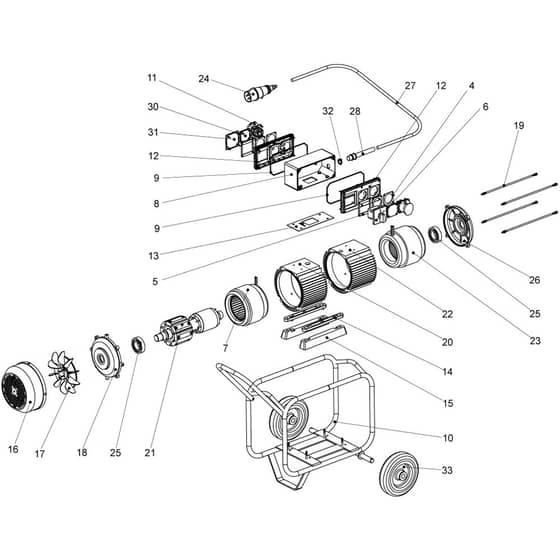

Belle BGF - BGF 34T - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
4	BE112.0.047 Available to backorder	[4] - Socket Joint	£7.86 £6.55
5	BE112.0.048 Available to backorder	[5] - Switch Joint	£9.26 £7.72
6	BE112.0.079 Available to backorder	[6] - 3 Phase Switch	£320.52 £267.10
7	BE112.0.080 Available to backorder	[7] - Assy Stator Generator Comp	£828.00 £690.00
8	BE112.0.081 Available to backorder	[8] - Plastic Box Connector	£40.94 £34.12
9	BE112.0.059 Available to backorder	[9] - Joint Box Cover Diam 3 x 580	£9.80 £8.17
10	BE112.0.082 Available to backorder	[10] - Chassis + Wheels	£300.00 £250.00
11	BE112.0.053 Available to backorder	[11] - Switch Socket 50 V - 32 A	£53.00 £44.17
12	BE112.0.038 Available to backorder	[12] - Box Cover (Switch +Socket)	£16.22 £13.52
13	BE112.0.058 Available to backorder	[13] - Plastic Box Joint	£13.66 £11.38
14	BE112.0.035 Available to backorder	[14] - Bottom Rubber Bracket	£24.48 £20.40
15	BE112.0.049 Available to backorder	[15] - Bottom Rubber	£15.92 £13.27
16	BE112.0.083 Available to backorder	[16] - Fan Cover	£95.74 £79.78
17	BE112.0.084 Available to backorder	[17] - Fan With Hose Clamp	£55.68 £46.40
18	BE112.0.085 Available to backorder	[18] - Generator Bearing Cover Seat	£134.46 £112.05
19	BE112.0.060 Available to backorder	[19] - Bolt Joint M6 x 318	£13.32 £11.10
20	BE112.0.086 Available to backorder	[20] - Generator Housing	£263.40 £219.50
21	BE112.0.087 Available to backorder	[21] - Complete Rotor Set	£1,354.80 £1,129.00
22	BE112.0.088 Available to backorder	[22] - Motor Housing	£263.40 £219.50
23	BE112.0.089 Available to backorder	[23] - Assy Stator Motor Comp.	£852.00 £710.00
24	BE112.0.090 Available to backorder	[24] - Cetac Plug 3P + T 16A	£27.84 £23.20
25	BE112.0.091 Available to backorder	[25] - Bearing 6207 2 Nse 35.72.17	£101.60 £84.67
26	BE112.0.092 Available to backorder	[26] - Motor Bearing Cover Seat	£132.68 £110.57
27	BE112.0.093 Available to backorder	[27] - Connection Cable 4 x 2.5 5 Mtr	£63.60 £53.00
28	BE112.0.051 Available to backorder	[28] - Packing Box Connector M20/16Rl	£41.60 £34.67
30	BE112.0.094 Available to backorder	[30] - Switch Socket Cover	£8.60 £7.17
31	BE112.0.095 Available to backorder	[31] - Switch Cover	£8.60 £7.17
32	BE112.0.052 Available to backorder	[32] - Metallic Nut M20	£3.26 £2.72
33	BE112.0.096 Available to backorder	[33] - Wheel 200x50	£56.88 £47.40
