Belle BGF - BGF 24

Name: Belle BGF - BGF 24
SKU: BGFBGF24-group
Price: 2.09 GBP
Availability: InStock

Part No. BGFBGF24-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

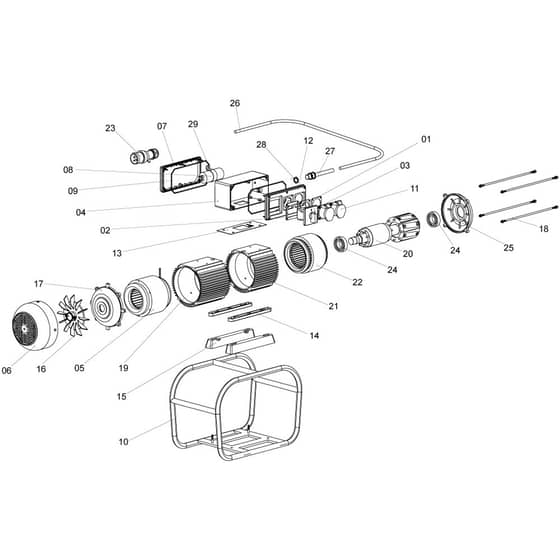

Belle BGF - BGF 24 - Parts Diagram

	Part No.	Details
1	BE112.0.047 Available to backorder	[1] - Socket Joint	£8.14 £6.78
2	BE112.0.048 Available to backorder	[2] - Switch Joint	£9.58 £7.98
3	BE112.0.055 Available to backorder	[3] - 1 Phase Switch Bhiplat 11.5 A	£269.04 £224.20
4	BE112.0.042 Available to backorder	[4] - Plastic Box Connector Orange	£34.34 £28.62
4	BE112.0.075 Available to backorder	[4] - Plastic Box Conector Red Bgf24 Red	£13.32 £11.10
5	BE112.0.033 Available to backorder	[5] - Assy Stator Motor Complete	£648.58 £540.48
6	BE112.0.044 Available to backorder	[6] - Fan Cover	£18.12 £15.10
7	BE112.0.041 Available to backorder	[7] - Blind Box Cover	£17.96 £14.97
8	BE112.0.056 Available to backorder	[8] - Condenser 35 Uf	£125.88 £104.90
9	BE112.0.059 Available to backorder	[9] - Joint Box Cover Diam 3 x 580	£10.14 £8.45
10	BE112.0.046 Available to backorder	[10] - Chassis	£176.52 £147.10
11	BE112.0.053 Available to backorder	[11] - Switch Socket 50 V - 32 A	£54.83 £45.69
12	BE112.0.072 Available to backorder	[12] - Plastic Box Cover Red 24 &24T Red	£13.32 £11.10
12	BE112.0.038 Available to backorder	[12] - Box Cover (Switch +Socket) Orange	£16.78 £13.98
13	BE112.0.058 Available to backorder	[13] - Plastic Box Joint	£14.14 £11.78
14	BE112.0.035 Available to backorder	[14] - Bottom Rubber Bracket	£25.32 £21.10
15	BE112.0.049 Available to backorder	[15] - Bottom Rubber	£16.46 £13.72
16	BE112.0.043 Available to backorder	[16] - Fan With Hose Clamp	£35.75 £29.79
17	BE112.0.036 Available to backorder	[17] - Motor Bearing Cover Seat	£80.76 £67.30
18	BE112.0.060 Available to backorder	[18] - Bolt Joint M6 x 318	£13.78 £11.48
19	BE112.0.040 Available to backorder	[19] - Motor Housing Orange	£232.44 £193.70
19	BE112.0.074 Available to backorder	[19] - Motor Housing Red Bgf24 Red	£166.80 £139.00
20	BE112.0.034 Available to backorder	[20] - Rotor Set Complete	£989.57 £824.64
21	BE112.0.039 Available to backorder	[21] - Generator Housing Orange	£266.76 £222.30
21	BE112.0.073 Available to backorder	[21] - Generator Housing Red Bgf24 Red	£142.44 £118.70
22	BE112.0.032 Available to backorder	[22] - Assy Stator Generator Comp	£567.94 £473.28
23	BE112.0.054 Available to backorder	[23] - Cetact Plug 2P + T 16A	£22.40 £18.67
24	BE112.0.057 Available to backorder	[24] - Bearing 6206 - 2Nse 30.62.16	£60.24 £50.20
25	BE112.0.037 Available to backorder	[25] - Generator Bearing Cover Seat	£79.56 £66.30
26	BE112.0.050 Available to backorder	[26] - Cable 3 x 2.5 De 5 Metres	£341.72 £284.77
27	BE112.0.051 Available to backorder	[27] - Packing Box Connector M20/16Rl	£43.03 £35.86
28	BE112.0.052 Available to backorder	[28] - Metallic Nut M20	£3.37 £2.81
29	BE112.0.045 Available to backorder	[29] - Clamp (One Fixing Side) 40 Dia	£2.51 £2.09
