Belle BGA Pump - Main Assembly - 7 Metre

Description

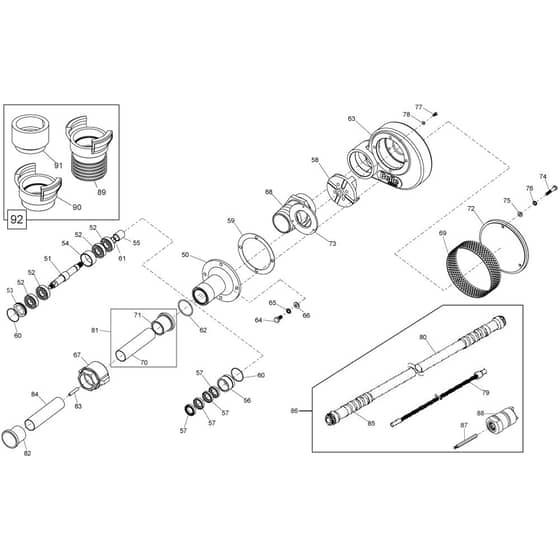

Belle BGA Pump - Main Assembly - 7 Metre - Parts Diagram

	Part No.	Details
50	BE165/00101 Available to backorder	[50] - Housing	£128.54 £107.12
51	BE165/00102 Available to backorder	[51] - Rotating Shaft	£36.78 £30.65
52	BE165/00103 Available to backorder	[52] - Bearing Skf -6204-2Z	£119.94 £99.95
53	BE165/00104 Available to backorder	[53] - Spacer	£17.18 £14.32
54	BE165/00105 Available to backorder	[54] - Sleeve	£14.32 £11.93
55	BE165/00106 Available to backorder	[55] - Bush Ina ( 25 x 20 x 30 )	£28.56 £23.80
56	BE165/00107 Available to backorder	[56] - Oil Seal Housing	£18.58 £15.48
57	BE165/00108 Available to backorder	[57] - Oil Seal Nok ( Ac1306E )	£39.98 £33.32
58	BE165/00109 Available to backorder	[58] - Impeller	£71.60 £59.67
59	BE165/00110 Available to backorder	[59] - Gasket	£17.18 £14.32
60	BE165/00111 Available to backorder	[60] - O Ring 2mm 44 S43	£2.84 £2.37
61	BE165/00112 Available to backorder	[61] - O Ring 2mm 17 S17	£2.84 £2.37
62	BE165/00113 Available to backorder	[62] - O Ring 3mm 52 G50	£2.84 £2.37
63	BE165/00114 Available to backorder	[63] - Main Body	£250.44 £208.70
64	BE7/10004 Available to backorder	[64] - Screw	£0.48 £0.40
92	BEOPB/02/DIO Available to backorder	[92] - Firemans Hose Coupling Option	£197.52 £164.60
