Belle BC 350 - Main Assembly

Name: Belle BC 350 - Main Assembly
SKU: BC350Main-group
Price: 11.2 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

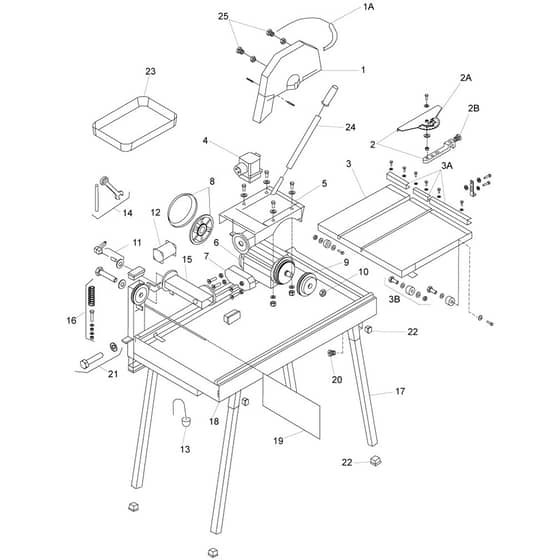

Belle BC 350 - Main Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
0	BE171.2.041 Available to backorder	[-] - Capacitor 40Mf 230V	£167.00 £139.17
0	BE171.2.040 Available to backorder	[-] - Capacitor 132Mf 110V	£200.28 £166.90
1	BE171.2.002 Available to backorder	[1a] - Cooling System Kit	£147.14 £122.62
1	BE171.2.001 Available to backorder	[1] - Blade Guard 350 Dia	£441.60 £368.00
2	BE171.2.005 Available to backorder	[2b] - Plastic Knob Kit ( 4 Unit )	£49.12 £40.93
2	BE171.2.003 Available to backorder	[2] - Complete Adj Angle Rule Kit	£103.00 £85.83
2	BE171.2.004 Available to backorder	[2a] - Plastic Knob Kit ( 4 Unit )	£51.54 £42.95
3	BE171.2.007 Available to backorder	[3a] - Complete Ruler Kits Nuts+Bolts	£89.02 £74.18
3	BE171.2.006 Available to backorder	[3] - Sliding Cart Belle Bc 350	£802.80 £669.00
3	BE171.2.008 Available to backorder	[3b] - Wheel Kits For Sliding Carts	£103.00 £85.83
4	BE171.2.010 Available to backorder	[4] - Switch 1Ph 110V 50Hz 16A	£573.60 £478.00
4	BE171.2.034 Available to backorder	[4] - Switch Intake Socket 3Ph 16A	£129.12 £107.60
4	BE171.2.009 Available to backorder	[4] - Switch-Intake Socket 1Ph 220V	£166.06 £138.38
5	BE171.2.011 Available to backorder	[5] - Complete Cutting Head Bc 350	£258.00 £215.00
6	BE171.2.013 Available to backorder	[6] - Motor 1Ph 3Hp 2.2Kw 110V 3000R	£591.60 £493.00
6	BE171.2.035 Available to backorder	[6] - Motor 3Ph 4Hp 3Kw 3000Rpm	£572.40 £477.00
6	BE171.2.012 Available to backorder	[6] - Motor 1Ph 3Hp 2.2Kw 220V 3000R	£603.60 £503.00
7	BE171.2.014 Available to backorder	[7] - Electrical Juction Box	£59.02 £49.18
8	BE171.2.015 Available to backorder	[8] - Motor Cooling Fan + Fan Cover	£72.74 £60.62
9	BE171.2.016 Available to backorder	[9] - Flange Kits	£124.84 £104.03
10	BE171.2.017 Available to backorder	[10] - Nut For Motor Shaft	£62.88 £52.40
11	BE171.2.018 Available to backorder	[11] - Blocking Handle 80P M10 x 50	£49.06 £40.88
12	BE171.2.020 Available to backorder	[12] - Water Pump 110V 50/60Hz 40W	£141.44 £117.87
12	BE171.2.019 Available to backorder	[12] - Water Pump 220/380V 50Hz 40W	£137.32 £114.43
13	BE171.2.021 Available to backorder	[13] - Rubber Plug With Chain	£39.24 £32.70
14	BE171.2.022 Available to backorder	[14] - Spanners For Motor Shaft+Hole	£71.64 £59.70
15	BE171.2.023 Available to backorder	[15] - Cutting Head Holding Beam	£253.32 £211.10
16	BE171.2.024 Available to backorder	[16] - Spring Kit For Cutting Head	£112.46 £93.72
17	BE171.2.025 Available to backorder	[17] - Leg Kits ( 4 Units )	£191.26 £159.38
18	BE171.2.026 Available to backorder	[18] - Water Basin Units	£1,264.80 £1,054.00
19	BE171.2.027 Available to backorder	[19] - Protection Curtains	£39.24 £32.70
20	BE171.2.028 Available to backorder	[20] - Plastic Knob Kit 4Units M10x20	£49.06 £40.88
21	BE171.2.029 Available to backorder	[21] - Screw Kit M20 For Cutting Head	£64.20 £53.50
22	BE171.2.030 Available to backorder	[22] - Plastic Plug Kits	£56.02 £46.68
23	BE171.2.031 Available to backorder	[23] - Plastic Tray For Water Pump	£13.44 £11.20
24	BE171.2.032 Available to backorder	[24] - Cutting Head Lever	£93.16 £77.63
25	BE171.2.033 Available to backorder	[25] - Nut Kits For Blade Guard	£57.74 £48.12
