Belle AFS 350 - Main Assembly

Name: Belle AFS 350 - Main Assembly
SKU: AFS350Main-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Belle AFS 350 - Main Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	BE87.2.074 Available to backorder	[1] - Cap - 64mm Black Te Vented	£7.96 £6.63
2	BE154.0.055 Available to backorder	[2] - Water Bottle - Afs350	£306.12 £255.10
3	BE4/1005 Available to backorder	[3] - Washer M10	£0.48 £0.40
4	BE8/10006 Available to backorder	[4] - Nut	£0.48 £0.40
5	BE154.0.035 Available to backorder	[5] - Carrier - Afs350 Water Bottle	£39.08 £32.57
6	BE02.0.036 Available to backorder	[6] - Setscrew M10 x 25 Ht Bzp	£0.48 £0.40
7	BE154.3.112 Available to backorder	[7] - Drive Kit - Afs350 Robin Eh41	£191.38 £159.48
7	BE154.3.103 Available to backorder	[7] - Drive Kit - Afs350 Honda	£189.96 £158.30
8	BE19.0.601 Available to backorder	[8] - Bung -Wheel Retainer	£0.50 £0.42
9	BE5/0011 Available to backorder	[9] - Seal Bonded 1/4" Bsp	£1.34 £1.12
10	BE14.0.533 Available to backorder	[10] - Adaptor - Hydraulic 1/4" x 1/4	£8.08 £6.73
11	BE14.0.102 Available to backorder	[11] - Adaptor- 1/4" Bspp F/F Swivel	£7.72 £6.43
12	BE14.0.201 Available to backorder	[12] - Elbow - 1/4"Bspp M/F Swivel	£12.08 £10.07
13	BE14.0.590 Available to backorder	[13] - 1/4"Bsp Quick Coupling Body	£48.20 £40.17
14	BE14.0.591 Available to backorder	[14] - Female Nipple	£22.92 £19.10
15	BE14.0.595 Available to backorder	[15] - Hosetail 1/4" Male x 3/8" End	£6.42 £5.35
16	BE15.0.064 Available to backorder	[16] - Haso Clip Wade Oc 10	£3.46 £2.88
17	BE154.0.058 Available to backorder	[17] - Hose - Water Spray (870mm)	£5.96 £4.97
18	BE154.0.048 Available to backorder	[18] - Decal Blade Speed + Direct'N	£32.36 £26.97
19	BE15.0.007 Available to backorder	[19] - Ball Valve 1/4" Bsp F/F	£24.26 £20.22
20	BE14.0.103 Available to backorder	[20] - Y Connector - 1/4"Bspt(Fmf)	£12.46 £10.38
21	BE15.9.026 Available to backorder	[21] - 1/4" Elbow M/F 90Deg	£10.86 £9.05
22	BE14.0.619 Available to backorder	[22] - Hosetail - 1/4" Bspp (M) x 1/4	£6.02 £5.02
23	BE154.0.011 Available to backorder	[23] - Tube - Afs350 W/Spray 180 Lg	£0.66 £0.55
24	BE154.3.105 Available to backorder	[24] - Water Bottle Assy Orange	£229.68 £191.40
25	BE154.0.053 Available to backorder	[25] - Front Cover Yellow	£148.26 £123.55
25	BE154.0.052 Available to backorder	[25] - Front Cover Blue	£148.26 £123.55
25	BE154.0.051 Available to backorder	[25] - Front Cover Dark Green	£148.26 £123.55
25	BE154.0.062 Available to backorder	[25] - Front Cover	£150.16 £125.13
25	BE154.0.054 Available to backorder	[25] - Front Cover Red	£148.26 £123.55
25	BE154.0.050 Available to backorder	[25] - Front Cover Ap Green	£148.26 £123.55
26	BE07.0.403 Available to backorder	[26] - M5 x 16 Slot Head	£0.48 £0.40
27	BE4/5004 Available to backorder	[27] - Washer	£0.48 £0.40
28	BE4/5002 Available to backorder	[28] - Washer M5	£2.42 £2.02
29	BE152.0.075 Available to backorder	[29] - Spanner - 38mm Open Ended	£66.76 £55.63
30	BE152.0.074 Available to backorder	[30] - Spannner - 17-22mm Open Ended	£38.98 £32.48
31	BE21.0.140 Available to backorder	[31] - Screw Pan Head Pozi-Drive 5/16	£0.48 £0.40
32	BE21/0236 Available to backorder	[32] - Exhaust Deflector	£9.72 £8.10
33	BE29.1.178 Available to backorder	[33] - Engine - Honda Gx270 Qxc	£1,532.40 £1,277.00
33	BE29.1.247 Available to backorder	[33] - 13 Hp Robin Engine Eh41 Duoa	£1,590.00 £1,325.00
33	BE20/0107 Available to backorder	[33] - Honda Gx390 Ut2 Qxc4 From 082946	£1,551.60 £1,293.00
33	BE173/02000 Available to backorder	[33] - Kit Replacement Gx390 Eng(Comp Up To 082945	£1,575.60 £1,313.00
34	BE19.0.373 Available to backorder	[34] - 4 In 1 Label Gx390	£0.48 £0.40
35	BE154.0.069 Available to backorder	[35] - Engine Puller Gx270	£39.64 £33.03
35	BE154.0.056 Available to backorder	[35] - Engine Puller - Afs350 Honda Gx270 Up To 115420	£55.14 £45.95
36	BE154.0.076 Available to backorder	[36] - Engine Puller	£77.26 £64.38

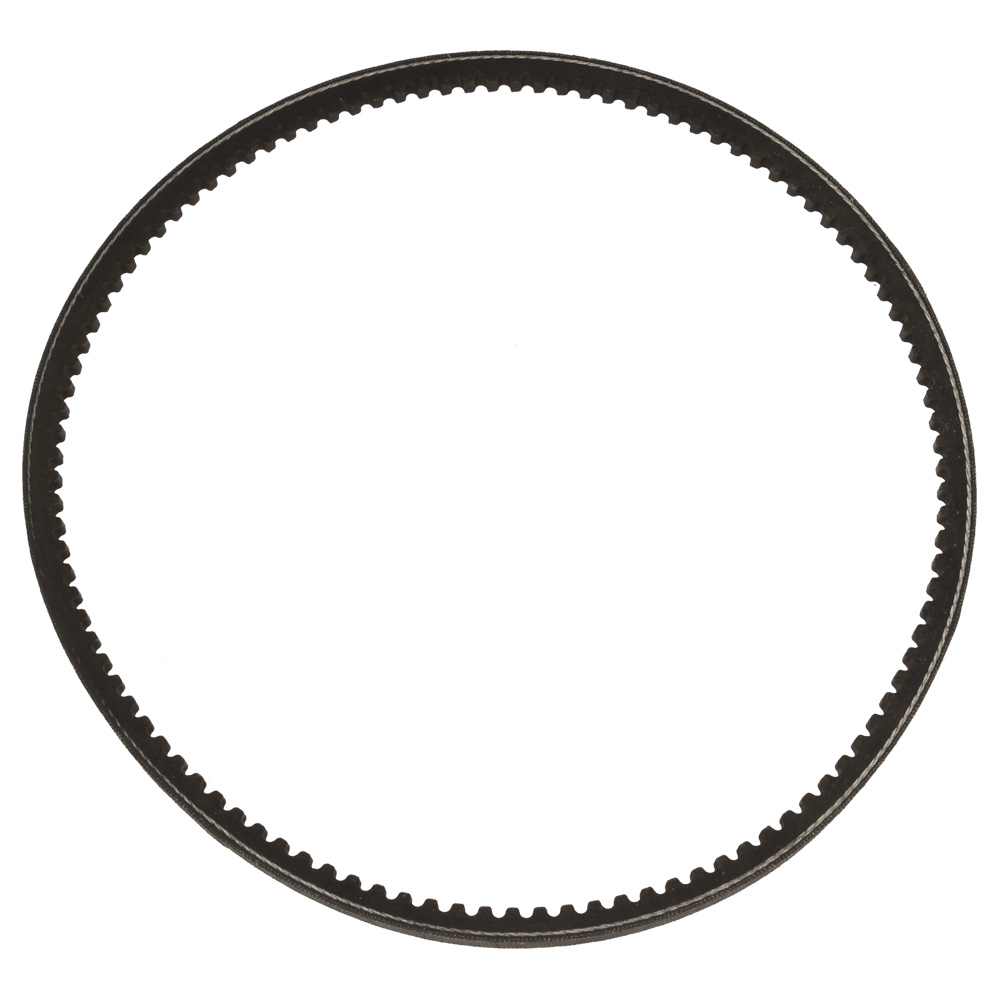

37	BE11.0.078 Available to backorder	[37] - Belt Spz 730 Cr	£7.40 £6.17
38	BE10.3.000 Available to backorder	[38] - Pulley Spz 4 x 80	£70.20 £58.50
39	BE06.8.006 Available to backorder	[39] - Key 1/4"Sq x 1 1/2"	£9.32 £7.77
40	BE21/0255 Available to backorder	[40] - Bush Taperlock 1210-1	£18.24 £15.20
42	BE154.0.066 Available to backorder	[42] - Spacer Bar - Afs350	£28.64 £23.87
43	BE00.0.867 Available to backorder	[43] - Coach Bolt M10 x 60 Ht Bzp	£0.68 £0.57
43	BE00.0.851 Available to backorder	[43] - Coach Bolt M10 x 65 Bzp	£0.80 £0.67
44	BE154.0.096 Available to backorder	[44] - Engine Packer - Robin Eh41	£36.58 £30.48
45	BE154.0.012 Available to backorder	[45] - Pad Anti-Vibration	£40.02 £33.35
46	BE21.0.316 Available to backorder	[46] - Lever - Actuator Control	£50.28 £41.90
47	BE154.0.085 Available to backorder	[47] - Control Cable Up To 009290	£47.06 £39.22
47	BE154.0.105 Available to backorder	[47] - Cable Bedplate-Raise-Lower From 009291	£34.60 £28.83
48	BE13.7.075 Available to backorder	[48] - Switch - Emergency Stop+ Red Up To 115420	£36.56 £30.47
48	BE13.7.077 Available to backorder	[48] - On Off Switch From 115421	£72.26 £60.22
50	BE152.3.107 Available to backorder	[50] - Handle + Grip - Efs Orange Ap Green	£548.40 £457.00
51	BE19.0.701 Available to backorder	[51] - Handle Grip 7/8" I/D Black Pvc	£6.00 £5.00
52	BE19.0.959 Available to backorder	[52] - Cable - Gas Strut Actuator	£61.86 £51.55
53	BE21/0243 Available to backorder	[53] - Cable Holder Up To 115420	£6.42 £5.35
54	BE7/10010 Available to backorder	[54] - Screw	£0.48 £0.40
55	BE154.0.060 Available to backorder	[55] - Decal -Afs 350	£16.86 £14.05
56	BE07.0.308 Available to backorder	[56] - Socket Head Shoulder Screw 8mm Up To 115420	£11.72 £9.77
57	BE06.3.003 Available to backorder	[57] - Key 8 x 7 x 30mm	£3.76 £3.13
58	BE10.8.072 Available to backorder	[58] - Taperlock Bush 1210 x 30mm	£19.64 £16.37
59	BE154.3.113SP Available to backorder	[59] - Blade Guard + Water Spray Assy From 115421	£475.20 £396.00
60	BE07.0.085 Available to backorder	[60] - Skt Hd Capscrew M12x100 Gr12.9	£1.94 £1.62
61	BE4/1204 Available to backorder	[61] - Washer M12	£0.48 £0.40
62	BE8/12006 Available to backorder	[62] - Nut	£0.48 £0.40
63	BE8/8008 Available to backorder	[63] - Nut	£0.48 £0.40
64	BE4/6001 Available to backorder	[64] - Washer M6	£0.48 £0.40
66	BE152.0.084 Available to backorder	[66] - Bracket - Efs 300 Water Flap	£32.22 £26.85
67	BE00.0.025 Available to backorder	[67] - Bolt M8 x 60 Ht Bzp	£0.48 £0.40
68	BE02.0.013 Available to backorder	[68] - Setscrew M6 x 18	£1.32 £1.10
70	BE152.0.086 Available to backorder	[70] - Water Flap - Efs300	£5.28 £4.40
71	BE154.0.000 Available to backorder	[71] - Engine Bedplate Wa	£567.60 £473.00
72	BE154.0.097 Available to backorder	[72] - Belt Guard Backplate - Afs350	£151.28 £126.07
73	BE21.0.029 Available to backorder	[73] - Rubber "U" Channel Orange	£39.66 £33.05
74	BE135.0.070 Available to backorder	[74] - Belt Guard Blue From 115421	£678.00 £565.00
75	BE4/8006 Available to backorder	[75] - Washer M8	£0.48 £0.40
76	BE4/8003 Available to backorder	[76] - Washer M8	£0.71 £0.59
77	BE7/8008 Available to backorder	[77] - Screw	£0.48 £0.40
78	BE21.0.259 Available to backorder	[78] - Insert 1" Plastic	£0.48 £0.40
79	BE152.0.072 Available to backorder	[79] - Lever - Gas Strut Actuating Up To 115420	£64.12 £53.43
80	BE19.0.090 Available to backorder	[80] - Compression Spring Up To 115420	£2.16 £1.80
81	BE154.0.080 Available to backorder	[81] - Chassis Wa - Afs350	£1,148.40 £957.00
82	BE8/16005 Available to backorder	[82] - Nut	£2.42 £2.02
83	BE4/1601 Available to backorder	[83] - Washer M16	£0.48 £0.40
84	BE00.0.062 Available to backorder	[84] - Bolt M16 x 55 Ht Bzp	£1.02 £0.85
85	BE154.0.063 Available to backorder	[85] - Front Axle Wa	£100.04 £83.37
86	BE9/6003 Available to backorder	[86] - Bolt Up To 115420	£0.48 £0.40
87	BE19.0.604 Available to backorder	[87] - Wheel - 125 Dia Black	£20.28 £16.90
88	BE02.0.010 Available to backorder	[88] - Setscrew M6 x 10 Ht Bzp	£0.48 £0.40
89	BE21.0.312 Available to backorder	[89] - Collar - 15.00 Dia Shaft+ Bzp	£15.86 £13.22
90	BE154.0.037 Available to backorder	[90] - Rear Axle	£30.64 £25.53
91	BE19.0.580 Available to backorder	[91] - Wheel 8" Black Epr 200 20/51	£25.22 £21.02
92	BE05.0.030 Available to backorder	[92] - Washer M20 Form A Bzp M20	£0.48 £0.40
93	BE9/6001 Available to backorder	[93] - Bolt	£0.48 £0.40
94	BE21.0.092 Available to backorder	[94] - Shaft Collar 20mm	£8.64 £7.20
95	BE154.0.046 Available to backorder	[95] - Decal - Depth Indicator	£8.60 £7.17
96	BE01.5.019 Available to backorder	[96] - Arbor Nut 1"Unf L/H	£16.72 £13.93
97	BE71.0.088 Available to backorder	[97] - Blade Pin	£16.82 £14.02
98	BE109.0.026 Available to backorder	[98] - Clamping Plate	£41.12 £34.27
99	BE02.0.016 Available to backorder	[99] - Setscrew M6 x 25 Hex Hd Up To 115420	£0.48 £0.40
100	BE02.0.038 Available to backorder	[100] - Setscrew M10 x 35 Hex Hd	£0.48 £0.40
101	BE02.0.039 Available to backorder	[101] - Setscrew M10 x 40 Hex Hd	£0.48 £0.40
102	BE12.0.338 Available to backorder	[102] - Bearing - Fytb30Tf	£81.26 £67.72
103	BE8/6001 Available to backorder	[103] - Nut Up To 115420	£0.66 £0.55
104	BE154.0.015 Available to backorder	[104] - Arbor Shaft Wa	£191.28 £159.40
105	BE152.0.073 Available to backorder	[105] - Pivot Block - Gas Strut Up To 115420	£30.64 £25.53
106	BE00.0.043 Available to backorder	[106] - Bolt M10 x 100 Ht Bzp	£0.96 £0.80
107	BE8/6007 Available to backorder	[107] - Nut	£0.48 £0.40
108	BE152.0.082 Available to backorder	[108] - Spacer - Strut End	£136.02 £113.35
109	BE152.0.143 Available to backorder	[109] - Bracket Wa Pivot Bar Mtg	£170.92 £142.43
110	BE152.0.083 Available to backorder	[110] - Dust Cover - Gas Strut	£19.32 £16.10
111	BE21.0.343 Available to backorder	[111] - Arm - Gas Strut Release Head From 115421	£19.38 £16.15
112	BE14.0.582 Available to backorder	[112] - Hosetail 1/2"Bsp x 3/8" Tail	£10.96 £9.13
113	BE14.0.205 Available to backorder	[113] - Elbow 1/2" Bsp F/F	£17.72 £14.77
114	BE14.0.622 Available to backorder	[114] - Adaptor 1/2"Bsp x 1/2"Npt M/M	£26.12 £21.77
115	BE15.9.029 Available to backorder	[115] - Adaptor 1/2"Nps - 3/4"Nh F/F	£22.46 £18.72
116	BE21.0.344 Available to backorder	[116] - Release Head - Gas Strut From 115421	£32.42 £27.02
117	BE9/8003 Available to backorder	[117] - Bolt From 115421	£0.48 £0.40
118	BE7/8012 Available to backorder	[118] - Screw	£0.48 £0.40
119	BE21.0.322 Available to backorder	[119] - Rigid Blocking Gas Spring Up To 115420	£293.40 £244.50
119	BE21.0.346 Available to backorder	[119] - Locking Gas Strut From 115421	£279.00 £232.50
120	BE02.0.023 Available to backorder	[120] - Setscrew M8 x 20mm Ht Bzp	£0.48 £0.40
121	BE154.0.083 Available to backorder	[121] - Gas Strut Mounting Bracket	£106.46 £88.72
122	BE21.0.313 Available to backorder	[122] - Grommet	£6.72 £5.60
123	BE21.0.295 Available to backorder	[123] - Rubber Grommet - 14mm	£3.04 £2.53
124	BE12.1.261 Available to backorder	[124] - Glacier Bush Mb 2020 Du	£4.40 £3.67
125	BE7/8047 Available to backorder	[125] - Screw	£0.48 £0.40
126	BE154.0.106 Available to backorder	[126] - Afs Saw - Gas Strut/Cable Assy Now Use S0141	£266.16 £221.80
127	BE154.0.107 Available to backorder	[127] - Gas Strut Mount Bracket-Oct 04	£69.14 £57.62
128	BE154/00700 Available to backorder	[128] - Tilt Stop Wa	£21.38 £17.82
129	BE7/8026 Available to backorder	[129] - Screw	£0.66 £0.55
130	BE8/8001 Available to backorder	[130] - Nut	£0.48 £0.40
131	BE7/8011 Available to backorder	[131] - Screw	£0.48 £0.40
132	BE8/8002 Available to backorder	[132] - Nut	£1.54 £1.28
133	BES0141 Available to backorder	[133] - Kit-Afs Saw Gas Strut/Cable	£364.80 £304.00
