Belle 20-25X - Nose Assembly

Name: Belle 20-25X - Nose Assembly
SKU: 2025XNose-group
Price: 0.4 GBP
Availability: InStock

Part No. 2025XNose-group

Description

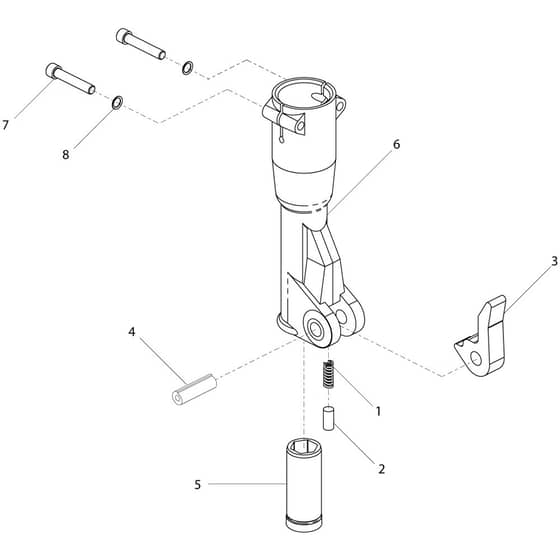

Belle 20-25X - Nose Assembly - Parts Diagram

	Part No.	Details
0	BES/KIT2026/N Available to backorder	[-] - Nose Assy Repair Kit 2026 U/D	£189.60 £158.00
1	BE0067863 Available to backorder	[1] - Spring F. 0242	£30.94 £25.78
2	BE00446 Available to backorder	[2] - Latch Pin (2025)	£12.89 £10.74
3	BE00378 Available to backorder	[3] - Latch 2025	£85.32 £71.10
4	BE00583 Available to backorder	[4] - Spirol Pin 3/4"x 2.5" Hwk	£56.60 £47.17
5	BE01817 Available to backorder	[5] - Hex Guide Bush (2023 Q)	£129.96 £108.30
6	BE01819 Available to backorder	[6] - Nose Assy C/W Bush 2023 Q	£421.68 £351.40
7	BE10-330-1265 Available to backorder	[7] - M12 x 65 Cap Screw	£1.49 £1.24
8	BE10-202-5157 Available to backorder	[8] - O Ring 202-515-4470	£0.48 £0.40
