Belle 20-25X - Cylinder Assembly

Description

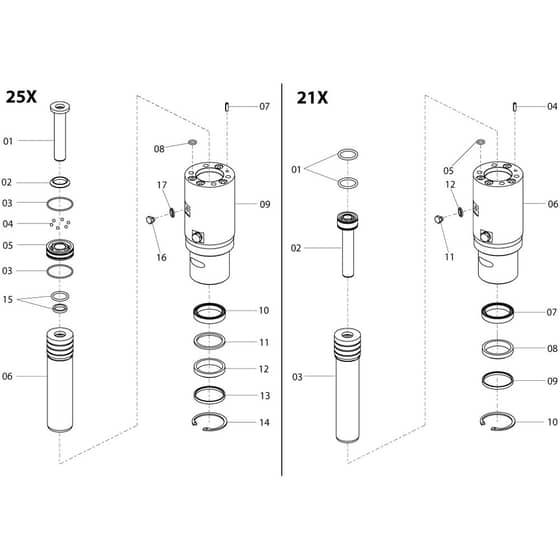

Belle 20-25X - Cylinder Assembly - Parts Diagram

	Part No.	Details
0	BES/KIT2026/B2 Available to backorder	[-] - Mk2 2026 Bottom Assy Service K	£91.94 £76.62
1	BE01674 Available to backorder	[1] - Injector Tube 2025 Mk2	£151.80 £126.50
2	BE00481 Available to backorder	[2] - Retaining Washer	£21.96 £18.30
3	BE10-204-0449 Available to backorder	[3] - O' Ring 204-044-4490	£20.88 £17.40
4	BE00484 Available to backorder	[4] - Balls 3/16" Dia.Grade 10	£0.56 £0.47
5	BE01673 Available to backorder	[5] - Check Plate 2025 Mk2	£70.80 £59.00
6	BE02036 Available to backorder	[6] - Piston 2023/2026Ud/2025x	£524.40 £437.00
7	BE10-500-0515 Available to backorder	[7] - Roll Pin M5 x 15 Location	£0.48 £0.40
8	BE10-202-6369 Available to backorder	[8] - O Ring 202-636-4490	£1.66 £1.38
9	BE02341 Available to backorder	[9] - Cyl Assy 2023/2025x/2026Ud	£705.60 £588.00
10	BE00374 Available to backorder	[10] - U'Ring Freu Ref 014359	£5.76 £4.80
11	BE01537 Available to backorder	[11] - Seal Support Washer	£21.23 £17.69
13	BE01535 Available to backorder	[13] - Spacer/Support Washer	£21.05 £17.54
14	BE10-611-5700 Available to backorder	[14] - Internal Balanced Lug Clp	£9.84 £8.20
15	BE02037 Available to backorder	[15] - Glydring 25212-0200-22N	£21.82 £18.18
16	BE6/2014 Available to backorder	[16] - Blanking Plug 1/8" Bsp Special	£16.20 £13.50
17	BE10/1000510 Available to backorder	[17] - Bonded Seal 1/8"Bsp.	£1.26 £1.05
