Belle 20-25 PAN - Top Cover Assembly

Part No. 2025PANTopCover-group
Belle 20-25 PAN - Top Cover Assembly
Belle 20-25 PAN - Top Cover Assembly

Description

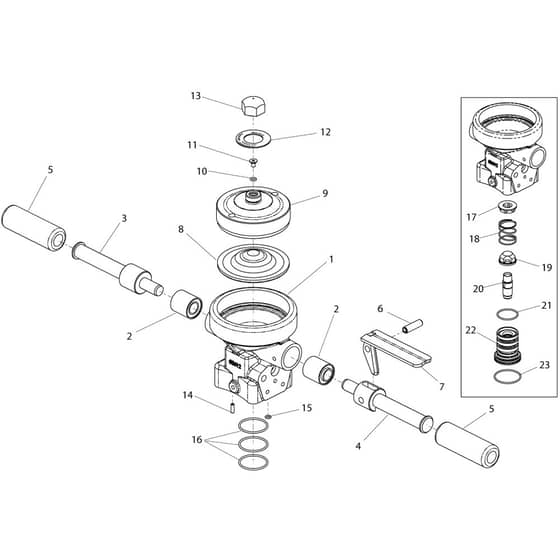

Belle 20-25 PAN - Top Cover Assembly - Parts Diagram

Ref. Img. Part No. Details
  1 [1] - Head Complete 2025
[1] - Head Complete 2025
BE00612
Available to backorder
[1] - Head Complete 2025
£443.10 £369.25

  2 [2] - Flexible Handle Bush
[2] - Flexible Handle Bush
BE01113
Available to backorder
[2] - Flexible Handle Bush
£99.12 £82.60

  3 [3] - Handle (L.H.)
[3] - Handle (L.H.)
BE00356
Available to backorder
[3] - Handle (L.H.)
£37.28 £31.07

  4 [4] - Handle (R.H.)
[4] - Handle (R.H.)
BE00357
Available to backorder
[4] - Handle (R.H.)
£62.88 £52.40

  5 [5] - Hand Grip
[5] - Hand Grip
BE00681
Available to backorder
[5] - Hand Grip
£43.28 £36.07

  6 [6] - Roll Pin M10 x 35
[6] - Roll Pin M10 x 35
BE10-500-1035
Available to backorder
[6] - Roll Pin M10 x 35
£1.12 £0.93

  7 [7] - Trigger
[7] - Trigger
BE01765
Available to backorder
[7] - Trigger
£256.68 £213.90

  8 [8] -
[8] -
BE00354
Available to backorder
[8] -
£61.92 £51.60

  9 [9] - Acc Charging Cap 2025
[9] - Acc Charging Cap 2025
BE00352
Available to backorder
[9] - Acc Charging Cap 2025
£135.60 £113.00

  10 [10] - O Ring 204-006-4470
[10] - O Ring 204-006-4470
BE10-204-0067
Available to backorder
[10] - O Ring 204-006-4470
£0.68 £0.57

  11 [11] - Filler Screw Socket Head
[11] - Filler Screw Socket Head
BE10-370-0610
Available to backorder
[11] - Filler Screw Socket Head
£0.48 £0.40

  13 [13] - Nylon Charging Cap
[13] - Nylon Charging Cap
BE00503
Available to backorder
[13] - Nylon Charging Cap
£20.32 £16.93

  14 [14] - Roll Pin M5 x 15 Location
[14] - Roll Pin M5 x 15 Location
BE10-500-0515
Available to backorder
[14] - Roll Pin M5 x 15 Location
£0.41 £0.34

  15 [15] - O Ring 200-010-4490
[15] - O Ring 200-010-4490
BE10-200-0109
Available to backorder
[15] - O Ring 200-010-4490
£0.85 £0.71

  16 [16] - O Ring 202-655-4490
[16] - O Ring 202-655-4490
BE10-202-6559
Available to backorder
[16] - O Ring 202-655-4490
£4.18 £3.48

  17 [17] - Spacer Nylon
[17] - Spacer Nylon
BE00623
Available to backorder
[17] - Spacer Nylon
£10.51 £8.76

  18 [18] - Spring
[18] - Spring
BE00510
Available to backorder
[18] - Spring
£25.51 £21.26

  19 [19] - Oscillator Cap
[19] - Oscillator Cap
BE00367
Available to backorder
[19] - Oscillator Cap
£74.76 £62.30

  20 [20] - Oscillator Spool
[20] - Oscillator Spool
BE00616
Available to backorder
[20] - Oscillator Spool
£121.80 £101.50

  21 [21] - Oscillator Body
[21] - Oscillator Body
BE00615
Available to backorder
[21] - Oscillator Body
£342.96 £285.80

  22 [22] - O Ring 202-653-4470
[22] - O Ring 202-653-4470
BE10-202-6537
Available to backorder
[22] - O Ring 202-653-4470
£0.48 £0.40

  23 [23] - O Ring 202-657-4490
[23] - O Ring 202-657-4490
BE10-202-6579
Available to backorder
[23] - O Ring 202-657-4490
£0.77 £0.64


Description

Belle 20-25 PAN - Top Cover Assembly - Parts Diagram
