Belle 20-18 PAN - Cylinder Assembly

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Belle 20-18 PAN - Cylinder Assembly

Belle 20-18 PAN - Cylinder Assembly

Description

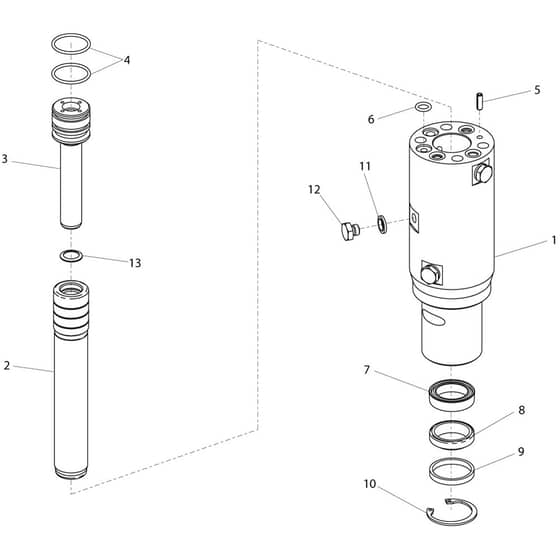

Belle 20-18 PAN - Cylinder Assembly - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		BE02342 Available to backorder	[1] - Cyl Assy 2018/2021x/2021Ud		£987.60 £823.00
	2		BE02345 Available to backorder	[2] - Piston - 2018		£335.04 £279.20
	3		BE01079 Available to backorder	[3] - Injector Tube		£142.08 £118.40
	4		BE10-202-6509 Available to backorder	[4] - O Ring 202-650-4490		£0.56 £0.47
	5		BE10-500-0515 Available to backorder	[5] - Roll Pin M5 x 15 Location		£0.48 £0.40
	6		BE10-202-6369 Available to backorder	[6] - O Ring 202-636-4490		£1.66 £1.38
	7		BE01516 Available to backorder	[7] - U'Ring Freu Ref 014353		£28.87 £24.06
	8		BE01517 Available to backorder	[8] - Wiper Seal		£18.60 £15.50
	9		BE01602 Available to backorder	[9] - Support Ring		£17.64 £14.70
	10		BE10-610-4100 Available to backorder	[10] - Circlip Internal 41mm Dia		£1.93 £1.61
	11		BE10/1000510 Available to backorder	[11] - Bonded Seal 1/8"Bsp.		£1.26 £1.05
	12		BE6/2014 Available to backorder	[12] - Blanking Plug 1/8" Bsp Special		£16.20 £13.50
	13		BE02343 Available to backorder	[13] - Glyde Ring Assy - ( 2018 )		£20.22 £16.85

Description

Belle 20-18 PAN - Cylinder Assembly - Parts Diagram
