Belle 20-12 PAN - Main Assembly

Name: Belle 20-12 PAN - Main Assembly
SKU: 2012PANMain-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

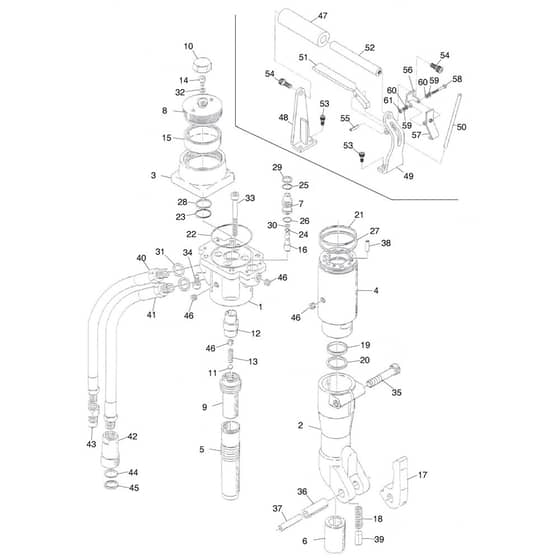

Belle 20-12 PAN - Main Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	BEM2LTC101A0 Available to backorder	[1] - Valve Body - 2012	£1,190.40 £992.00
2	BEM2LTC102A0 Available to backorder	[2] - Nose 2012 Pick W/O Bush	£801.60 £668.00
3	BEM2LTD103A0 Available to backorder	[3] - Shell - 2012	£644.40 £537.00
4	BEM2LTD104B0 Available to backorder	[4] - Cylinder - 2012	£1,192.80 £994.00
6	BEM2LTE107A0 Available to backorder	[6] - Chisel Bushing	£152.08 £126.73
8	BEM2LTE109A0 Available to backorder	[8] - Lid ( S )	£284.40 £237.00
9	BEM2LTE124A0 Available to backorder	[9] - Inner Tube	£269.76 £224.80
10	BEM2LTE115A0 Available to backorder	[10] - Cap	£111.94 £93.28
11	BEMQB-5/16 Available to backorder	[11] - Steel Ball	£3.14 £2.62
12	BEMIXTE108A2 Available to backorder	[12] - Control Valve	£198.94 £165.78
13	BEMIHTE107A0 Available to backorder	[13] - Spring	£19.66 £16.38
14	BEM1120-413-A Available to backorder	[14] - Cap Bolt	£10.32 £8.60
15	BEMB02E006A1 Available to backorder	[15] - Diaphragm	£107.96 £89.97
16	BEMIKTE111A1 Available to backorder	[16] - Valve Rod	£78.66 £65.55
17	BEM1120-419-A Available to backorder	[17] - Latch	£113.20 £94.33
18	BEM1110-410-01 Available to backorder	[18] - Lock Spring	£15.18 £12.65
19	BEMUP-30406 Available to backorder	[19] - U-Cup Packing	£17.32 £14.43
20	BEMDS-30385 Available to backorder	[20] - Dust Seal Lbi30x38x5	£16.66 £13.88
21	BEMOG-60 Available to backorder	[21] - O' Ring G60	£2.42 £2.02
22	BEMOS-70 Available to backorder	[22] - O' Ring S70	£6.88 £5.73
23	BEMOP-22 Available to backorder	[23] - O' Ring P22	£1.26 £1.05
24	BEMOP-5 Available to backorder	[24] - O' Ring P5	£0.48 £0.40
25	BEMOP-14 Available to backorder	[25] - O' Ring P14	£0.64 £0.53
26	BEMOP-12.5 Available to backorder	[26] - O' Ring P12.5	£0.77 £0.64
27	BEMOBG-60 Available to backorder	[27] - Back-Up Ring	£15.64 £13.03
28	BEMOBP-22 Available to backorder	[28] - Back-Up Ring	£5.16 £4.30
29	BEMOBP-14 Available to backorder	[29] - Back-Up Ring	£3.04 £2.53
30	BEMOBP-5 Available to backorder	[30] - Back-Up Ring	£3.12 £2.60
31	BEMWS-18 Available to backorder	[31] - Seal Washer W18S1	£5.06 £4.22
32	BEMWS-06 Available to backorder	[32] - Washer	£2.58 £2.15
33	BE7/8075 Available to backorder	[33] - Screw	£1.06 £0.88
35	BE7/10049 Available to backorder	[35] - Screw	£9.18 £7.65
36	BEMPR-16X50 Available to backorder	[36] - Spring Pin 16 x 50	£19.06 £15.88
37	BE3/0078 Available to backorder	[37] - Spring Pin 10 Dia x 50	£2.36 £1.97
38	BE3/0079 Available to backorder	[38] - Spring Pin 6 Dia x 20	£0.77 £0.64
42	BE00546 Available to backorder	[42] - Coupling 3/8" Bsp Female	£80.80 £67.33
43	BE00545 Available to backorder	[43] - Coupling 3/8" Bsp Male	£45.58 £37.98
46	BE182-99529 Available to backorder	[46] - Taperplug 1/8"	£3.36 £2.80
47	BEM1120-414 Available to backorder	[47] - Handle Grip	£59.80 £49.83
48	BEM2LTE139A0 Available to backorder	[48] - Handle Stay ( B)	£378.00 £315.00
48	BEM2LTZ163A0 Available to backorder	[48] - Handle Stay ( Rs )	£608.40 £507.00
49	BEM2LTZ162A0 Available to backorder	[49] - Handle Stay ( Ls )	£340.80 £284.00
49	BEM2LTE140A0 Available to backorder	[49] - Steel Handle Stay (B)	£192.28 £160.23
50	BEM2LTE114A0 Available to backorder	[50] - Push Rod	£37.86 £31.55
51	BEM2LTE113A0 Available to backorder	[51] - Control Lever	£134.48 £112.07
51	BEM2LTZ167A0 Available to backorder	[51] - Control Lever	£176.88 £147.40
52	BEM1120-422 Available to backorder	[52] - Handle Pipe	£25.74 £21.45
53	BE7/16018 Available to backorder	[53] - Screw	£0.48 £0.40
54	BEMBH-8x15 Available to backorder	[54] - 8x15 Hex Capscrew	£0.92 £0.77
55	BEMPR-5X22 Available to backorder	[55] - Roll Pin M5 x 22	£0.56 £0.47
56	BEM2LTZ166A0 Available to backorder	[56] - Stay	£107.58 £89.65
57	BEM2LTZ165A0 Available to backorder	[57] - Stopper	£198.36 £165.30
58	BE7/4017 Available to backorder	[58] - Screw	£0.48 £0.40
59	BE4/4001 Available to backorder	[59] - Washer M4	£0.48 £0.40
60	BEMWS-4 Available to backorder	[60] - Washer	£0.48 £0.40
61	BE8/4005 Available to backorder	[61] - Nut	£0.48 £0.40
