BCI 530 S - Oleo-Mac Brushcutter Transmission D.26mm Diagram

Name: BCI 530 S - Oleo-Mac Brushcutter Transmission D.26mm Diagram
SKU: bci_530_s_transmission_d_26mm-group
Price: 0.75 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

BCI 530 S - Oleo-Mac Brushcutter Transmission D.26mm Diagram

Description

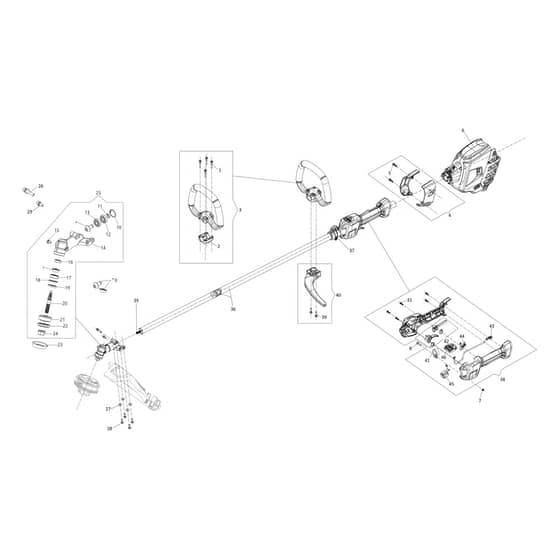

Oleo-Mac BCI 530 S Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
3	EF61380093 Available to backorder	Handle Kit	£44.96 £37.47
5	EF3893060R Available to backorder	Screw	£0.98 £0.82
7	EF3914003R Available to backorder	Self-Locking Nut	£0.96 £0.80
8	EF3801045R Available to backorder	Screw	£0.90 £0.75
9	EF61370298 Available to backorder	Bevel Gear Set	£40.72 £33.93
10	EF3025026 Available to backorder	Ring	£1.84 £1.53
11	EF3024009R Available to backorder	Ring	£2.76 £2.30
12	EF3035044 Available to backorder	Bearing	£12.34 £10.28
14	EF61280134R Available to backorder	Gear Case	£66.58 £55.48
15	EF3906015R Available to backorder	Screw	£1.92 £1.60
16	EF3035045R Available to backorder	Bearing	£12.72 £10.60
17	EF3034008R Available to backorder	Bearing	£14.74 £12.28
18	EF3025018R Available to backorder	Seeger	£1.84 £1.53
19	EF61170134 Available to backorder	Seal Ring	£11.04 £9.20
20	EF61170122 Available to backorder	Shaft	£30.92 £25.77
21	EF61170123 Available to backorder	Hub	£16.54 £13.78
22	EF61170124 Available to backorder	Lower Flange	£16.62 £13.85
24	EF3933105 Available to backorder	Nut	£5.94 £4.95
25	EF61280226AR Available to backorder	Bevel Gear Ø26	£189.06 £157.55
26	EF4175074R Available to backorder	Screw	£0.90 £0.75
27	EF094600054 Available to backorder	Washer	£0.90 £0.75
28	EF3891038R Available to backorder	Screw	£2.80 £2.33
29	EF3901008R Available to backorder	Screw	£0.90 £0.75
31	EF3893016AR Available to backorder	Screw	£2.06 £1.72
37	EF4161619AR Available to backorder	Band	£8.74 £7.28
39	EF3891048R Available to backorder	Screw	£2.08 £1.73
40	EF61042026R Available to backorder	Guard	£12.16 £10.13
41	EF61010019 Available to backorder	Band	£1.84 £1.53
