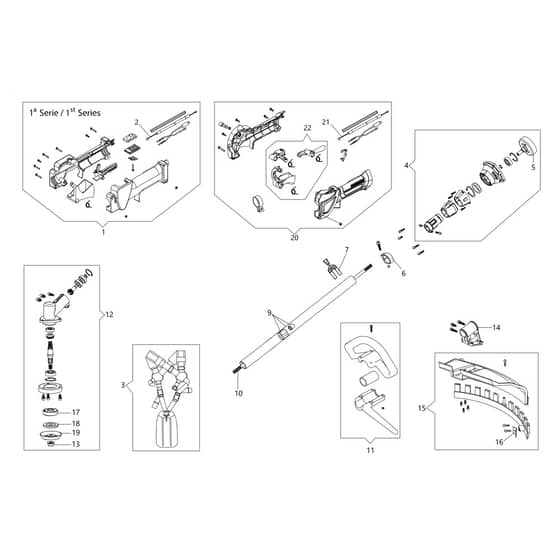

BCH 400 S - Oleo-Mac Brushcutter Transmission Diagram

Description

Oleo-Mac BCH 400 S Parts Diagram

	Part No.	Details
1	EFBF000054R Available to backorder	Complete Handle	£25.88 £21.57
3	EF4160463AR Available to backorder	Harness	£15.06 £12.55
4	EF61450327R Available to backorder	Starter Case	£36.70 £30.58
5	EFBF000011R Available to backorder	Clutch Drum	£9.40 £7.83
6	EFBF000012R Available to backorder	Band	£1.72 £1.43
7	EFBF000048R Available to backorder	Band	£2.20 £1.83
9	EFBF000014R Available to backorder	Tube Ø26	£40.40 £33.67
10	EFBF000015R Available to backorder	Drive Shaft	£18.16 £15.13
11	EFBF000051R Available to backorder	Handle	£15.80 £13.17
12	EF61450441R Available to backorder	Bevel Gear	£57.10 £47.58
13	EFBF000007R Available to backorder	Nut	£1.50 £1.25
14	EFBF000008R Available to backorder	Bracket	£5.22 £4.35
15	EFBF000029R Available to backorder	Guard Kit	£17.98 £14.98
17	EFBF000037R Available to backorder	Hub	£4.26 £3.55
18	EFBF000038R Available to backorder	Flange	£4.03 £3.36
19	EFBF000036R Available to backorder	Guard	£4.04 £3.37
