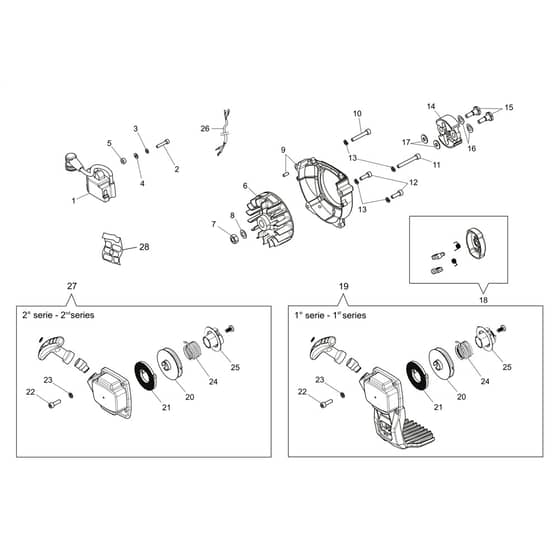

BCH 250 D - Oleo-Mac Multi Function Tool Starter assy and clutch Diagram

Name: BCH 250 D - Oleo-Mac Multi Function Tool Starter assy and clutch Diagram
SKU: bch_250_d_starter_assy_and_clutch-group
Price: 0.9 GBP
Availability: InStock

Part No. bch_250_d_starter_assy_and_clutch-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

BCH 250 D - Oleo-Mac Multi Function Tool Starter assy and clutch Diagram

Description

Oleo-Mac BCH 250 D Parts Diagram

	Part No.	Details
1	EF2501028BR Available to backorder	Ignition Coil	£30.84 £25.70
2	EF3801007 Available to backorder	Screw	£1.08 £0.90
3	EF006000315 Available to backorder	Washer	£1.08 £0.90
4	EF3916004R Available to backorder	Washer	£1.66 £1.38
7	EF3912009 Available to backorder	Nut	£1.08 £0.90
8	EF3833080 Available to backorder	Washer	£1.08 £0.90
11	EF3801066 Available to backorder	Screw	£1.08 £0.90
12	EF3801011R Available to backorder	Screw	£2.66 £2.22
13	EF3819006R Available to backorder	Washer	£1.58 £1.32
18	EF58070221R In stock	Clutch Driver	£10.20 £8.50
19	EF61460035R Available to backorder	Starter Assy	£22.32 £18.60
20	EF61370022AR Available to backorder	Starter Pulley	£13.20 £11.00
21	EF61070036R In stock	Starter Spring	£11.82 £9.85
22	EF3801013R Available to backorder	Screw	£1.61 £1.34
23	EF3916005R In stock	Washer	£1.66 £1.38
24	EF61370237R In stock	Spring	£2.09 £1.74
25	EF61370023AR In stock	Sprocket	£3.98 £3.32
26	EFBF000030R Available to backorder	Cable	£4.08 £3.40
27	EF61460116R Available to backorder	Starter Assy 45437	£23.04 £19.20
