BCF 550 - Oleo-Mac Brushcutter Tank and air filter Diagram

Name: BCF 550 - Oleo-Mac Brushcutter Tank and air filter Diagram
SKU: bcf_550_tank_and_air_filter-group
Price: 0.9 GBP
Availability: InStock

Part No. bcf_550_tank_and_air_filter-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

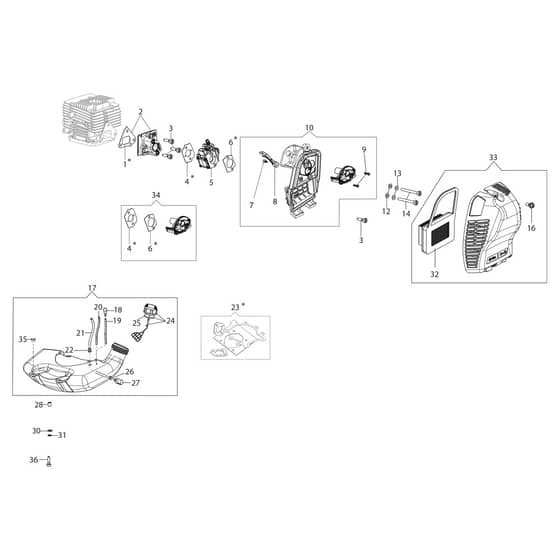

BCF 550 - Oleo-Mac Brushcutter Tank and air filter Diagram

Description

Oleo-Mac BCF 550 Parts Diagram

	Part No.	Details
1	EF61400007R Available to backorder	Gasket	£4.56 £3.80
2	EF61400191 Available to backorder	Flange Kit	£19.20 £16.00
3	EF3891048R Available to backorder	Screw	£2.27 £1.89
4	EF61400027R Available to backorder	Gasket	£3.96 £3.30
7	EF3960087AR Available to backorder	Screw	£3.01 £2.51
7	EF3960017AR Available to backorder	Screw	£1.08 £0.90
8	EF61400123BR Available to backorder	Starter Liver	£13.92 £11.60
9	EF3960145R Available to backorder	Screw	£1.08 £0.90
12	EF3916005R In stock	Washer	£1.66 £1.38
13	EF3833073R Available to backorder	Washer	£1.08 £0.90
14	EF3891063R Available to backorder	Screw	£1.20 £1.00
16	EF61330040AR Available to backorder	Screw	£3.04 £2.53
18	EF61070011AR Available to backorder	Breather Valve	£11.40 £9.50
19	EF61380111R Available to backorder	Breather Fuel Pipe	£3.36 £2.80
20	EF61380112R Available to backorder	Tube	£3.60 £3.00
22	EF4161211R Available to backorder	Bush	£1.87 £1.56
24	EF61070079AR Available to backorder	Tank Cap	£9.48 £7.90
25	EF61070006R Available to backorder	Gasket	£2.22 £1.85
26	EF61110162BR Available to backorder	Bushing	£2.66 £2.22
27	EF61400322R Available to backorder	Fuel Filter	£7.32 £6.10
30	EF3918010R Available to backorder	Washer	£1.98 £1.65
31	EF3819006R Available to backorder	Washer	£1.58 £1.32
32	EF61400229R Available to backorder	Air Filter	£12.24 £10.20
