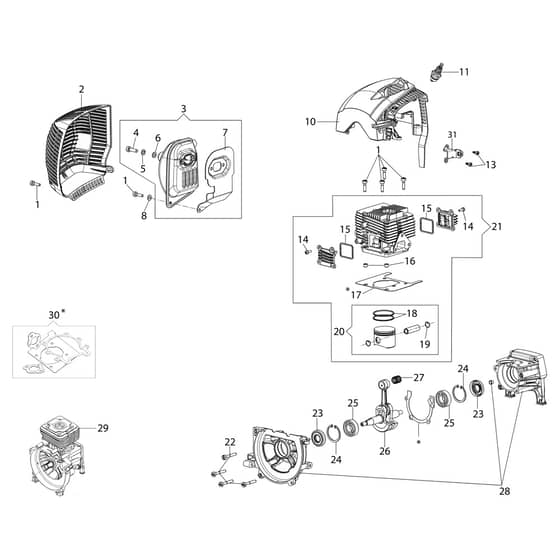

BCF 550 - Oleo-Mac Brushcutter Engine Diagram

BCF 550 - Oleo-Mac Brushcutter Engine Diagram

Part No. bcf_550_engine-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

BCF 550 - Oleo-Mac Brushcutter Engine Diagram

BCF 550 - Oleo-Mac Brushcutter Engine Diagram

Description

Oleo-Mac BCF 550 Parts Diagram

Ref.		Img.	Part No.	Details
	1		EF3891048R Available to backorder	Screw		£2.27 £1.89
	2		EF61400033AR Available to backorder	Muffler Cover		£15.12 £12.60
	5		EF3819010R Available to backorder	Washer		£1.08 £0.90
	6		EF3916006R Available to backorder	Washer		£1.08 £0.90
	8		EF3819006R Available to backorder	Washer		£1.58 £1.32
	11		8731 In stock	Spark Plug		£3.86 £3.22
	13		EF3893016AR Available to backorder	Screw		£2.24 £1.87
	17		EF61400016R Available to backorder	Gasket		£5.16 £4.30
	18		EF50080013R Available to backorder	Piston Ring		£9.00 £7.50
	19		EF006000012R Available to backorder	Piston Pin		£3.84 £3.20
	21		EF61400181 Available to backorder	Complete Cylinder Ø45		£235.56 £196.30
	22		EF3891054R Available to backorder	Screw		£6.36 £5.30
	23		EF3050001R Available to backorder	Seal Ring		£6.48 £5.40
	24		EF3025022R Available to backorder	Seeger		£1.08 £0.90
	25		EF3034012R Available to backorder	Bearing		£15.96 £13.30
	27		EF026400017R Available to backorder	Thrust Bearing		£16.68 £13.90
	29		EF61400194R Available to backorder	Short Block		£239.16 £199.30
	31		EF61400296R Available to backorder	Cover		£9.96 £8.30
