Billy Goat BC2600HHEU - BC2600 Hydro Series Brush Cutter Main (3) Diagram

Name: Billy Goat BC2600HHEU - BC2600 Hydro Series Brush Cutter Main (3) Diagram
SKU: bc2600hheu_bc2600_hydro_series_brush_cutter_main_3_-group
Price: 0.65 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Billy Goat BC2600HHEU - BC2600 Hydro Series Brush Cutter Main (3) Diagram

Description

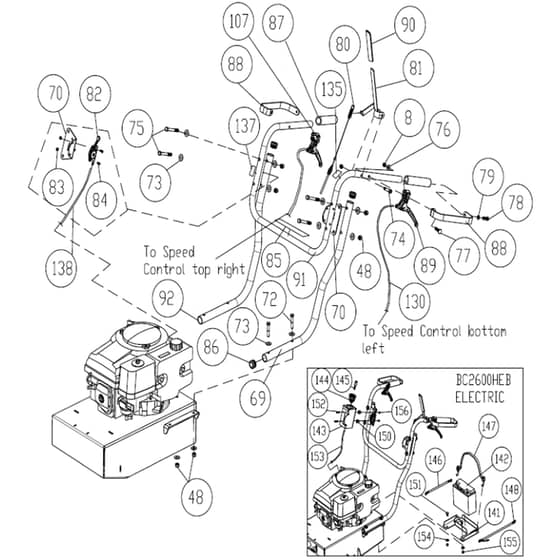

BC2600HHEU Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
8	BG8160002 Available to backorder	Nut Lock 5/16-18 Zp	£0.97 £0.81
48	BG8160003 Available to backorder	Nut Lock 3/8-16 Hex	£1.20 £1.00
73	BG8171004 Available to backorder	Washer 3/8” Flat	£1.20 £1.00
75	BG8041058 Available to backorder	Screwcap 3/8”-16 X 3” Hcs Zp	£1.28 £1.07
76	BG8171002 Available to backorder	Washer 1/4” Flat	£0.78 £0.65
78	BG8041028 Available to backorder	Screwcap 5/16”-18 X 1” Zp	£0.97 £0.81
79	BG8177011 Available to backorder	Washer Lock 5/16” S/T Med	£0.78 £0.65
80	BG501279 Available to backorder	Cable Clutch	£44.44 £37.03
82	BG440013 Available to backorder	Control Throttle	£50.28 £41.90
83	BG8164005 Available to backorder	Nut Lock Lt #10-24 Hex	£0.97 £0.81
85	BG501502 Available to backorder	Label Drive Direction	£5.63 £4.69
86	BG791056 Available to backorder	Plug Tube Insert 125” Od	£1.28 £1.07
87	BG500267 Available to backorder	Grip Handle	£6.74 £5.62
89	BG351209 Available to backorder	Control Magura	£55.70 £46.42
107	BG501276-S Available to backorder	Cable Speed Control Rt	£63.24 £52.70
130	BG351271-S Available to backorder	Cable Speed Control Lft	£63.38 £52.82
138	BG440014 Available to backorder	Cable Throttle	£33.24 £27.70
