Billy Goat BC2600HEBH - High Weed and Brush Mower Main Diagram

Name: Billy Goat BC2600HEBH - High Weed and Brush Mower Main Diagram
SKU: bc2600hebh_high_weed_and_brush_mower_main-group
Price: 0.65 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Billy Goat BC2600HEBH - High Weed and Brush Mower Main Diagram

Description

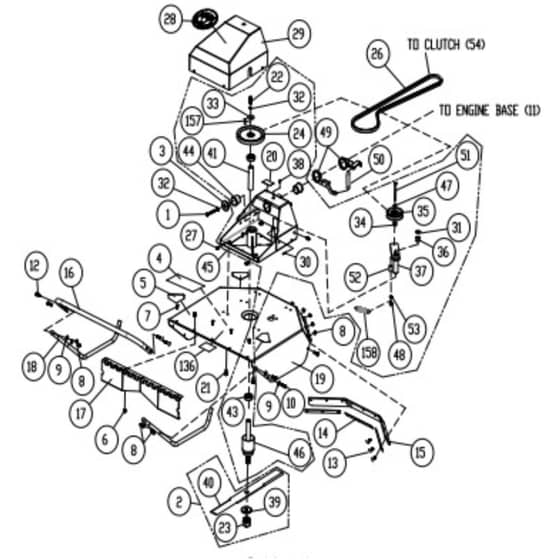

BC2600HEBH Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	BG900154 Available to backorder	Screwcap 3/8-24 X 1” Hcs Gr 8	£2.92 £2.43
2	BG501601 Available to backorder	Blade Kit Bc26	£93.36 £77.80
5	BG400424 Available to backorder	Label Danger	£3.71 £3.09
6	BG8160001 Available to backorder	Nut Lock 1/4-20 Zp	£0.97 £0.81
7	BG8024021 Available to backorder	Bolt Carriage 1/4-20 X 3/4” Hcs Zp	£0.97 £0.81
8	BG8160002 Available to backorder	Nut Lock 5/16-18 Zp	£0.97 £0.81
9	BG8171003 Available to backorder	Washer 5/16 Flat	£0.78 £0.65
12	BG8024043 Available to backorder	Carriage Bolt 5/16”-18 X 1 3/4”	£0.97 £0.81
13	BG8024040 Available to backorder	Carriage Bolt 5/16”-18 X 1”	£0.97 £0.81
18	BG501407 Available to backorder	Skid Bc26	£60.22 £50.18
20	BG900327 Available to backorder	Label Danger Guard	£3.71 £3.09
21	BG791080 Available to backorder	Screw Ser Hex Washer Flng	£1.28 £1.07
22	BG8041051 Available to backorder	Screwcap 3/8”-16 X 1 1/4” Hcs Zp	£0.97 £0.81
24	BG501308 Available to backorder	Pulley 7” Od X 1000 Bore	£89.88 £74.90
26	BG501220 Available to backorder	Belt 6972 Powerated	£112.68 £93.90
27	BG890359 Available to backorder	Screw Selt Tap 1/4-20 X 5/8” Hwh Type F	£1.34 £1.12
30	BG8197031 Available to backorder	Pin Cotter 1/8” X 1”	£0.78 £0.65
31	BG850238 Available to backorder	Washer 765 Id X 125 Od X 06 Thk	£1.08 £0.90
32	BG8177012 Available to backorder	Washer Lock 3/8 S/T Med	£1.20 £1.00
35	BG500113 Available to backorder	Pulley Idler 400 Od X 3/8” Bore	£35.74 £29.78
36	BG360183 Available to backorder	Bushing Pivot Frame Ae	£6.06 £5.05
46	BG501605 Available to backorder	Shaft Blade Adapter Assy	£248.88 £207.40
47	BG8172009 Available to backorder	Washer 3/8” Sae	£1.28 £1.07
48	BG8160003 Available to backorder	Nut Lock 3/8-16 Hex	£1.20 £1.00
53	BG8161042 Available to backorder	Nut Lock 3/8”-16 Lt Wt Th Zp	£1.20 £1.00
136	BG810736 Available to backorder	Label Warning Flying Debris	£3.71 £3.09
158	BG501261 Available to backorder	Spring Idler Bc	£13.56 £11.30
