Billy Goat BC2600HEBH - BC2600 Hydro Series Brush Cutter Main (4) Diagram

Name: Billy Goat BC2600HEBH - BC2600 Hydro Series Brush Cutter Main (4) Diagram
SKU: bc2600hebh_bc2600_hydro_series_brush_cutter_main_4_-group
Price: 0.65 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Billy Goat BC2600HEBH - BC2600 Hydro Series Brush Cutter Main (4) Diagram

Description

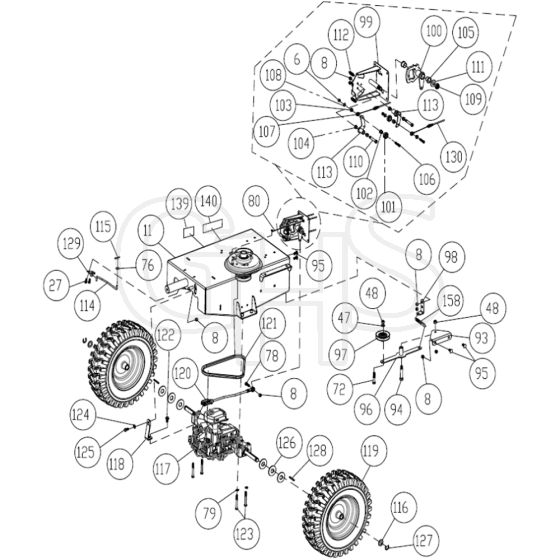

BC2600HEBH Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
6	BG8160001 Available to backorder	Nut Lock 1/4”-20 Hex Zp	£0.97 £0.81
8	BG8160002 Available to backorder	Nut Lock 5/16”-18	£0.97 £0.81
27	BG890359 Available to backorder	Screw Selt Tap 1/4-20 X 5/8” Hwh Type F	£1.34 £1.12
47	BG8172009 Available to backorder	Washer 3/8” Sae	£1.28 £1.07
48	BG8160003 Available to backorder	Nut Lock 3/8”-16 Hex	£1.20 £1.00
78	BG8041028 Available to backorder	Screwcap 5/16”-18 X 1” Hcs Zp	£0.97 £0.81
79	BG8177011 Available to backorder	Washer Lock 5/16” S/T Med	£0.78 £0.65
80	BG501279 Available to backorder	Cable Clutch	£44.44 £37.03
94	BG520031 Available to backorder	Bolt Shoulder 1/2” X 2”	£6.43 £5.36
104	BG840078 Available to backorder	Bushing 3/8” Id 1/2” Od X 3/8” Long	£3.90 £3.25
105	BG360183 Available to backorder	Bushing Pivot Frame Ae	£6.06 £5.05
107	BG501276-S Available to backorder	Cable Speed Control Rt	£63.24 £52.70
108	BG8172007 Available to backorder	Washer 1/4” Sae	£0.78 £0.65
110	BG351258 Available to backorder	Bolt Shoulder 3/8” X 1 3/4”	£3.90 £3.25
112	BG800242 Available to backorder	Spring Tension	£5.26 £4.38
115	BG900471 Available to backorder	Hair Pin Cotter 1/4”	£1.28 £1.07
116	BG850238 Available to backorder	Washer 765 Id X 125” Od X 06	£1.08 £0.90
117	BG501354 Available to backorder	Transaxle Tuff Torq Bc26	£1,370.82 £1,142.35
121	BG501268 Available to backorder	Belt Hydro Transaxle Bc26	£32.20 £26.83
123	BG8041035 Available to backorder	Screwcap 5/16”-18 X 2 3/4” Hcs Zp	£0.97 £0.81
124	BG8172008 Available to backorder	Washer 5/16” Sae	£0.78 £0.65
125	BG8041026 Available to backorder	Screwcap 5/16”-18 X 3/4” Hcs Zp	£0.97 £0.81
126	BG8172015 Available to backorder	Washer 3/4” Sae	£0.78 £0.65
127	BG850230 Available to backorder	Ring Retaining E 3/4”	£1.00 £0.83
128	BG9201087 Available to backorder	Key 3/16” Sq X 2 1/8”	£3.02 £2.52
130	BG351271-S Available to backorder	Cable Speed Control Lft	£63.38 £52.82
158	BG501261 Available to backorder	Spring Idler Bc	£13.56 £11.30
