Billy Goat BC2403IC - High Weed and Brush Mower Transaxle and Blade Deck Diagram

Description

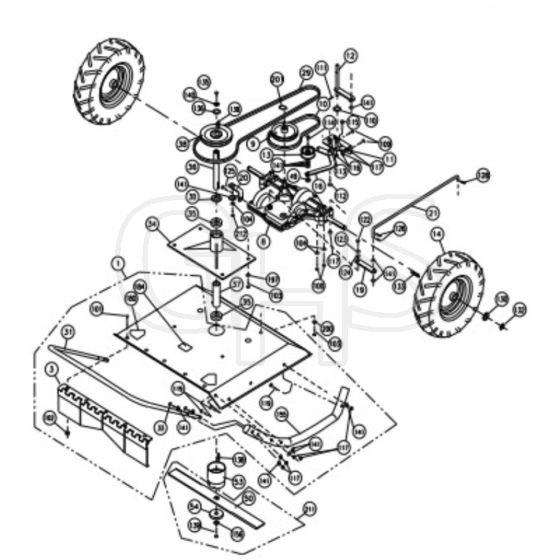

BC2403IC Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	BG500407	Deck Assembly With Labels	Out of stock	£641.76 £534.80
9	BG830180-S	Pulley 50" Od ‘A’ Section	Out of stock	£74.40 £62.00
10	BG500119	Belt Traction Drive	Out of stock	£55.07 £45.89
11	BG500122	Plate Pivot Idler/Shifter	Out of stock	£19.44 £16.20
13	BG5108777	Pulley Idler	Out of stock	£16.82 £14.02
16	BG500170	Arm Idler Wa	Out of stock	£74.54 £62.12
29	BG500237	Belt Blade Drive	Out of stock	£120.35 £100.29
33	BG8041031	Screw Cap 5/16-18 X 1 ¾”	Out of stock	£0.97 £0.81
34	BG500174	Spindle Wa Bc2402	Out of stock	£161.54 £134.62
35	BG500101	Bearing 7/8" Id Sealed Press	Out of stock	£24.80 £20.67
36	BG500107	Shaft Drive Blade	Out of stock	£46.22 £38.52
38	BG500253	Pulley 7" Od X 7/8" Bore	Out of stock	£93.36 £77.80
49	BG8161042	Nut Lock 3/8-16 Thin	Out of stock	£0.97 £0.81
53	BG500191	Adapter Blade Wa	Out of stock	£98.66 £82.22
101	BG8024021	Bolt Carriage 1/4-20 X 3/4”	Out of stock	£0.97 £0.81
102	BG8160001	Nut Lock 1/4-20	Out of stock	£0.97 £0.81
103	BG8041029	Screw Cap 5/16-18 X 1-1/4”	Out of stock	£0.97 £0.81
104	BG8177011	Washer Split Lock 5/16”	Out of stock	£0.78 £0.65
108	BG8041035	Screw Cap 5/16-18 X 2-3/4 “	Out of stock	£0.97 £0.81
109	BG8024039	Bolt Carriage 5/16-18 X 3/4 “	Out of stock	£0.97 £0.81
110	BG900230	Washer Flat 1/2”	Out of stock	£0.97 £0.81
112	BG500114	Bolt Shoulder 1/2 X 1”	Out of stock	£8.72 £7.27
113	BG8160003	Nut Lock 3/8-16	Out of stock	£0.97 £0.81
114	BG800888	Bolt Idler	Out of stock	£9.02 £7.52
115	BG8041032	Screwcap 5/16"-18 X 2" Hcs Zp	Out of stock	£0.97 £0.81
116	BG8142002	Nut Jam 5/16-18	Out of stock	£0.97 £0.81
117	BG8160002	Nut Lock 5/16-18	Out of stock	£0.97 £0.81
124	BG8171002	Washer 1/4” Fc	Out of stock	£0.78 £0.65
126	BG900471	Pin Hair Cotter	Out of stock	£1.28 £1.07
130	BG850238	Washer 0765 X 1250 X 0060”	Out of stock	£1.08 £0.90
132	BG850230	Ring Snap 0750”	Out of stock	£0.78 £0.65
133	BG9201087	Key 3/16 X 2-1/8”	Out of stock	£2.40 £2.00
135	BG5106654	Screw Cap 7/16-20 X 1-1/4” Gr8	Out of stock	£5.76 £4.80
136	BG350153	Washer 7/8 Sae	Out of stock	£2.89 £2.41
139	BG500188	Screw Cap 7/16-20 X 2” Gr8	Out of stock	£3.12 £2.60
140	BG8177013	Washer Lock 7/16”	Out of stock	£0.78 £0.65
141	BG8171003	Washer 5/16 Fc	Out of stock	£0.78 £0.65
180	BG400424	Label Opei	Out of stock	£3.71 £3.09
184	BG810736	Label Flying Debris	Out of stock	£3.71 £3.09
197	BG800177	Washer Lock 5/16 Twisted Tooth	Out of stock	£3.74 £3.12
200	BG430298	Washer Lock 5/16 Twisted Tooth Heavy	Out of stock	£1.56 £1.30
211	BG500210-S	Blade Kit	Out of stock	£53.06 £44.22
212	BG8041026	Screwcap 5/16”-18 X 3/4”	Out of stock	£0.97 £0.81
