Billy Goat BC2403IC - High Weed and Brush Mower Handlebar Diagram

Name: Billy Goat BC2403IC - High Weed and Brush Mower Handlebar Diagram
SKU: bc2403ic_high_weed_and_brush_mower_handlebar-group
Price: 0.65 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Billy Goat BC2403IC - High Weed and Brush Mower Handlebar Diagram

Description

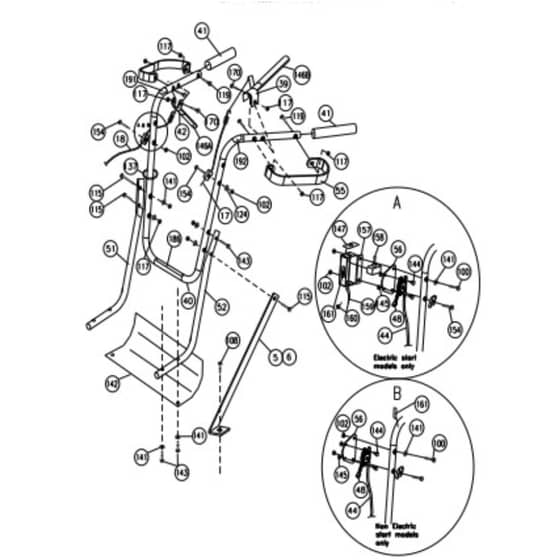

BC2403IC Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
17	BG500259 Available to backorder	Cable Clutch Blade Bc2402	£35.28 £29.40
18	BG500327 Available to backorder	Cable Clutch Drive Bc2402	£40.40 £33.67
41	BG500267 Available to backorder	Grip Handle 1” Id X 75”	£6.74 £5.62
44	BG440178 Available to backorder	Cable Throttle Control 360”	£39.60 £33.00
48	BG440013 Available to backorder	Control Throttle	£50.28 £41.90
102	BG8160001 Available to backorder	Nut Lock 1/4-20	£0.97 £0.81
108	BG8041035 Available to backorder	Screw Cap 5/16-18 X 2-3/4”	£0.97 £0.81
115	BG8041032 Available to backorder	Screw Cap 5/16-18 X 2"	£0.97 £0.81
117	BG8160002 Available to backorder	Nut Lock 5/16-18	£0.97 £0.81
124	BG8171002 Available to backorder	Washer 1/4” Fc	£0.78 £0.65
137	BG900407 Available to backorder	Ty Wrap	£0.78 £0.65
141	BG8171003 Available to backorder	Washer 5/16” Fc	£0.78 £0.65
143	BG8041031 Available to backorder	Screw Cap 5/16-18 X 1-3/4”	£0.97 £0.81
145	BG8164005 Available to backorder	Nut Lock Lt #10-24	£0.97 £0.81
154	BG8041009 Available to backorder	Screw Cap 1/4-20 X 1 3/4”	£0.97 £0.81
