Billy Goat BC2403IC - BC2403 Series Brush Cutter Main (3) Diagram

Name: Billy Goat BC2403IC - BC2403 Series Brush Cutter Main (3) Diagram
SKU: bc2403ic_bc2403_series_brush_cutter_main_3_-group
Price: 0.65 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Billy Goat BC2403IC - BC2403 Series Brush Cutter Main (3) Diagram

Description

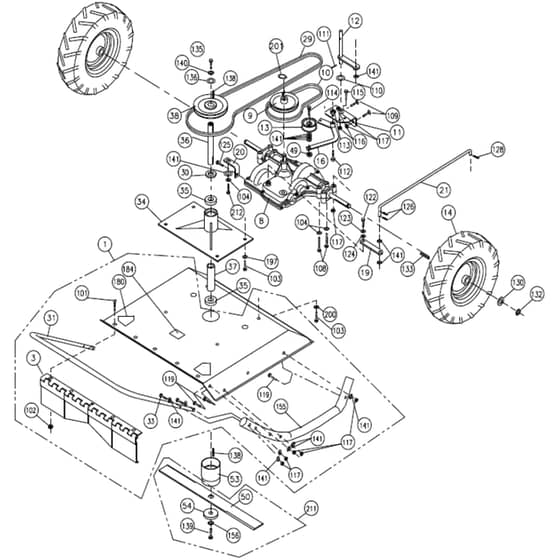

BC2403IC Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	BG500407 Available to backorder	Deck Assembly With Labels	£641.76 £534.80
9	BG830180-S Available to backorder	Pulley 50" Od ‘A’ Section	£77.50 £64.58
10	BG500119 Available to backorder	Belt Traction Drive	£55.07 £45.89
11	BG500122 Available to backorder	Plate Pivot Idler/Shifter	£19.44 £16.20
13	BG5108777 Available to backorder	Pulley Idler	£16.82 £14.02
16	BG500170 Available to backorder	Arm Idler Wa	£74.54 £62.12
29	BG500237 Available to backorder	Belt Blade Drive	£120.35 £100.29
33	BG8041031 Available to backorder	Screw Cap 5/16-18 X 1 ¾”	£0.97 £0.81
34	BG500174 Available to backorder	Spindle Wa Bc2402	£161.54 £134.62
35	BG500101 Available to backorder	Bearing 7/8" Id Sealed Press	£24.80 £20.67
36	BG500107 Available to backorder	Shaft Drive Blade	£46.22 £38.52
38	BG500253 Available to backorder	Pulley 7" Od X 7/8" Bore	£93.36 £77.80
49	BG8161042 Available to backorder	Nut Lock 3/8-16 Thin	£1.20 £1.00
53	BG500191 Available to backorder	Adapter Blade Wa	£98.66 £82.22
101	BG8024021 Available to backorder	Bolt Carriage 1/4-20 X 3/4”	£0.97 £0.81
102	BG8160001 Available to backorder	Nut Lock 1/4-20	£0.97 £0.81
103	BG8041029 Available to backorder	Screw Cap 5/16-18 X 1-1/4”	£0.97 £0.81
104	BG8177011 Available to backorder	Washer Split Lock 5/16”	£0.78 £0.65
108	BG8041035 Available to backorder	Screw Cap 5/16-18 X 2-3/4 “	£0.97 £0.81
109	BG8024039 Available to backorder	Bolt Carriage 5/16-18 X 3/4 “	£0.97 £0.81
110	BG900230 Available to backorder	Washer Flat 1/2”	£0.97 £0.81
112	BG500114 Available to backorder	Bolt Shoulder 1/2 X 1”	£8.72 £7.27
113	BG8160003 Available to backorder	Nut Lock 3/8-16	£1.20 £1.00
114	BG800888 Available to backorder	Bolt Idler	£9.02 £7.52
115	BG8041032 Available to backorder	Screwcap 5/16"-18 X 2" Hcs Zp	£0.97 £0.81
116	BG8142002 Available to backorder	Nut Jam 5/16-18	£0.97 £0.81
117	BG8160002 Available to backorder	Nut Lock 5/16-18	£0.97 £0.81
124	BG8171002 Available to backorder	Washer 1/4” Fc	£0.78 £0.65
126	BG900471 Available to backorder	Pin Hair Cotter	£1.28 £1.07
130	BG850238 Available to backorder	Washer 0765 X 1250 X 0060”	£1.08 £0.90
132	BG850230 Available to backorder	Ring Snap 0750”	£1.00 £0.83
133	BG9201087 Available to backorder	Key 3/16 X 2-1/8”	£3.02 £2.52
135	BG5106654 Available to backorder	Screw Cap 7/16-20 X 1-1/4” Gr8	£5.76 £4.80
136	BG350153 Available to backorder	Washer 7/8 Sae	£2.89 £2.41
139	BG500188 Available to backorder	Screw Cap 7/16-20 X 2” Gr8	£3.12 £2.60
140	BG8177013 Available to backorder	Washer Lock 7/16”	£0.78 £0.65
141	BG8171003 Available to backorder	Washer 5/16 Fc	£0.78 £0.65
180	BG400424 Available to backorder	Label Opei	£3.71 £3.09
184	BG810736 Available to backorder	Label Flying Debris	£3.71 £3.09
197	BG800177 Available to backorder	Washer Lock 5/16 Twisted Tooth	£3.74 £3.12
200	BG430298 Available to backorder	Washer Lock 5/16 Twisted Tooth Heavy	£1.56 £1.30
211	BG500210-S Available to backorder	Blade Kit	£67.92 £56.60
212	BG8041026 Available to backorder	Screwcap 5/16”-18 X 3/4”	£0.97 £0.81
