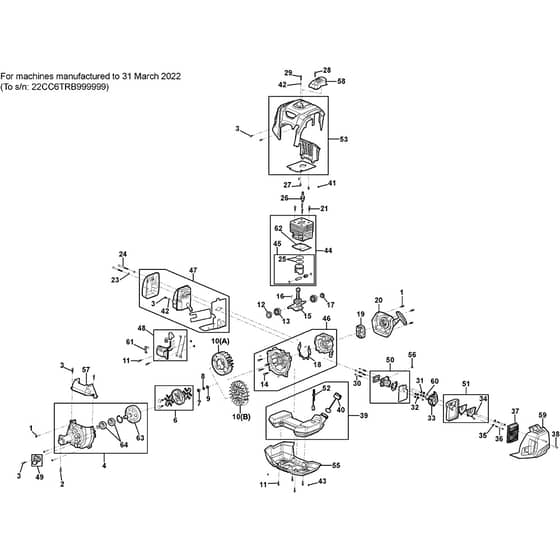

BC 750 B - 2022-2025 - 283424008/ST3 - Stiga Brushcutter Engine Diagram

Description

Stiga BC 750 B Parts Diagram

Product Name - BC 750 B

Model Year - 2022-2025

Model Type - BC646DX

Art.N - 283424008/ST3

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
2	MO112728721/0 Available to backorder	Screw	£1.82 £1.52
3	MO6981117 Available to backorder	Screw	£1.33 £1.11
4	MO118805145/0 Available to backorder	Transmission Support Assy	£76.02 £63.35
6	MO118805132/0 Available to backorder	Clutch Unit Assy	£42.23 £35.19
7	MO112155010/0 Available to backorder	Nut	£2.12 £1.77
8	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
9	MO122671653/0 Available to backorder	Washer	£1.55 £1.29
10	MO118805133/0 Available to backorder	Flywheel A (for 646 machines)	£33.67 £28.06
12	MO118801197/0 Available to backorder	Seal Ring	£1.33 £1.11
14	MO2135130 Available to backorder	Screw	£1.40 £1.17
15	MO118805134/0 Available to backorder	Crankshaft	£60.54 £50.45
16	MO3151050 Available to backorder	Flywheel Key	£6.76 £5.63
17	MO118801188/0 Available to backorder	Seal Ring	£1.33 £1.11
18	MO118804079/0 Available to backorder	Crankcase Gasket	£1.55 £1.29
19	MO118805135/0 Available to backorder	Starter Cup	£3.52 £2.93
20	MO118805136/0 Available to backorder	Starter Assy	£23.92 £19.93
21	MO6981118 Available to backorder	Outfit. Screws	£1.33 £1.11
23	MO2312010 Available to backorder	Flat Washer	£1.40 £1.17
24	MO118801180/0 Available to backorder	Screw	£1.69 £1.41
25	MO118805137/0 Available to backorder	Piston Ring	£3.38 £2.82
26	2134 In stock	Spark Plug	£2.26 £1.88
27	MO123878020/0 Available to backorder	Screw	£1.33 £1.11
29	MO112760475/0 Available to backorder	Screw	£1.97 £1.64
30	MO118805168/0 Available to backorder	Dowel Screw	£1.55 £1.29
31	MO112581500/0 Available to backorder	Grower	£1.55 £1.29
33	MO118805139/0 Available to backorder	Carburetor	£136.55 £113.79
34	MO112726389/0 Available to backorder	Screw	£1.49 £1.24
37	MO118805140/0 Available to backorder	Paper Filter	£9.43 £7.86
39	MO118805141/0 Available to backorder	Fuel Tank Assy	£24.07 £20.06
40	MO118805142/0 In stock	Fuel Tank Cap Assy	£4.50 £3.75
41	MO112727810/0 Available to backorder	Screw	£1.55 £1.29
42	MO9699-0087-02 In stock	Washer	£2.12 £1.77
43	MO112728124/0 Available to backorder	Screw	£1.55 £1.29
44	MO118805104/1 Available to backorder	Cylinder-Piston Kit	£129.52 £107.93
45	MO118805106/0 Available to backorder	Piston Kit	£32.38 £26.98
46	MO118805108/0 Available to backorder	Crankcase Kit	£49.26 £41.05
47	MO118805109/1 Available to backorder	Muffler Kit	£56.32 £46.93
48	MO118805226/0 Available to backorder	Ignition Kit	£127.21 £106.01
49	MO118805111/0 Available to backorder	Primer Bulb Kit	£12.11 £10.09
50	MO118805112/1 Available to backorder	Intake Manifold	£20.69 £17.24
51	MO118805113/1 Available to backorder	Air Filter Base Kit	£16.06 £13.38
52	MO118805114/1 Available to backorder	Fuel Pipe	£11.96 £9.97
53	MO118805115/1 Available to backorder	Top Housing Kit	£30.97 £25.81
55	MO118805170/0 Available to backorder	Fuel Tank Cover	£14.35 £11.96
56	MO112292100/0 Available to backorder	Nut	£1.40 £1.17
57	MO118805166/0 Available to backorder	Air Baffle	£1.69 £1.41
58	MO118805167/0 Available to backorder	Spark Plug Cover	£1.97 £1.64
59	MO118805169/0 Available to backorder	Air Filter Cover. Grey	£7.61 £6.34
60	MO112154320/0 Available to backorder	Nut	£1.55 £1.29
61	MO118805217/0 Available to backorder	Sensor Module	£8.29 £6.91
62	MO118805307/0 Available to backorder	Cylinder Gasket	£1.33 £1.11
63	MO118805572/0 Available to backorder	Clutch Drum	£30.97 £25.81
64	MO119216048/0 In stock	Bearing 6202 2Rs C3	£18.31 £15.26
