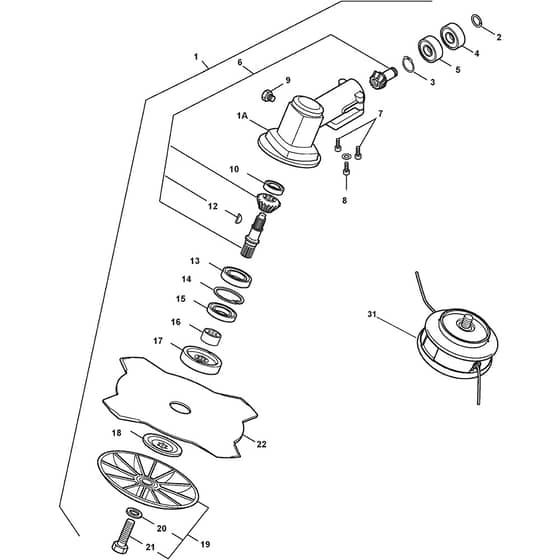

BC 430 D - 2004 - 284421002/X - Castel Garden Brushcutter Gear Case Diagram

Name: BC 430 D - 2004 - 284421002/X - Castel Garden Brushcutter Gear Case Diagram
SKU: bc_430_d_284421002_x_gear_case-group
Price: 1.11 GBP
Availability: InStock

Part No. bc_430_d_284421002_x_gear_case-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

BC 430 D - 2004 - 284421002/X - Castel Garden Brushcutter Gear Case Diagram

Description

Castel Garden BC 430 D Parts Diagram

Product Name - BC 430 D

Model Year - 2004

Model Type - VIP 42 D

Art.N - 284421002/X

Engine Model -

	Part No.	Details
3	MO112608500/0 Available to backorder	Seeger	£1.70 £1.42
4	MO3112200 Available to backorder	Ball Bearing	£8.59 £7.16
5	MO3112190 Available to backorder	Ball Bearing	£23.65 £19.71
7	MO2135050 Available to backorder	Screw	£1.33 £1.11
8	MO2653090 Available to backorder	Screw	£1.39 £1.16
10	MO3112210 Available to backorder	Ball Bearing	£13.31 £11.09
12	MO3151050 Available to backorder	Flywheel Key	£6.77 £5.64
14	MO3353080 Available to backorder	Seeger Ring	£1.39 £1.16
15	MO3121170 Available to backorder	Oil Seal	£13.86 £11.55
16	MO1L3641700/1 Available to backorder	Collar	£8.86 £7.38
17	MO3641640 Available to backorder	Upper Ring Nut	£10.06 £8.38
18	MO3612640 Available to backorder	Lower Ring Nut	£9.44 £7.87
20	MO2321230 In stock	Washer	£1.39 £1.16
22	MO4611880 In stock	4 Teeth Disck	£11.90 £9.92
31	MO1911-9228-01 In stock	Profi Tap & Go Brushcutter Ggp03	£24.77 £20.64
