BC 400 T - Oleo-Mac Brushcutter Transmission Diagram

Description

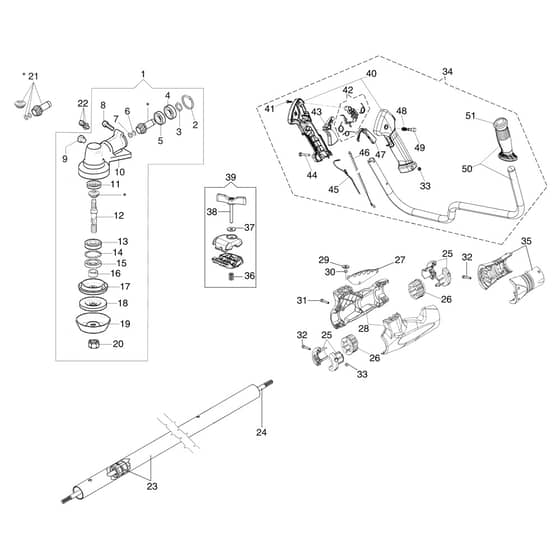

Oleo-Mac BC 400 T Parts Diagram

	Part No.	Details
1	EF61350149AR Available to backorder	Bevel Gear Ø28	£188.64 £157.20
2	EF3025019 Available to backorder	Ring	£1.08 £0.90
3	EF3024012R In stock	Seeger	£1.54 £1.28
4	EF3035023R Available to backorder	Bearing	£16.44 £13.70
5	EF3034019R Available to backorder	Bearing	£5.16 £4.30
6	EF4138311A Available to backorder	Washer	£1.08 £0.90
7	EF3025009 Available to backorder	Seeger	£1.08 £0.90
8	EF3901016 Available to backorder	Screw	£1.08 £0.90
9	EF61040071R Available to backorder	Oil Cap	£3.84 £3.20
10	EF61040144R Available to backorder	Gear Case	£48.12 £40.10
11	EF3034218R Available to backorder	Bearing	£13.68 £11.40
12	EF61250054R Available to backorder	Pin	£17.52 £14.60
13	EF3034012R Available to backorder	Bearing	£15.96 £13.30
14	EF3025022R Available to backorder	Seeger	£1.08 £0.90
15	EF3050018R Available to backorder	Seal Ring	£9.00 £7.50
16	EF61040066R Available to backorder	Spacer	£9.00 £7.50
17	EF61040145R Available to backorder	Hub	£24.24 £20.20
18	EF4179089R Available to backorder	Flange	£9.00 £7.50
20	EF61110075R Available to backorder	Self-Locking Nut	£9.00 £7.50
21	EF61350216 Available to backorder	Bevel Gear Set	£100.80 £84.00
22	EF3901008R Available to backorder	Screw	£1.08 £0.90
23	EF61252049R Available to backorder	Tube Ø28	£87.00 £72.50
24	EF61202109R Available to backorder	Shaft	£29.76 £24.80
25	EF61040110R Available to backorder	Clamp	£9.00 £7.50
26	EF61250181R Available to backorder	Sleeve	£9.00 £7.50
28	EF61420078 Available to backorder	Motor Housing	£32.76 £27.30
29	EF66030012R Available to backorder	Washer	£2.00 £1.67
30	EF3980011 Available to backorder	Nut	£1.08 £0.90
31	EF3960091AR Available to backorder	Screw	£2.56 £2.13
32	EF3801016R Available to backorder	Screw	£1.08 £0.90
33	EF3914003R Available to backorder	Self-Locking Nut	£1.15 £0.96
34	EF61420039 Available to backorder	Complete Handle	£106.80 £89.00
36	EF61040044R Available to backorder	Spring	£2.08 £1.73
37	EF3918013 Available to backorder	Washer	£1.08 £0.90
38	EF61042030R Available to backorder	Knob	£3.84 £3.20
39	EF61370274A Available to backorder	Complete Clamp	£29.40 £24.50
40	EF61380097 Available to backorder	Pair Of Handles	£11.40 £9.50
41	EF3893016AR Available to backorder	Screw	£2.24 £1.87
42	EF61370294 Available to backorder	Lever Group	£5.16 £4.30
43	EF61380064R Available to backorder	Throttle Lever	£3.14 £2.62
44	EF3891054R Available to backorder	Screw	£6.36 £5.30
45	EF61420025R Available to backorder	Cable	£12.96 £10.80
46	EF61420024R Available to backorder	Throttle Cable	£7.32 £6.10
47	EF61370114R Available to backorder	Lever	£1.81 £1.51
48	EF4100098B Available to backorder	Spring	£1.08 £0.90
50	EF61382024R In stock	Handle And Knob	Was £79.14 £65.95 Special Price £56.98 £47.48
51	EF61040140R Available to backorder	Hand Grip	£11.16 £9.30
