BC 400 S - Oleo-Mac Brushcutter Transmission Diagram

Description

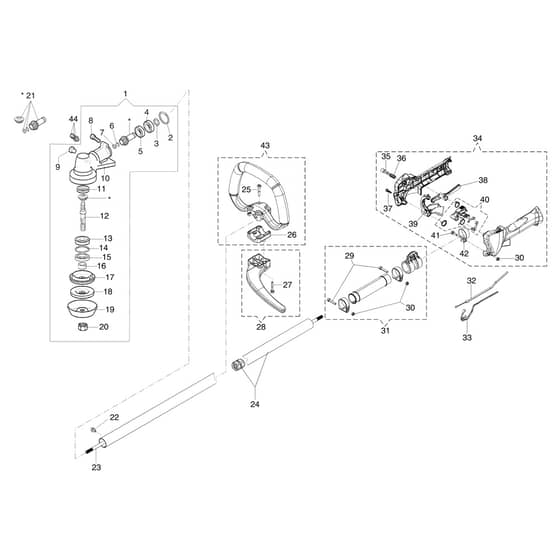

Oleo-Mac BC 400 S Parts Diagram

	Part No.	Details
1	EF61350149AR Available to backorder	Bevel Gear Ø28	£188.64 £157.20
2	EF3025019 Available to backorder	Ring	£1.08 £0.90
3	EF3024012R In stock	Seeger	£1.54 £1.28
4	EF3035023R Available to backorder	Bearing	£16.44 £13.70
5	EF3034019R Available to backorder	Bearing	£5.16 £4.30
6	EF4138311A Available to backorder	Washer	£1.08 £0.90
7	EF3025009 Available to backorder	Seeger	£1.08 £0.90
8	EF3901016 Available to backorder	Screw	£1.08 £0.90
9	EF61040071R Available to backorder	Oil Cap	£3.84 £3.20
10	EF61040144R Available to backorder	Gear Case	£48.12 £40.10
11	EF3034218R Available to backorder	Bearing	£13.68 £11.40
12	EF61250054R Available to backorder	Pin	£17.52 £14.60
13	EF3034012R Available to backorder	Bearing	£15.96 £13.30
14	EF3025022R Available to backorder	Seeger	£1.08 £0.90
15	EF3050018R Available to backorder	Seal Ring	£9.00 £7.50
16	EF61040066R Available to backorder	Spacer	£9.00 £7.50
17	EF61040145R Available to backorder	Hub	£24.24 £20.20
18	EF4179089R Available to backorder	Flange	£9.00 £7.50
20	EF61110075R Available to backorder	Self-Locking Nut	£9.00 £7.50
21	EF61350216 Available to backorder	Bevel Gear Set	£100.80 £84.00
22	EF61052007 Available to backorder	Screw	£1.08 £0.90
23	EF61202109R Available to backorder	Shaft	£29.76 £24.80
24	EF61252049R Available to backorder	Tube Ø28	£87.00 £72.50
26	EF61010024 Available to backorder	Clamp	£9.00 £7.50
27	EF3891051R Available to backorder	Screw	£1.98 £1.65
28	EF61042026R Available to backorder	Guard	£12.60 £10.50
29	EF3801015R Available to backorder	Screw	£2.03 £1.69
30	EF3914003R Available to backorder	Self-Locking Nut	£1.15 £0.96
32	EF61380059R Available to backorder	Throttle Cable	£5.76 £4.80
36	EF4100098B Available to backorder	Spring	£1.08 £0.90
37	EF3893016AR Available to backorder	Screw	£2.24 £1.87
39	EF61380056R Available to backorder	Throttle Lever	£3.72 £3.10
40	EF61380096 Available to backorder	Button Kit	£6.84 £5.70
41	EF3801011R Available to backorder	Screw	£2.66 £2.22
42	EF61010019 Available to backorder	Band	£2.00 £1.67
44	EF3901008R Available to backorder	Screw	£1.08 £0.90
