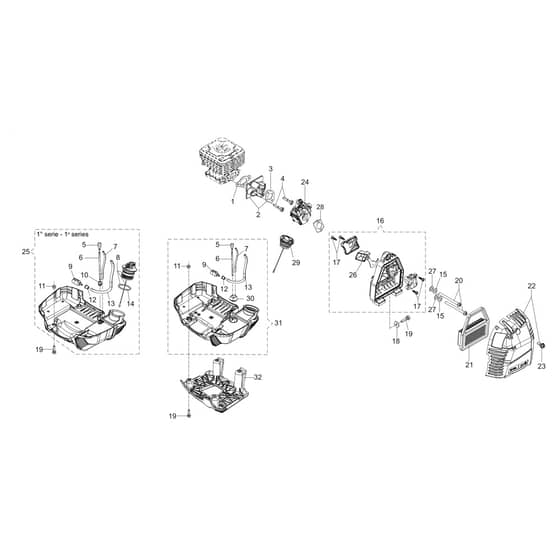

BC 350 T - Oleo-Mac Brushcutter Tank and air filter Diagram

Name: BC 350 T - Oleo-Mac Brushcutter Tank and air filter Diagram
SKU: bc_350_t_tank_and_air_filter-group
Price: 0.9 GBP
Availability: InStock

Part No. bc_350_t_tank_and_air_filter-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

BC 350 T - Oleo-Mac Brushcutter Tank and air filter Diagram

Description

Oleo-Mac BC 350 T Parts Diagram

	Part No.	Details
1	EF61200019AR In stock	Gasket	£1.08 £0.90
2	EF61200198 Available to backorder	Insulator	£21.96 £18.30
3	EF61200196AR Available to backorder	Gasket	£3.12 £2.60
5	EF61400367R Available to backorder	Breather Valve	£6.00 £5.00
6	EF61380075R Available to backorder	Breather Fuel Pipe	£3.12 £2.60
7	EF61250228R Available to backorder	Tube	£3.84 £3.20
8	EF61380100 Available to backorder	Tank Cap	£8.64 £7.20
9	EF61400322R Available to backorder	Fuel Filter	£7.32 £6.10
10	EF4161211R Available to backorder	Bush	£1.87 £1.56
12	EF61110162BR Available to backorder	Bushing	£2.66 £2.22
15	EF3833073R Available to backorder	Washer	£1.08 £0.90
16	EF61382040AR Available to backorder	Air Filter Support Set	£18.96 £15.80
17	EF3893013AR Available to backorder	Screw	£1.37 £1.14
18	EF3918005R Available to backorder	Washer	£2.66 £2.22
19	EF3891048R Available to backorder	Screw	£2.27 £1.89
21	EF61380013AR In stock	Air Filter	£8.09 £6.74
22	EF61380099 Available to backorder	Air Filter Cover	£7.44 £6.20
23	EF61330040AR Available to backorder	Screw	£3.04 £2.53
25	EF61380114AR Available to backorder	Complete Tank	£57.00 £47.50
27	EF3916005R In stock	Washer	£1.66 £1.38
28	EF61350155R Available to backorder	Flange	£4.08 £3.40
