BC 300 D - Oleo-Mac Multi Function Tool Pole pruner Diagram

Description

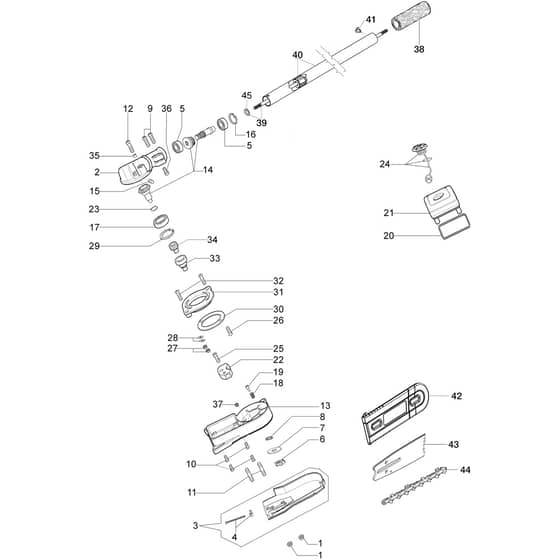

Oleo-Mac BC 300 D Parts Diagram

	Part No.	Details
1	EF004400959R Available to backorder	Nut	£2.24 £1.87
2	EFW0000201 Available to backorder	Gear Case	£76.08 £63.40
3	EFW0000202 Available to backorder	Chain Cover Assy	£37.32 £31.10
4	EFW0000203 Available to backorder	Chain Tensioner Kit	£15.24 £12.70
5	EF3034008R Available to backorder	Bearing	£15.24 £12.70
6	EFW000105 Available to backorder	Sprocket	£23.64 £19.70
7	EFW000106 Available to backorder	Washer	£3.01 £2.51
8	EF3024017 Available to backorder	Ring	£1.08 £0.90
9	EF3801011R Available to backorder	Screw	£2.66 £2.22
10	EFW000113 Available to backorder	Screw	£1.08 £0.90
11	EFW000112 Available to backorder	Stud	£3.01 £2.51
12	EF3801030 Available to backorder	Screw	£1.08 £0.90
13	EFW0000204 Available to backorder	Case	£97.44 £81.20
14	EFW0000205 Available to backorder	Bevel Gear Set	£97.20 £81.00
15	EF3801008R Available to backorder	Screw	£1.08 £0.90
16	EF3025018R Available to backorder	Seeger	£2.00 £1.67
17	EFW0000206 Available to backorder	Bearing	£34.20 £28.50
18	EFW0000207 Available to backorder	Spring	£3.01 £2.51
19	EFW0000208 Available to backorder	Pin	£3.01 £2.51
20	EFW000115 Available to backorder	O-Ring	£3.01 £2.51
21	EFW000117 Available to backorder	Bowl Cap	£10.68 £8.90
22	EFW0000209 Available to backorder	Oil Pump	£36.84 £30.70
23	EFW0000210 Available to backorder	Ring	£2.00 £1.67
24	EFW0000211 Available to backorder	Complete Cap	£9.96 £8.30
25	EF3801004 Available to backorder	Screw	£1.08 £0.90
26	EFW0000212 Available to backorder	Screw	£1.08 £0.90
27	EF3914003R Available to backorder	Self-Locking Nut	£1.15 £0.96
28	EF3833073R Available to backorder	Washer	£1.08 £0.90
29	EF3025022R Available to backorder	Seeger	£1.08 £0.90
30	EFW0000214 Available to backorder	Ring	£23.28 £19.40
31	EFW0000215 Available to backorder	Ring Nut	£26.28 £21.90
32	EFW0000216 Available to backorder	Screw	£2.00 £1.67
33	EFW0000217 Available to backorder	Shaft	£25.92 £21.60
34	EFW0000213 Available to backorder	Bushing	£26.04 £21.70
35	EFW0000200 Available to backorder	Bushing	£1.08 £0.90
36	EF3801043 Available to backorder	Screw	£1.08 £0.90
37	EFW000118 Available to backorder	Oil Filter	£2.00 £1.67
38	EF61280241R Available to backorder	Knob	£7.68 £6.40
39	EF61370496 Available to backorder	Complete Drive Shaft Ø7	£18.36 £15.30
40	EF61282059R Available to backorder	Tube Ø26	£45.84 £38.20
41	EF3032027R Available to backorder	Rivet	£1.37 £1.14
42	EF50350035R Available to backorder	Bar Cover - 30 cm	£11.28 £9.40
43	EF63090030R Available to backorder	Bar 10'' - 25 cm	£36.12 £30.10
45	EF3045034R In stock	Retainer Washer	£1.13 £0.94
