BC 241 H - Oleo-Mac Hedge Trimmer Hedgetrimmer Diagram

Name: BC 241 H - Oleo-Mac Hedge Trimmer Hedgetrimmer Diagram
SKU: bc_241_h_hedgetrimmer-group
Price: 0.9 GBP
Availability: InStock

Part No. bc_241_h_hedgetrimmer-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

BC 241 H - Oleo-Mac Hedge Trimmer Hedgetrimmer Diagram

Description

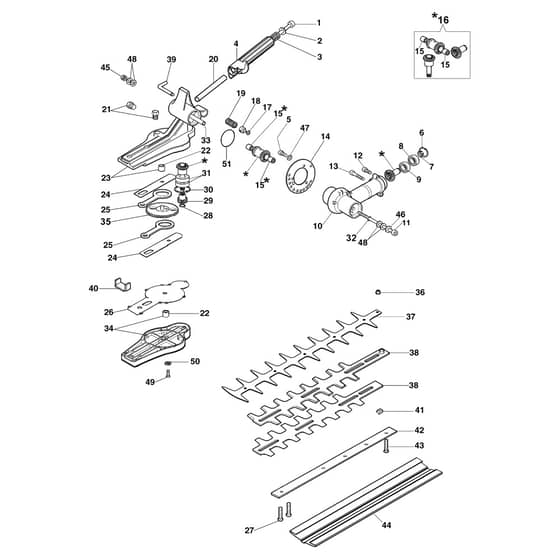

Oleo-Mac BC 241 H Parts Diagram

	Part No.	Details
1	EF3901061 Available to backorder	Screw	£9.36 £7.80
3	EF58050016 Available to backorder	Spring	£3.01 £2.51
4	EF58050018 Available to backorder	Handle	£3.01 £2.51
5	EF3901062R Available to backorder	Screw	£1.08 £0.90
6	EF3025027 Available to backorder	Snap Ring	£1.08 £0.90
7	EF3024009R Available to backorder	Ring	£3.01 £2.51
10	EF58050048 Available to backorder	Case	£34.68 £28.90
11	EF3901060 Available to backorder	Screw	£5.64 £4.70
13	EF3901016 Available to backorder	Screw	£1.08 £0.90
14	EF58050005 Available to backorder	Disk	£3.01 £2.51
15	EF3037007 Available to backorder	Bearing	£9.00 £7.50
16	EF58050058A Available to backorder	Bevel Gear Set	£120.00 £100.00
17	EF3024006 Available to backorder	Snap Ring	£1.08 £0.90
18	EF58050014 Available to backorder	Bushing	£3.01 £2.51
19	EF58050015 Available to backorder	Spring	£1.08 £0.90
20	EF58050017 Available to backorder	Pipe	£5.64 £4.70
21	EF61040071R Available to backorder	Oil Cap	£3.84 £3.20
22	EF3067006R Available to backorder	Bushing	£2.00 £1.67
23	EF58052016R Available to backorder	Gear Housing	£44.52 £37.10
24	EF58040057 Available to backorder	Plate	£3.01 £2.51
25	EF58040227AR Available to backorder	Connecting Rod	£9.00 £7.50
26	EF58050004R Available to backorder	Gasket	£4.32 £3.60
27	EF3801057 In stock	Screw	£2.09 £1.74
28	EF3024008 Available to backorder	Snap Ring	£1.08 £0.90
30	EF3025020 Available to backorder	Snap Ring	£1.08 £0.90
32	EF008200282R Available to backorder	O-Ring	£2.66 £2.22
33	EF58050012 Available to backorder	Pipe	£18.36 £15.30
34	EF58052015R Available to backorder	Cover	£25.92 £21.60
35	EF58040101 Available to backorder	Chain Sprocket	£91.32 £76.10
36	EF3980014R Available to backorder	Nut	£2.00 £1.67
37	EF61370464R Available to backorder	Guard	£14.04 £11.70
38	EF58050021R In stock	Blade	£60.36 £50.30
39	EF58050013A Available to backorder	Pin	£10.08 £8.40
41	EF58040051 Available to backorder	Spacer	£3.84 £3.20
42	EF58050023 Available to backorder	Support	£14.40 £12.00
43	EF3979021R Available to backorder	Screw	£3.84 £3.20
44	EF61370463R Available to backorder	Guard	£21.00 £17.50
45	EF3914003R Available to backorder	Self-Locking Nut	£1.15 £0.96
46	EF3918005R Available to backorder	Washer	£2.66 £2.22
47	EF3819006R Available to backorder	Washer	£1.58 £1.32
48	EF3057005 Available to backorder	Washer	£2.88 £2.40
49	EF3960074 Available to backorder	Screw	£2.83 £2.36
50	EF3819005 Available to backorder	Washer	£1.08 £0.90
52	EF099900090R Available to backorder	Ring	£5.64 £4.70
