BC 240 D (Ø24/26) - Oleo-Mac Multi Function Tool Hedgetrimmer Diagram

Description

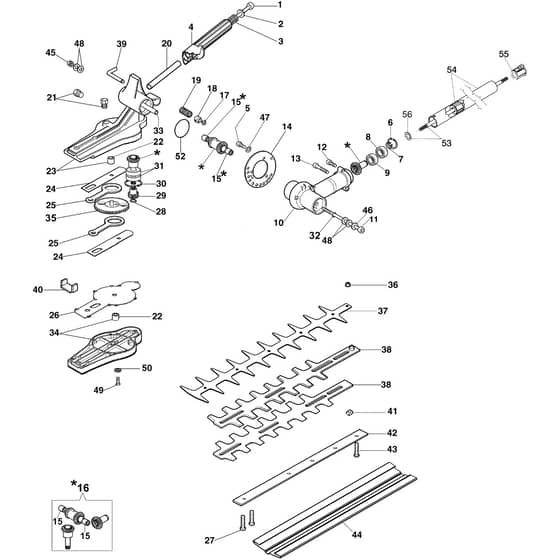

Oleo-Mac BC 240 D (Ø24/26) Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	EF3901061 Available to backorder	Screw	£9.04 £7.53
3	EF58050016 Available to backorder	Spring	£2.76 £2.30
4	EF58050018 Available to backorder	Handle	£2.76 £2.30
5	EF3901062R Available to backorder	Screw	£0.90 £0.75
6	EF3025018R Available to backorder	Seeger	£1.84 £1.53
7	EF3024010R Available to backorder	Snap Ring	£0.90 £0.75
8	EF3035230 Available to backorder	Bearing	£17.02 £14.18
9	EF3034008R Available to backorder	Bearing	£14.74 £12.28
10	EF58050003B Available to backorder	Case	£23.04 £19.20
11	EF3901060 Available to backorder	Screw	£5.46 £4.55
12	EF3901008R Available to backorder	Screw	£0.90 £0.75
13	EF3901016 Available to backorder	Screw	£0.90 £0.75
14	EF58050005 Available to backorder	Disk	£2.76 £2.30
15	EF3037007 Available to backorder	Bearing	£8.74 £7.28
16	EF58050057A Available to backorder	Bevel Gear Set	£120.00 £100.00
17	EF3024006 Available to backorder	Snap Ring	£0.90 £0.75
18	EF58050014 Available to backorder	Bushing	£2.76 £2.30
19	EF58050015 Available to backorder	Spring	£0.90 £0.75
20	EF58050017 Available to backorder	Pipe	£5.44 £4.53
21	EF61040071R Available to backorder	Oil Cap	£3.74 £3.12
22	EF3067006R Available to backorder	Bushing	£1.84 £1.53
23	EF58052016R Available to backorder	Gear Housing	£42.98 £35.82
24	EF58040057 Available to backorder	Plate	£2.76 £2.30
25	EF58040227AR Available to backorder	Connecting Rod	£8.74 £7.28
26	EF58050004R Available to backorder	Gasket	£4.20 £3.50
27	EF3801057 In stock	Screw	£1.84 £1.53
28	EF3024008 Available to backorder	Snap Ring	£0.90 £0.75
30	EF3025020 Available to backorder	Snap Ring	£0.90 £0.75
32	EF008200282R Available to backorder	O-Ring	£2.44 £2.03
33	EF58050012 Available to backorder	Pipe	£17.76 £14.80
34	EF58052015R Available to backorder	Cover	£25.00 £20.83
35	EF58040101 Available to backorder	Chain Sprocket	£88.28 £73.57
36	EF3980014R Available to backorder	Nut	£1.84 £1.53
37	EF61370464R Available to backorder	Guard	£13.58 £11.32
38	EF58050021R In stock	Blade	£58.30 £48.58
39	EF58050013A Available to backorder	Pin	£9.80 £8.17
41	EF58040051 Available to backorder	Spacer	£3.68 £3.07
42	EF58050023 Available to backorder	Support	£13.94 £11.62
43	EF3979021R Available to backorder	Screw	£3.68 £3.07
44	EF61370463R Available to backorder	Guard	£20.32 £16.93
46	EF3918005R Available to backorder	Washer	£2.44 £2.03
47	EF3819006R Available to backorder	Washer	£1.32 £1.10
48	EF3057005 Available to backorder	Washer	£2.64 £2.20
49	EF3960074 Available to backorder	Screw	£2.60 £2.17
50	EF3819005 Available to backorder	Washer	£0.90 £0.75
52	EF099900090R Available to backorder	Ring	£5.44 £4.53
53	EF61370497 Available to backorder	Complete Drive Shaft Ø7	£16.86 £14.05
54	EF61282061R Available to backorder	Tube Ø26	£27.20 £22.67
55	EF3032027R Available to backorder	Rivet	£1.14 £0.95
56	EF3045034R Available to backorder	Retainer Washer	£1.08 £0.90
