BC 240 D (Ø24/24) - Oleo-Mac Multi Function Tool Starter assy and clutch Diagram

Name: BC 240 D (Ø24/24) - Oleo-Mac Multi Function Tool Starter assy and clutch Diagram
SKU: bc_240_d_24_24_starter_assy_and_clutch-group
Price: 0.48 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

BC 240 D (Ø24/24) - Oleo-Mac Multi Function Tool Starter assy and clutch Diagram

Description

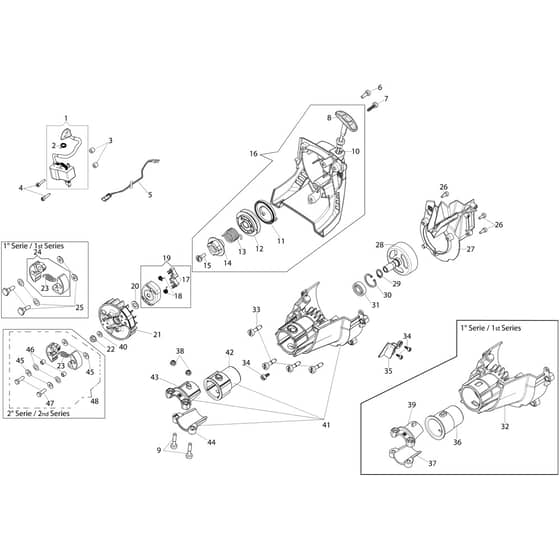

Oleo-Mac BC 240 D (Ø24/24) Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	EF2501002R Available to backorder	Ignition Coil	£90.34 £75.28
2	EF50050127 Available to backorder	Spring	£0.90 £0.75
3	EF50160218BR Available to backorder	Spacer	£3.30 £2.75
4	EF3891020R Available to backorder	Screw	£0.82 £0.68
5	EF61370059R Available to backorder	Cable	£9.20 £7.67
7	EF3893060R Available to backorder	Screw	£0.98 £0.82
8	EF61370082BR Available to backorder	Handle	£2.70 £2.25
10	EF61370024R Available to backorder	Rope	£3.72 £3.10
11	EF61070036R Available to backorder	Starter Spring	£11.98 £9.98
12	EF61370022AR Available to backorder	Starter Pulley	£12.76 £10.63
13	EF61370237R Available to backorder	Spring	£1.84 £1.53
14	EF61370023AR Available to backorder	Sprocket	£4.02 £3.35
15	EF50160024 Available to backorder	Screw	£3.68 £3.07

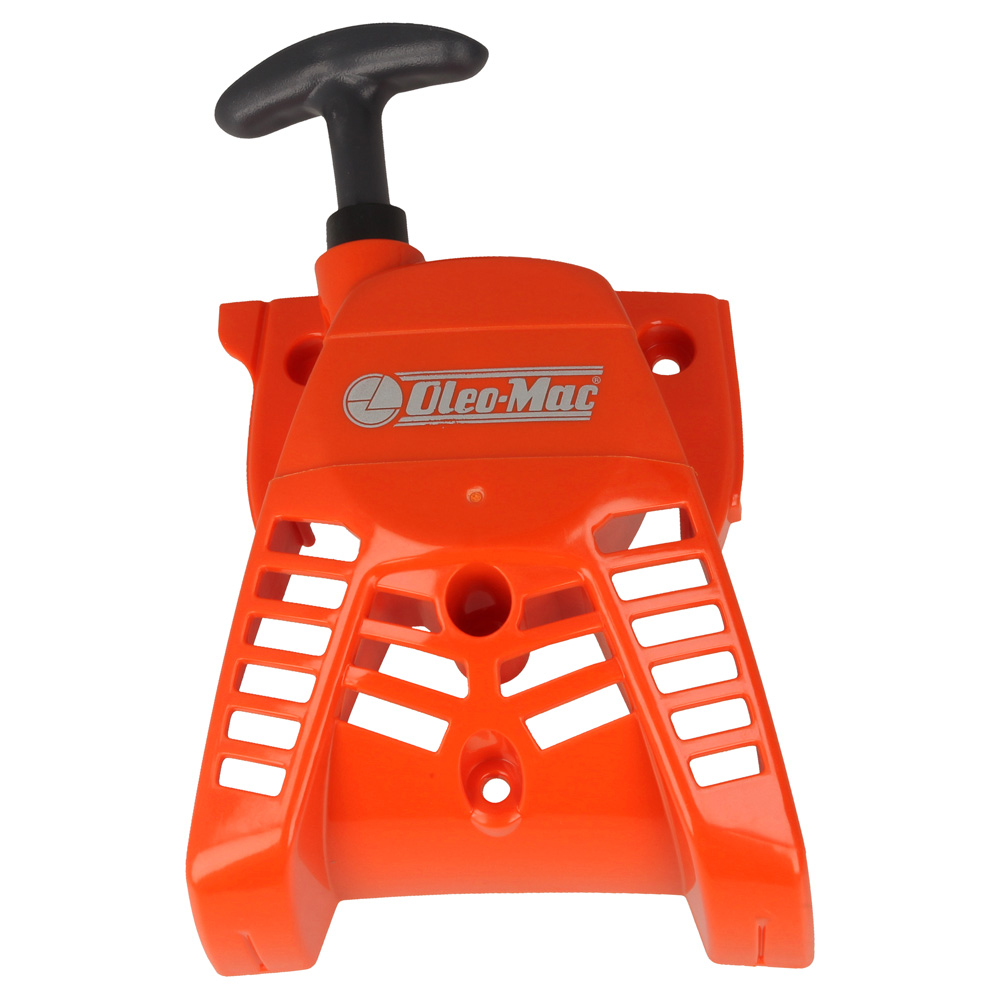

16	EF61370233AR Available to backorder	Starter Assy	£47.58 £39.65
17	EF58070219R Available to backorder	Pawl	£1.84 £1.53
18	EF61070039R Available to backorder	Spring	£1.84 £1.53
19	EF58070221R Available to backorder	Clutch Driver	£9.90 £8.25
20	EF3064034 Available to backorder	Washer	£0.90 £0.75
21	EF58070133R Available to backorder	Flywheel	£50.74 £42.28
22	EF3912014R Available to backorder	Nut	£0.60 £0.50
23	EF61070090R Available to backorder	Spring	£4.02 £3.35
24	EF61070091AR In stock	Clutch	£44.42 £37.02
25	EF61370257 Available to backorder	Kit Pin + Belleville Washer + Spacer Ring	£5.44 £4.53
27	EF61370090R Available to backorder	Flange	£6.98 £5.82
28	EF61170050CR Available to backorder	Clutch Drum	£51.40 £42.83
29	EF3024012R In stock	Seeger	£1.28 £1.07
30	EF3025019 Available to backorder	Ring	£0.90 £0.75
31	EF3035023R Available to backorder	Bearing	£15.84 £13.20
33	EF3891046R Available to backorder	Screw	£2.44 £2.03
34	EF3893009R Available to backorder	Chain Tensioner Screw	£0.58 £0.48
36	EF61370030R Available to backorder	Sleeve	£13.02 £10.85
38	EF3914003R Available to backorder	Self-Locking Nut	£0.96 £0.80
40	EF3819031R Available to backorder	Washer	£0.64 £0.53
41	EF61370556 Available to backorder	Starter Case Set SN 9936420001	£51.64 £43.03
42	EF61370527R Available to backorder	Sleeve SN 9936420001	£10.90 £9.08
46	EF61372171 Available to backorder	Set Spacer SN 9337120001	£3.96 £3.30
47	EF015000044R Available to backorder	Screw SN 9337120001	£2.14 £1.78
48	EF61370557 Available to backorder	Complete Clutch SN 9337120001	£38.84 £32.37
