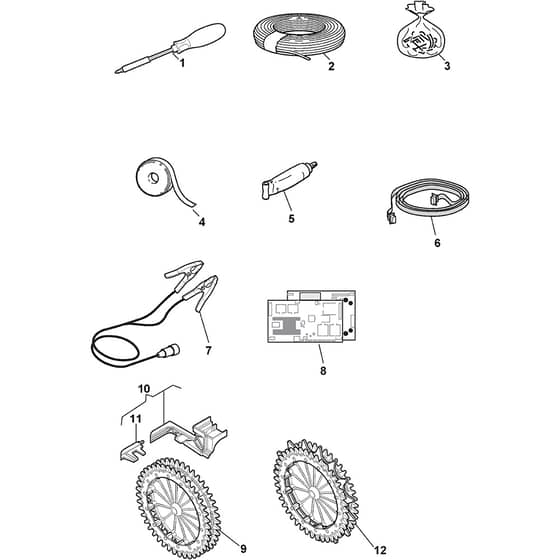

Autoclip 720 S - 2015-2016 - 2R7007058/S15 - Stiga Robot Mower Accessories Diagram

Name: Autoclip 720 S - 2015-2016 - 2R7007058/S15 - Stiga Robot Mower Accessories Diagram
SKU: autoclip_720_s_2r7007058_s15_accessories-group
Price: 3.58 GBP
Availability: InStock

Part No. autoclip_720_s_2r7007058_s15_accessories-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Autoclip 720 S - 2015-2016 - 2R7007058/S15 - Stiga Robot Mower Accessories Diagram

Description

Stiga Autoclip 720 S Parts Diagram

Product Name - Autoclip 720 S

Model Year - 2015-2016

Model Type - Autoclip 720 S

Art.N - 2R7007058/S15

Engine Model -

	Part No.	Details
1	MO112600138/0 Available to backorder	Screwdriver	£27.62 £23.02
2	MO1126-9147-01 Available to backorder	Cable MT 100	£119.28 £99.40
2	MO1127-0003-01 Available to backorder	Cable MT 1000	£807.23 £672.69
2	MO1126-9108-01 Available to backorder	Cable MT 300	£228.88 £190.73
3	MO1126-9170-01 Available to backorder	Nails (100 Pcs)	£27.73 £23.11
3	MO1126-9106-01 Available to backorder	Nails (200 Pcs)	£40.24 £33.53
4	MO1126-9148-01 Available to backorder	Tape	£59.65 £49.71
5	MO1126-1177-01 Available to backorder	Grease 200 Gr	£47.17 £39.31
6	MO1126-9104-01 Available to backorder	Programming Cable	£34.69 £28.91
7	MO1126-1490-01 Available to backorder	Winter Garaging Kit	£110.94 £92.45
8	MO1126-9142-01 Available to backorder	Gprs Board	£457.70 £381.42

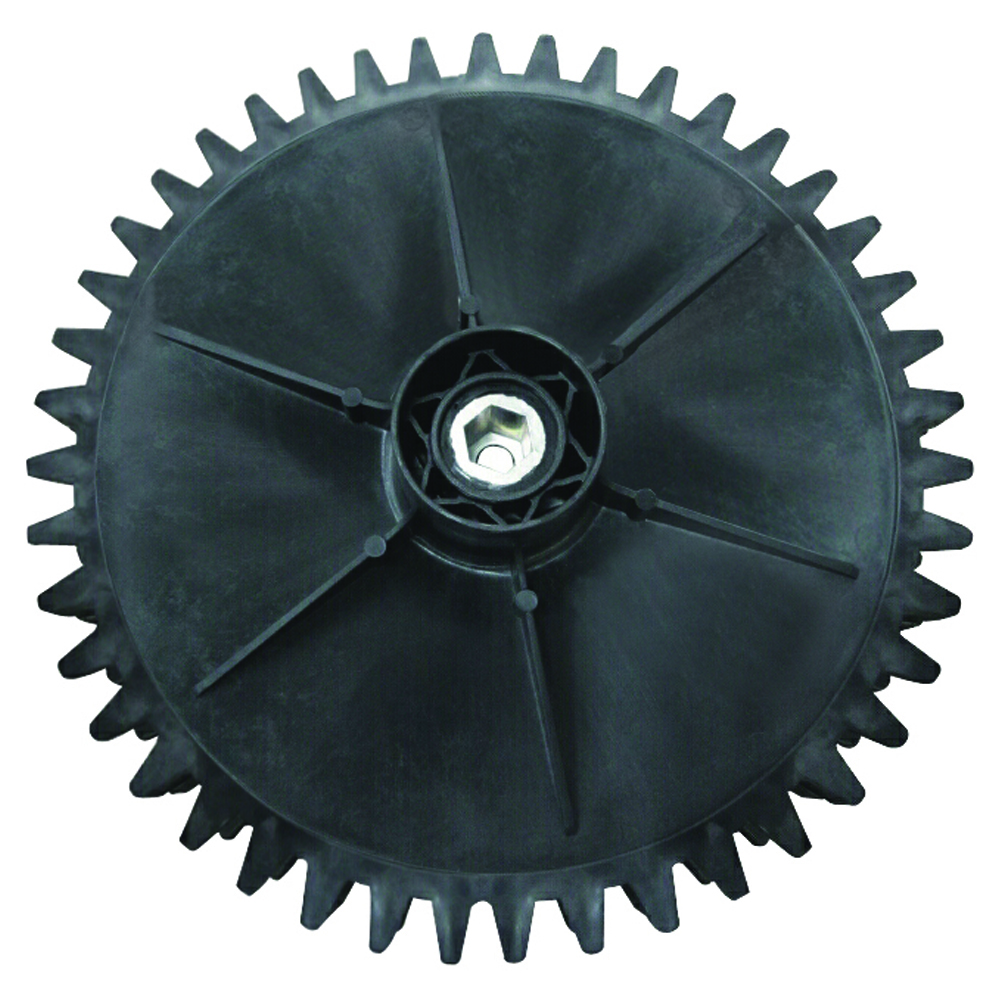

9	MO1126-9116-01 Available to backorder	Toothed Wheel	£87.38 £72.82
10	MO112600134/0 Available to backorder	Spindle-Rh	£19.70 £16.42
10	MO112600135/0 Available to backorder	Spindle-Lh	£19.70 £16.42
11	MO112600136/0 Available to backorder	Rubber	£4.30 £3.58

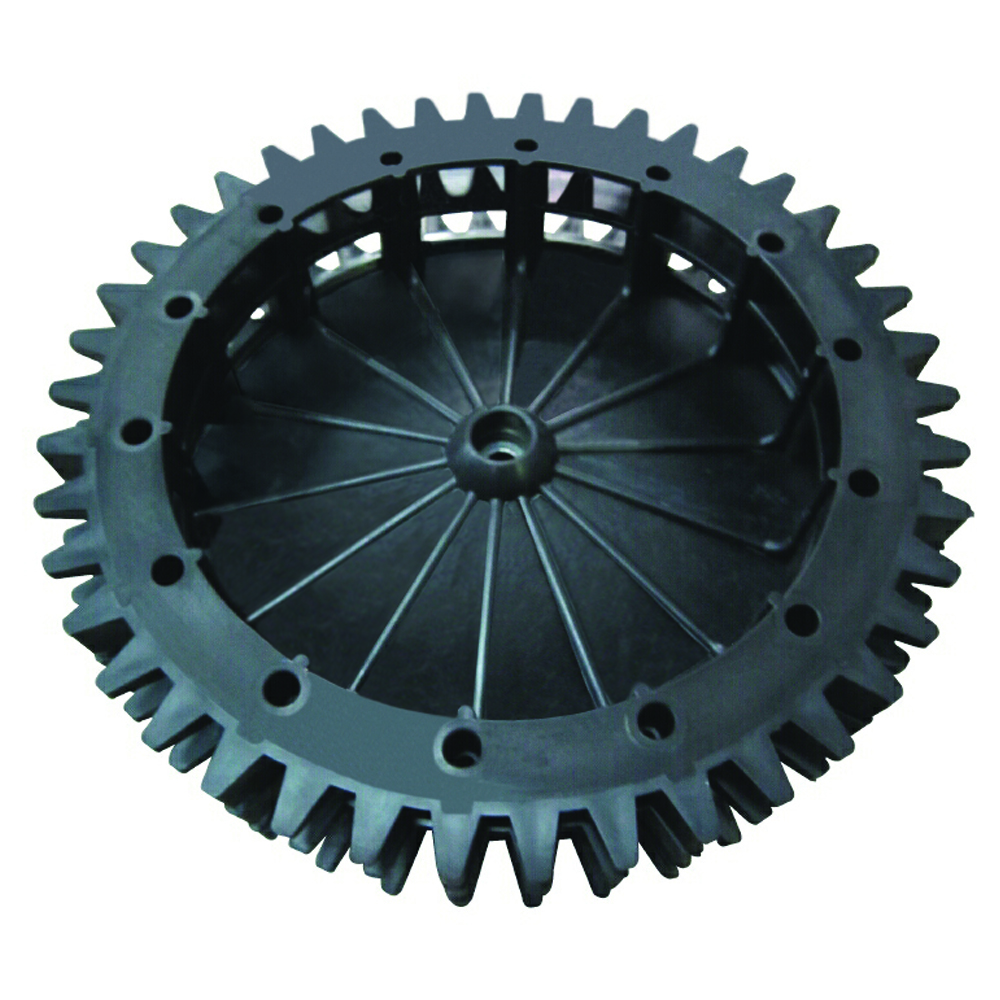

12	MO1126-9129-01 Available to backorder	Hooked Wheel	£115.14 £95.95
