Autoclip 550 SG - 2018-2021 - 2R5007658/ST1 - Stiga Robot Mower Motor Transmission Diagram

Name: Autoclip 550 SG - 2018-2021 - 2R5007658/ST1 - Stiga Robot Mower Motor Transmission Diagram
SKU: autoclip_550_sg_2r5007658_st1_motor_transmission-group
Price: 0.93 GBP
Availability: InStock

Part No. autoclip_550_sg_2r5007658_st1_motor_transmission-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Autoclip 550 SG - 2018-2021 - 2R5007658/ST1 - Stiga Robot Mower Motor Transmission Diagram

Description

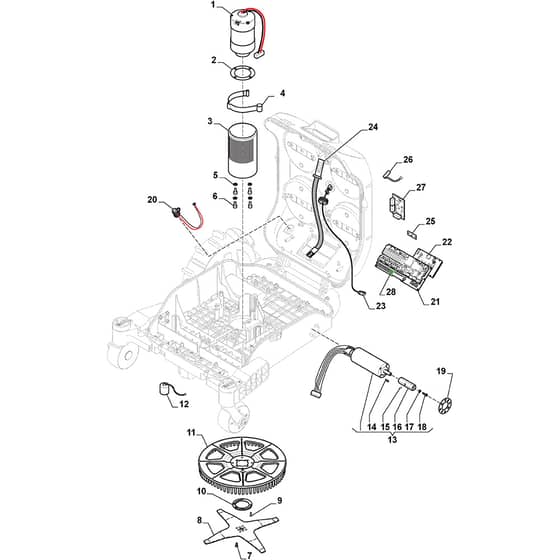

Stiga Autoclip 550 SG Parts Diagram

Product Name - Autoclip 550 SG

Model Year - 2018-2021

Model Type - 8250ES0

Art.N - 2R5007658/ST1

Engine Model -

	Part No.	Details
1	MO112600412/1 Available to backorder	Group Cutting Motor	£332.88 £277.40
2	MO1126-7010-01 Available to backorder	Gasket	£1.52 £1.27
3	MO112600124/0 Available to backorder	Motor Support	£25.87 £21.56
4	MO112600106/1 Available to backorder	Elastic Plate	£83.22 £69.35
5	MO1126-1445-01 Available to backorder	Washer	£1.38 £1.15
6	MO1126-1446-01 Available to backorder	Screw	£1.33 £1.11
7	MO1126-1021-01 Available to backorder	Screw	£1.18 £0.98
8	MO1126-9145-01 Available to backorder	Blade	£52.09 £43.41
9	MO1126-1351-01 Available to backorder	Screw	£1.18 £0.98
10	MO112600122/0 Available to backorder	Support	£20.53 £17.11
11	MO112600277/0 Available to backorder	Blade Guard	£33.30 £27.75
12	MO112600270/0 Available to backorder	Coil	£80.45 £67.04
13	MO112600417/1 Available to backorder	Wheel Engine	£436.88 £364.07
14	MO1126-1167-01 Available to backorder	Key	£1.52 £1.27
15	MO1126-1355-01 Available to backorder	Grub Screw	£1.33 £1.11
16	MO112600278/0 Available to backorder	Reduction	£12.98 £10.82
17	MO1126-1430-01 Available to backorder	Washer	£1.12 £0.93
18	MO1126-1431-01 Available to backorder	Screw	£1.12 £0.93
19	MO112600205/0 Available to backorder	Gasket	£4.58 £3.82
20	MO112600314/0 Available to backorder	Wiring Harness	£41.60 £34.67
21	MO112600336/1 Available to backorder	Motherboard	£894.61 £745.51
22	MO112600271/0 Available to backorder	Display	£312.08 £260.07
23	MO112600316/0 Available to backorder	Wiring Harness	£36.06 £30.05
24	MO112600315/0 Available to backorder	Wiring Harness	£15.28 £12.73
25	MO1126-1161-02 Available to backorder	Bump Board	£41.60 £34.67
27	MO112600272/1 Available to backorder	Connect Module	£501.97 £418.31
28	MO112600351/0 Available to backorder	Can Bus Terminal	£7.90 £6.58
30	MO112600384/0 Available to backorder	Screw	£1.66 £1.38
32	MO112600385/0 Available to backorder	Blade Guard	£43.01 £35.84
