Atco Windsor 12S - F016302442

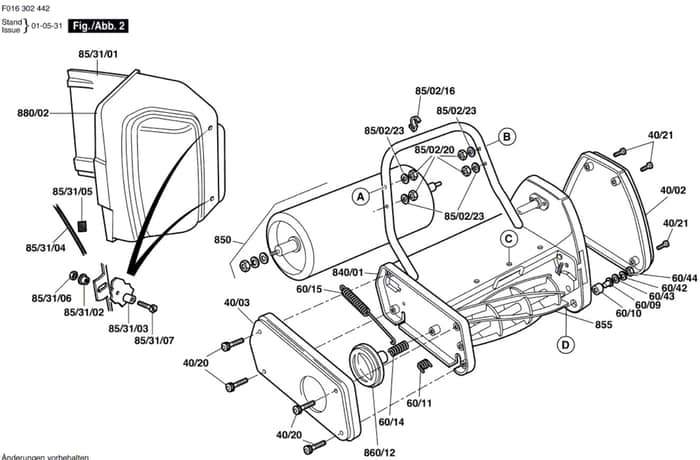

Atco Windsor 12S - F016302442 - Main Assembly

Atco Windsor 12S - F016302442 - Main Assembly

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Atco Windsor 12S - F016302442 - Main Assembly

Atco Windsor 12S - F016302442 - Main Assembly

Description

Atco Windsor 12S

Article number: F016302442

Main Assembly - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	4002		ALF016A75900 In stock	Protective Cover L/H		£141.96 £118.30
	4003		ALF016A75089 In stock	Side Cover R/H		£43.80 £36.50
	4020		ALF016A58228 In stock	Screw M6		£2.68 £2.23
	4021		ALF016A58229 In stock	Screw M6		£2.46 £2.05
	6009		ALF016A57748 Out of stock	Pin L/H		£2.74 £2.28
	6010		ALF016A57676 Out of stock	Cap		£2.74 £2.28
	6011		ALF016A57820 Out of stock	Spring		£3.60 £3.00
	6014		BQF016L62860 Out of stock	Spring		£1.18 £0.98
	6015		ALF016A57995 In stock	Spring		£10.44 £8.70
	6042		ALF016L35307 In stock	Spring Washer 5/16 Sw Se		£1.75 £1.46
	6043		ALF016L35411 Out of stock	Washer 8.5mm		£1.42 £1.18
	6044		ALF016L35457 In stock	Nut M8		£2.68 £2.23
	86012		ALF016A58656 In stock	Button		£14.64 £12.20
	88002		ALF016A57572 Out of stock	Collection Container		£58.68 £48.90
	850216		ALF016T49524 Out of stock	Cable Clamp		£3.36 £2.80
	850220		ALF016L35329 In stock	Nut M6		Was £2.46 £2.05 Special Price £1.19 £0.99
	850223		ALF016T48727 In stock	Washer		Was £2.34 £1.95 Special Price £1.19 £0.99
	853101		ALF016A57927 Out of stock	Soil Compactor		£58.84 £49.03
	853102		ALF016A58053 Out of stock	Washer		£1.49 £1.24
	853103		ALF016A58054 Out of stock	Washer		£1.18 £0.98
	853104		ALF016A58060 Out of stock	Cord		£3.42 £2.85
	853105		ALF016A58062 In stock	Spare Part		Was £2.40 £2.00 Special Price £0.72 £0.60
	853106		ALF016L59926 Out of stock	Lock Nut		£2.45 £2.04
	853107		ALF016L36835 Out of stock	Screw M5x32		£1.18 £0.98

Description

Atco Windsor 12S

Article number: F016302442

Main Assembly - Parts Diagram
